Basic Inspection

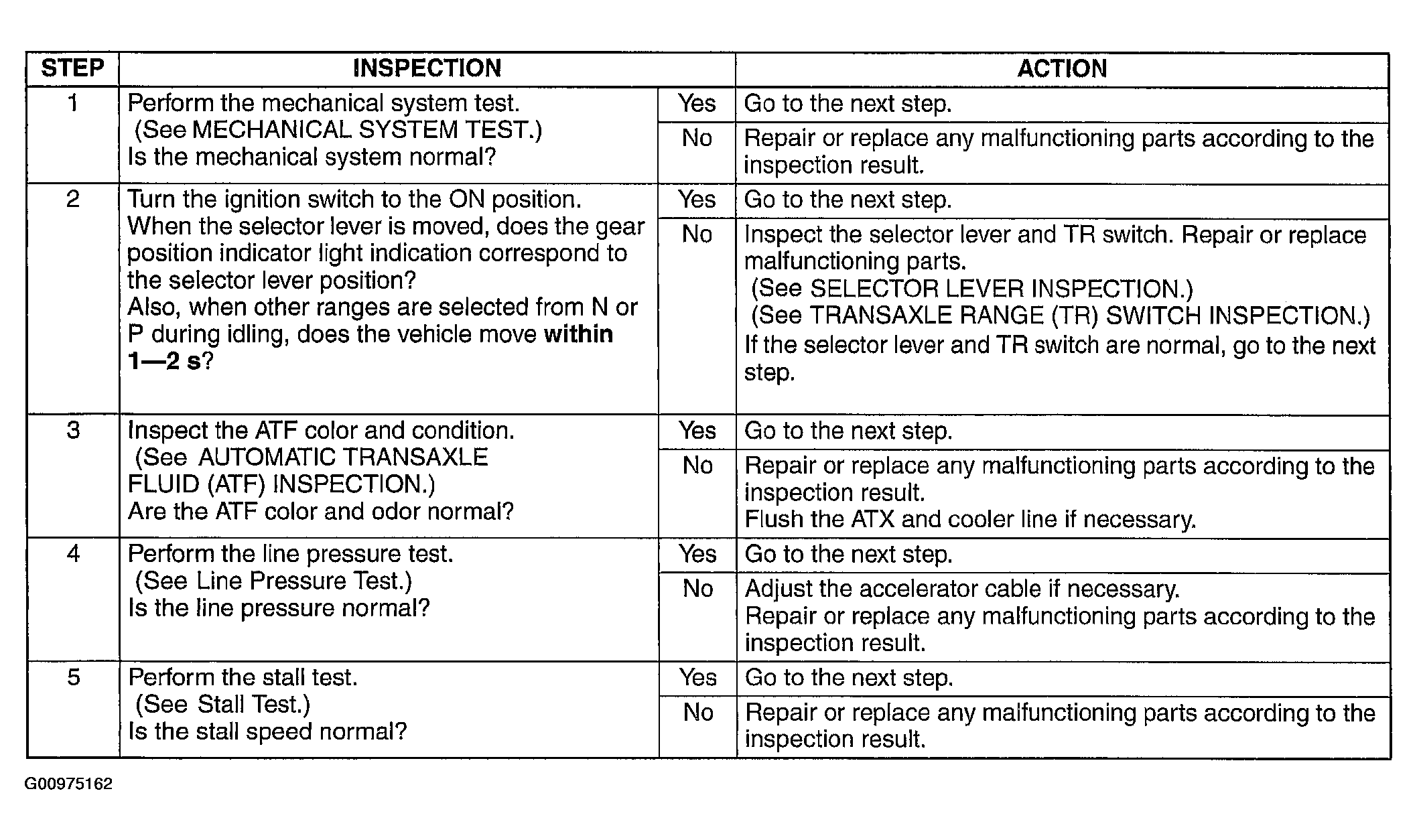

Fig 1: Basic Inspection (Steps 1-5)
G00975162Courtesy of MAZDA MOTORS CORP.

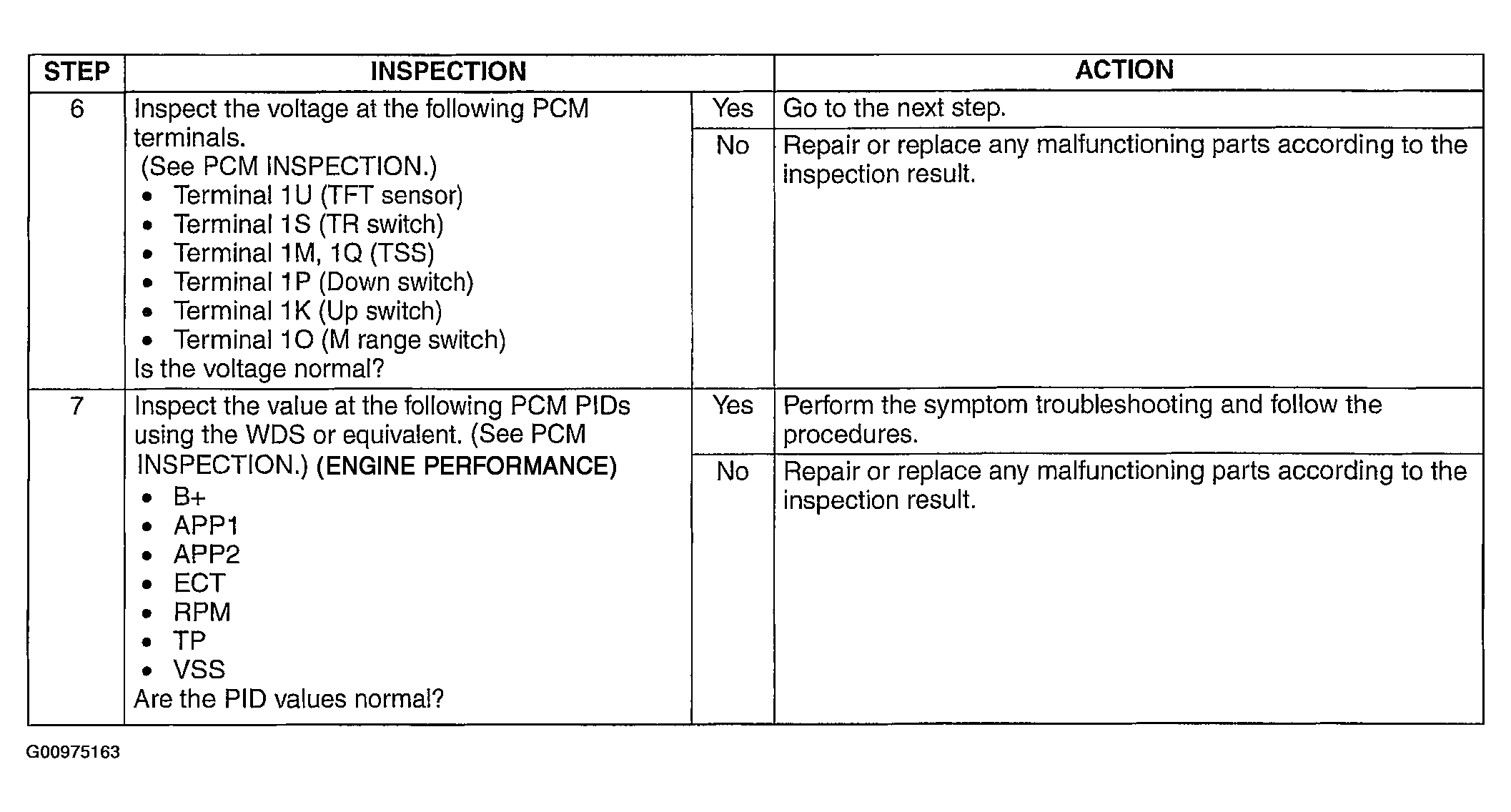

Fig 2: Basic Inspection (Steps 6-7)
G00975163Courtesy of MAZDA MOTORS CORP.
