Symptom Troubleshooting [Engine Mechanical]
>>
No. 17 Cooling System Concerns-Overheating
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
No. 17 Cooling System Concerns-Overheating: Notes

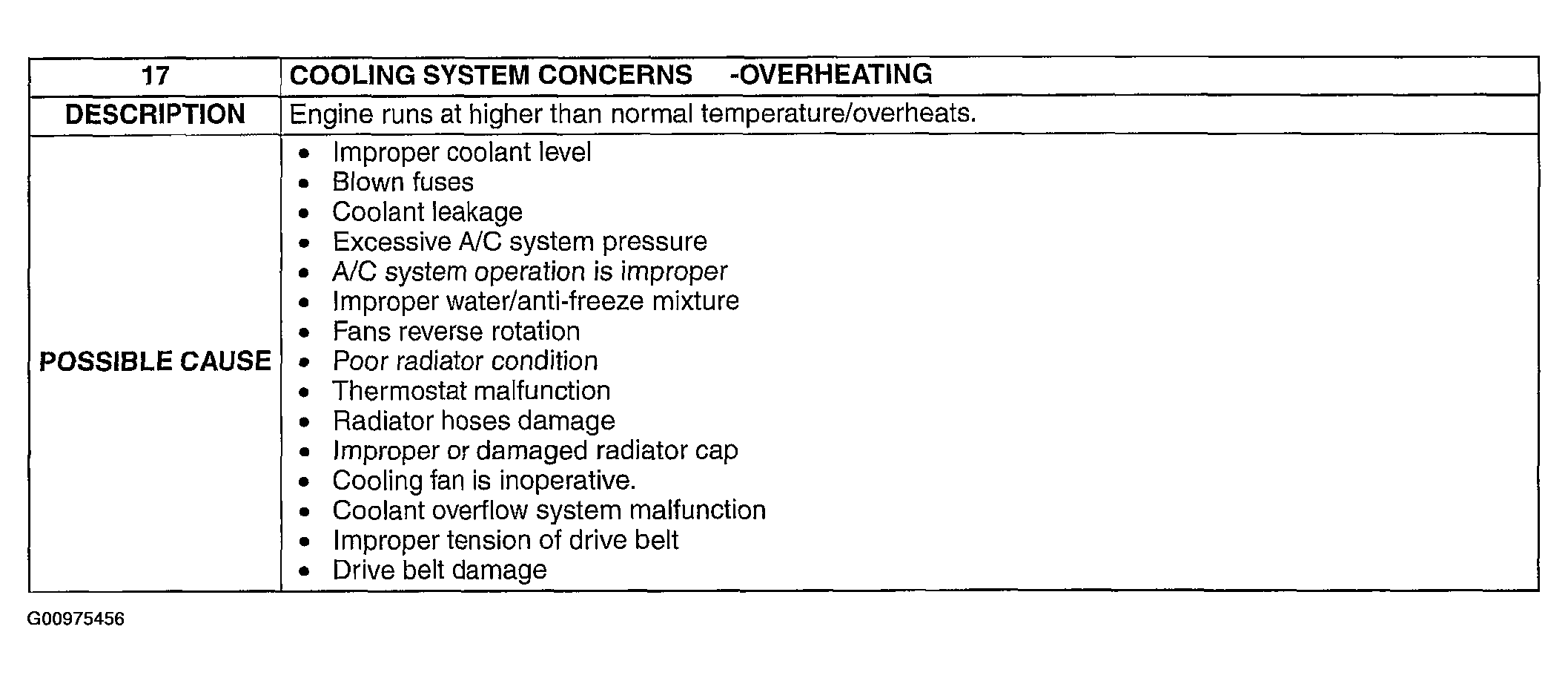

Fig 1: Symptom No. 17 Description/Possible Cause
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
