Control Rod Disassembly Note

Move the control rod in the direction of arrow.

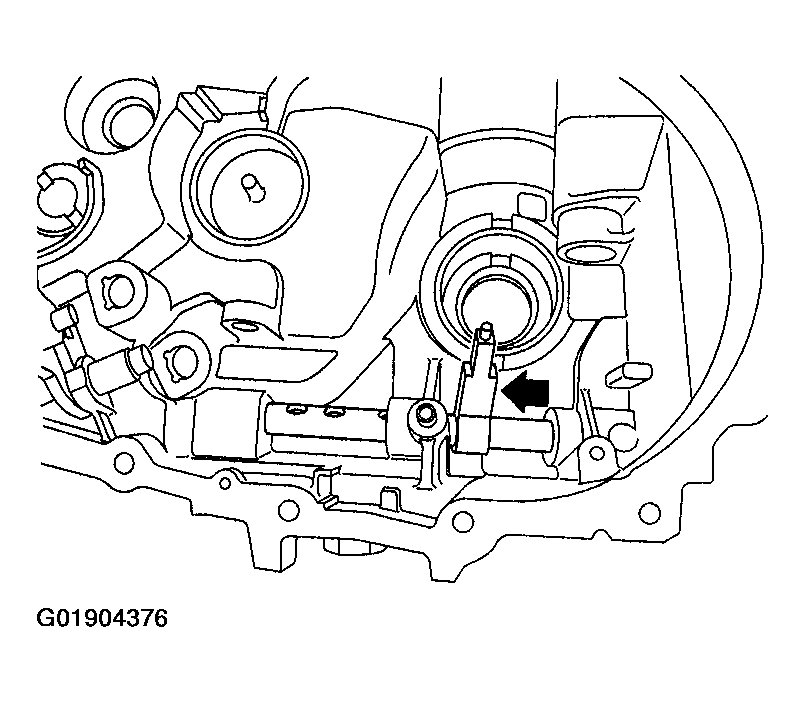

Fig 1: Moving Control Rod
Courtesy of MAZDA MOTORS CORP.
Using a flathead screwdriver and hammer, make a hole on the cap.

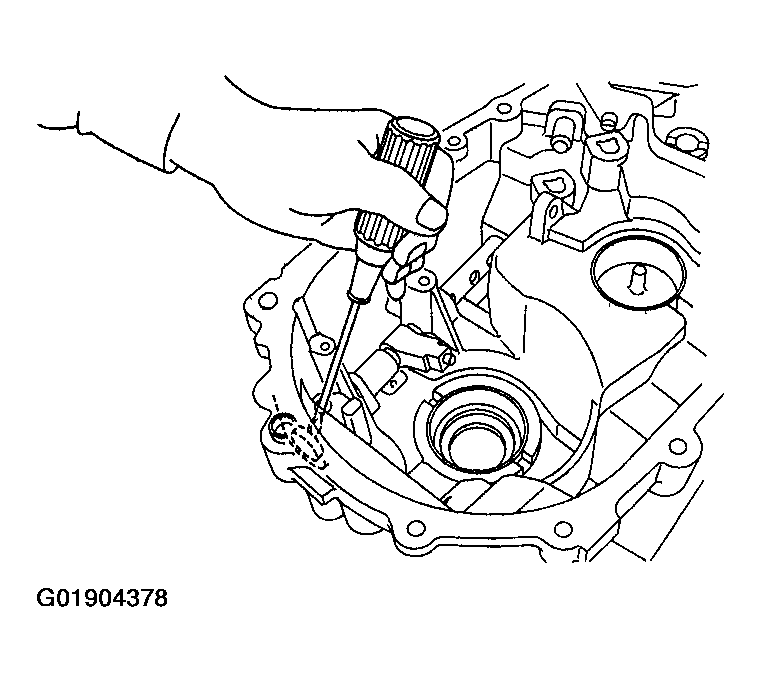

Fig 2: Punching Hole In Cap
Courtesy of MAZDA MOTORS CORP.
Remove the seal cap by putting the flathead screwdriver into the hole, made in Step 2, from the inside of the transmission.

Fig 3: Removing Seal Cap

Courtesy of MAZDA MOTORS CORP.
