Differential Assembly: Notes

  1. Assemble in the order shown in the figure.

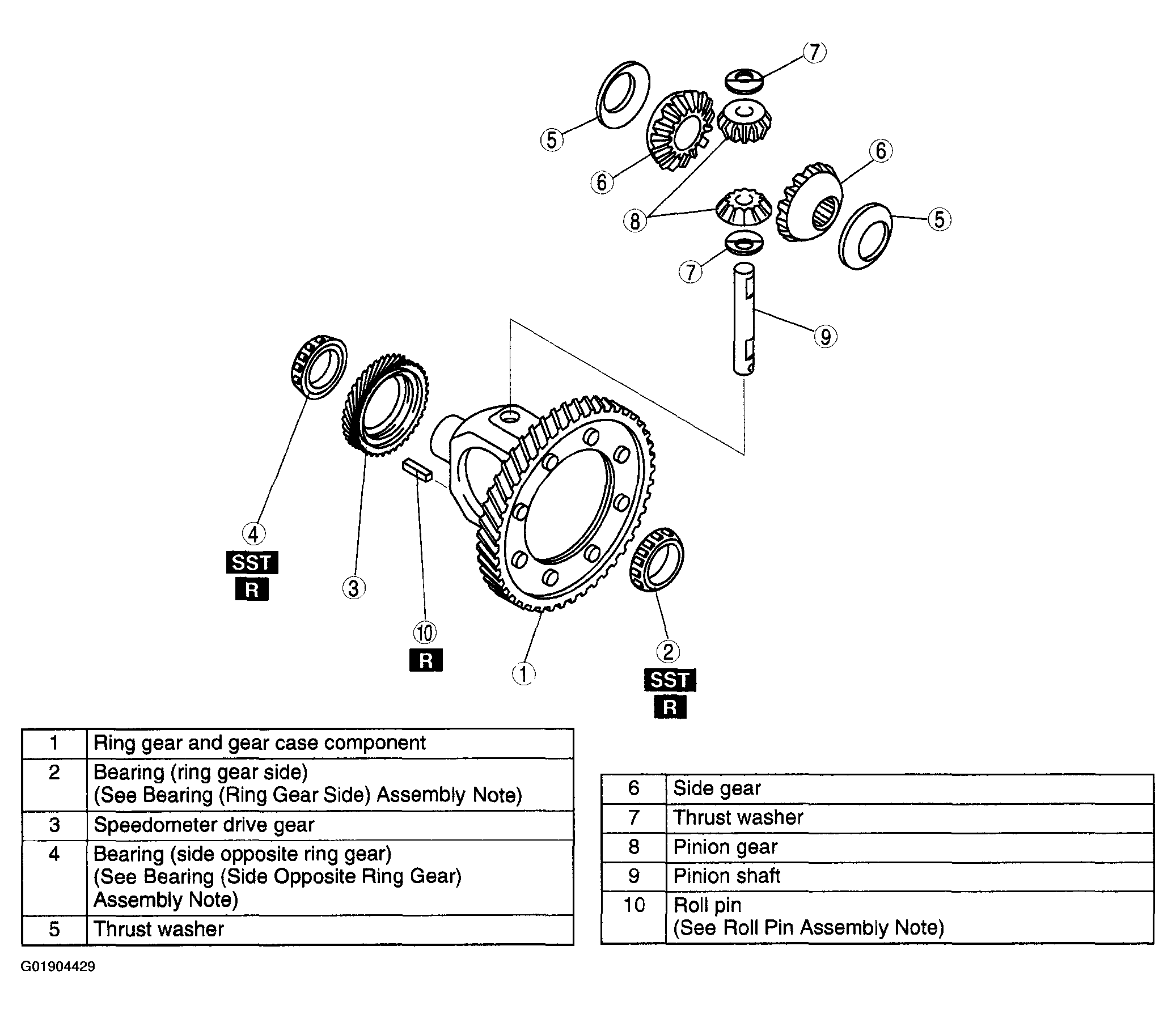

Fig 1: Assembling Differential
G01904429Courtesy of MAZDA MOTORS CORP.
