Secondary Shaft Components Disassembly: Notes

  1. Disassemble in the order shown in the figure.

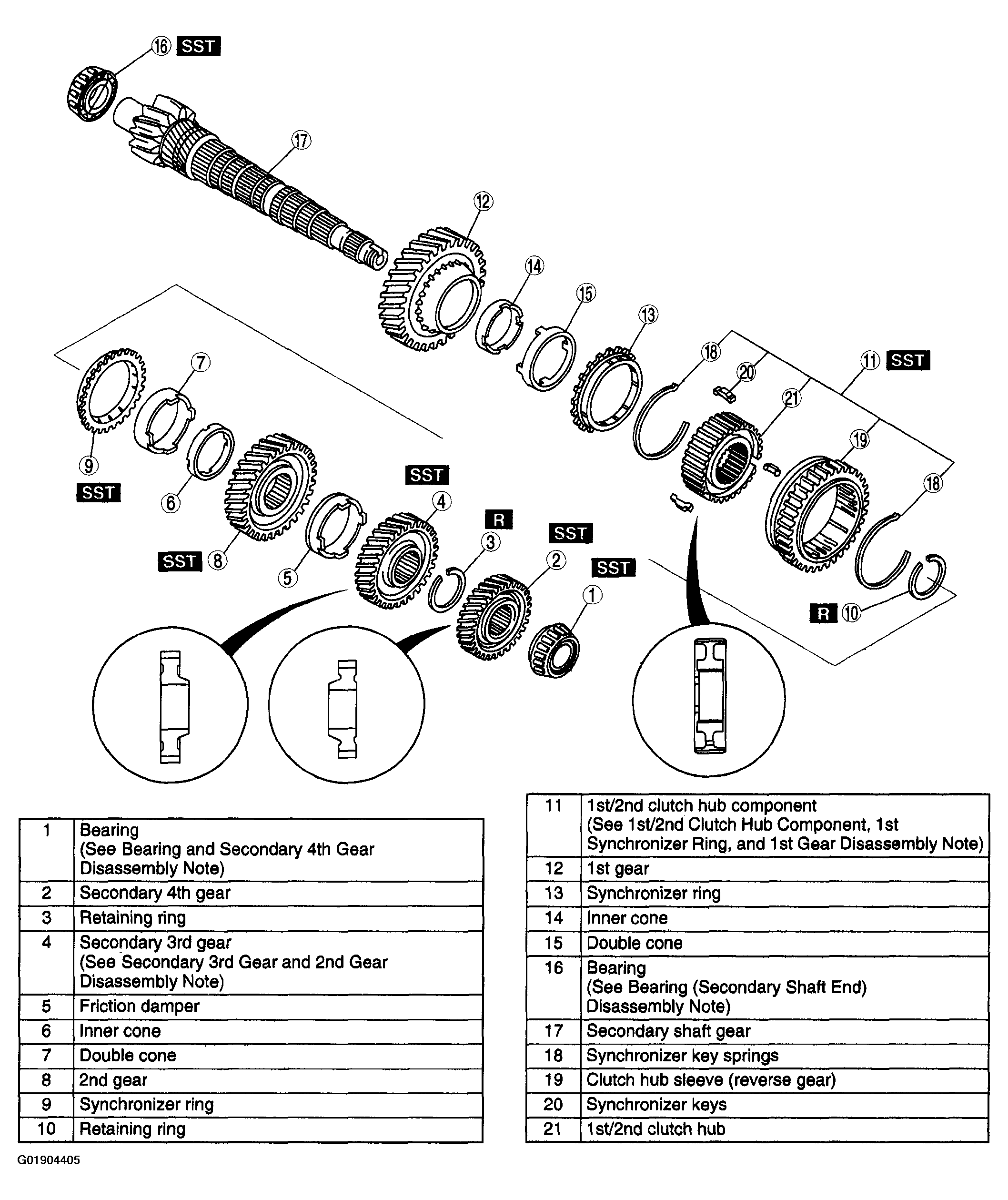

Fig 1: Disassembling Secondary Shaft Components
G01904405Courtesy of MAZDA MOTORS CORP.
