Connector Installation Note

  1. After connecting the connector, verify that the connector cover is completely pushed in.

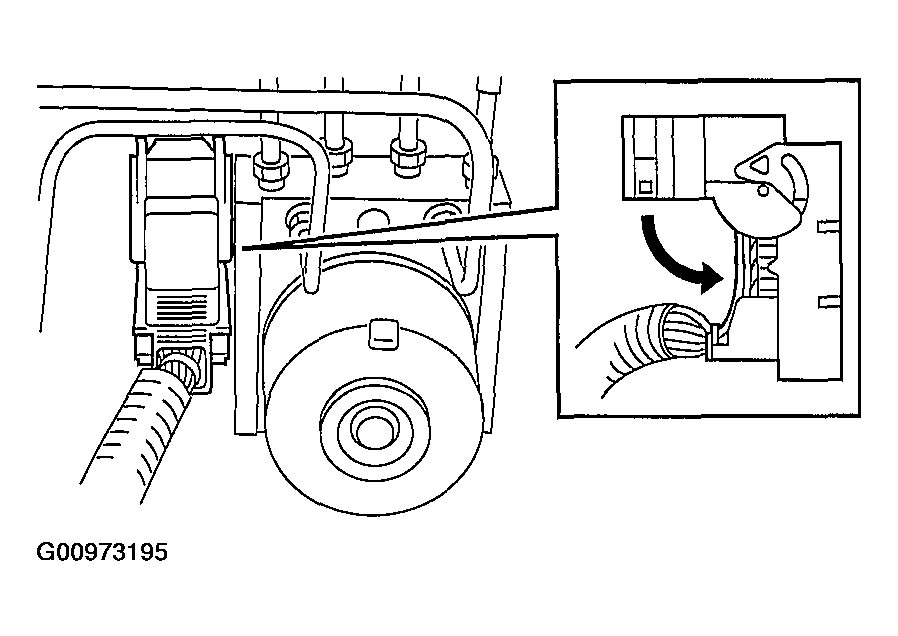

    Fig 1: Installing Connector
    G00973195Courtesy of MAZDA MOTORS CORP.
