Shift solenoid B signal

PCM terminals

1C (+)-Negative battery terminal (-)

Oscilloscope setting

5 V/DIV (Y), 5 ms/DIV (X), DC range

Vehicle condition

1GR

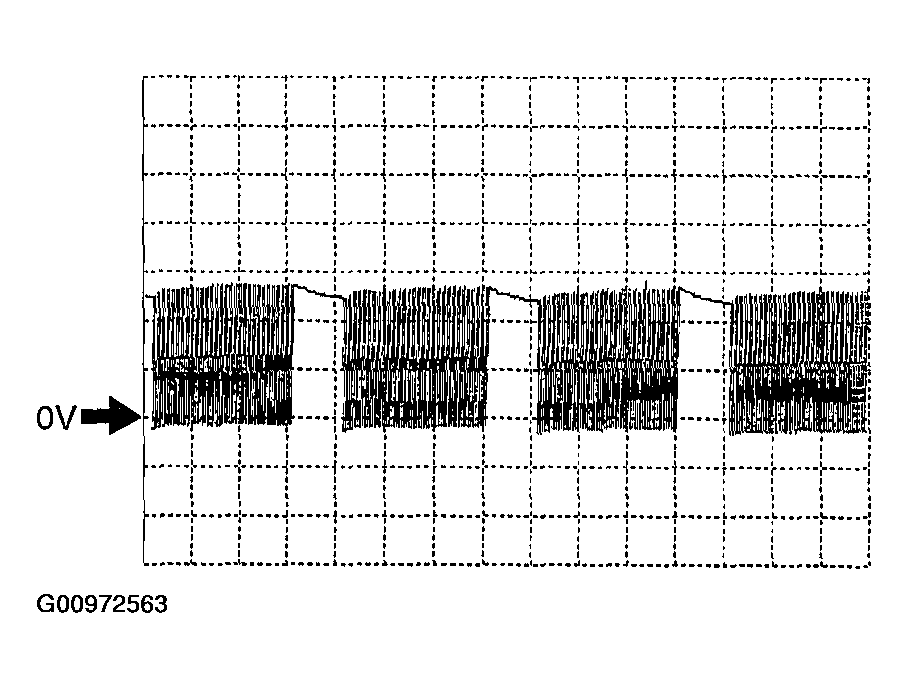

Fig 1: Inspection Graph Of Shift Solenoid B Signal Using Oscilloscope

Courtesy of MAZDA MOTORS CORP.
