Diagnostic Index

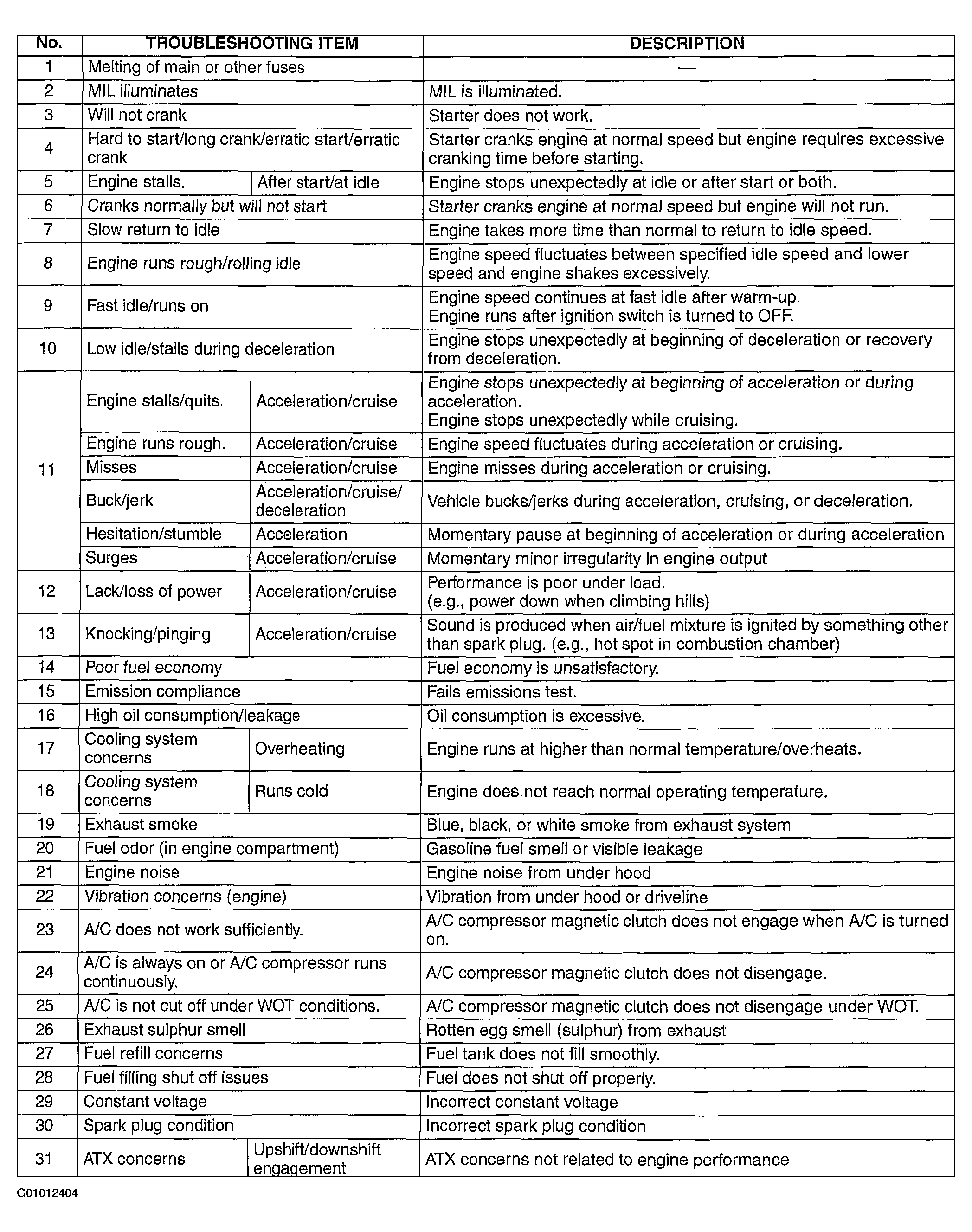

Fig 1: Engine Symptom Troubleshooting - Diagnostic Index
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
