Power Window Main Switch Inspection

  1. Remove the power window main switch. (See POWER WINDOW SWITCH REMOVAL/INSTALLATION  .)
  2. When inspecting the passenger's side and the rear, turn the power-cut switch UNLOCK.
  3. Inspect for continuity between the power window main switch terminals using an ohmmeter.
    • If not as specified, replace the power window main switch.

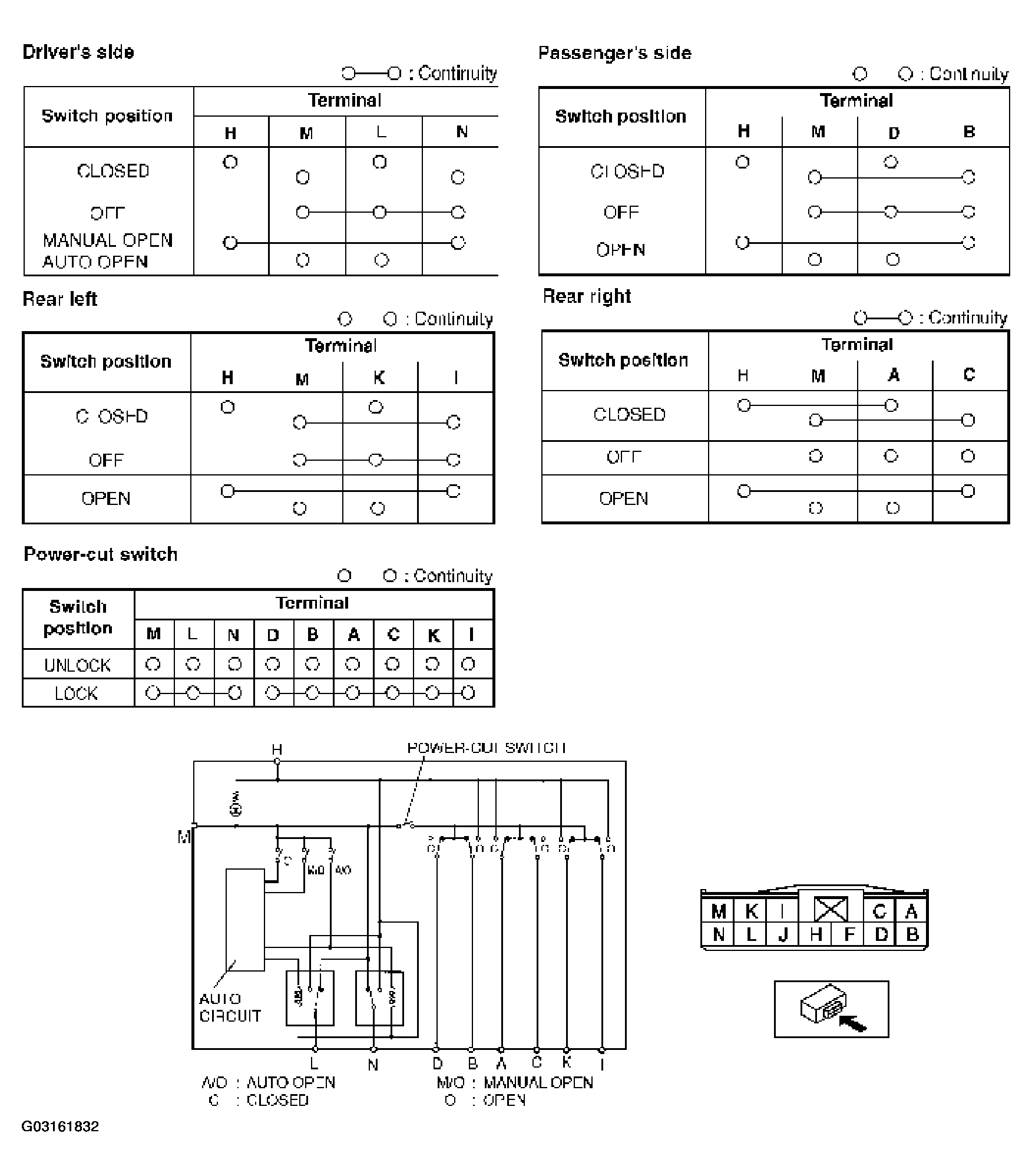

Fig 1: Identifying Window Switch Positions/Terminals Continuity Specifications
G03161832Courtesy of MAZDA MOTORS CORP.
