Power Window Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the front door trim or rear door trim.
  3. Remove the screws, then the power window switch.

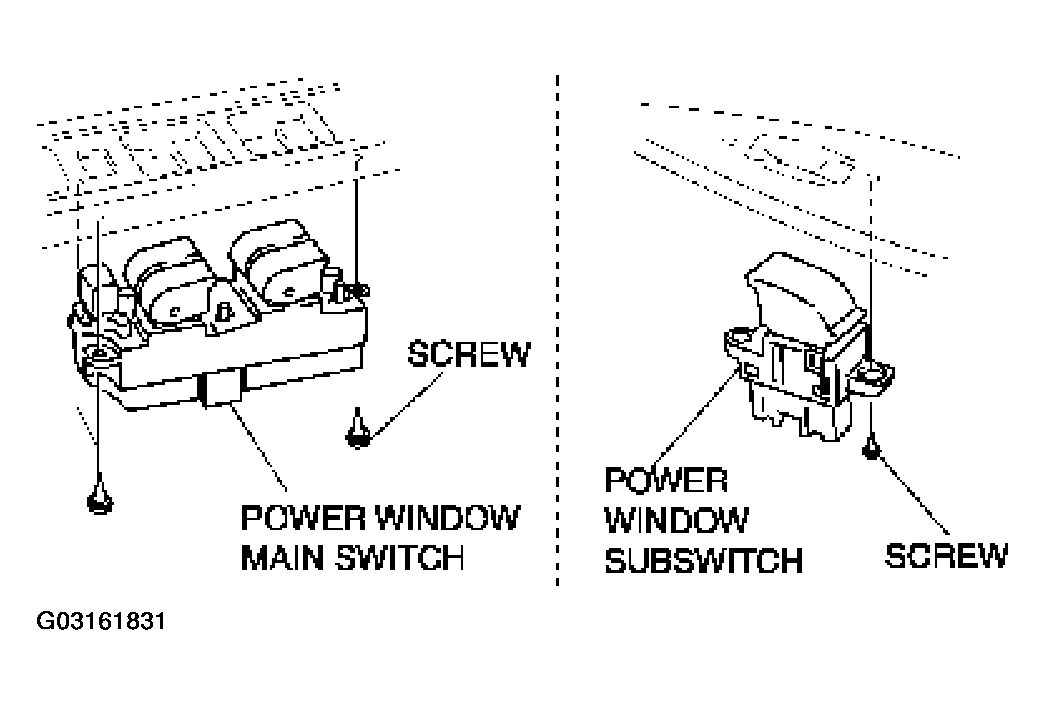

    Fig 1: Removing Power Window Switch
    G03161831Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
