AJ Engine Models

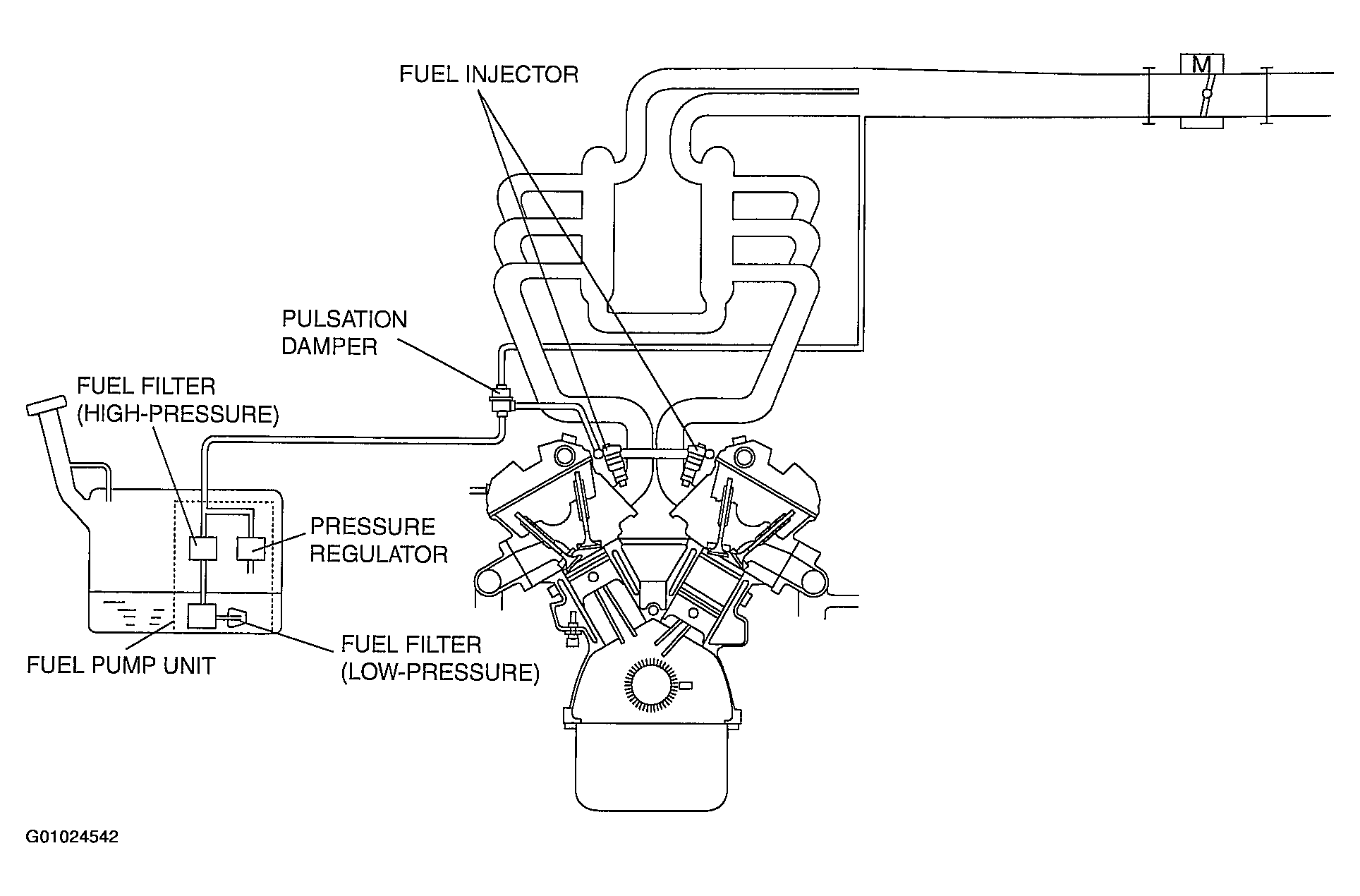

Fig 1: Fuel System Diagram [AJ]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
