L3 Engine Models

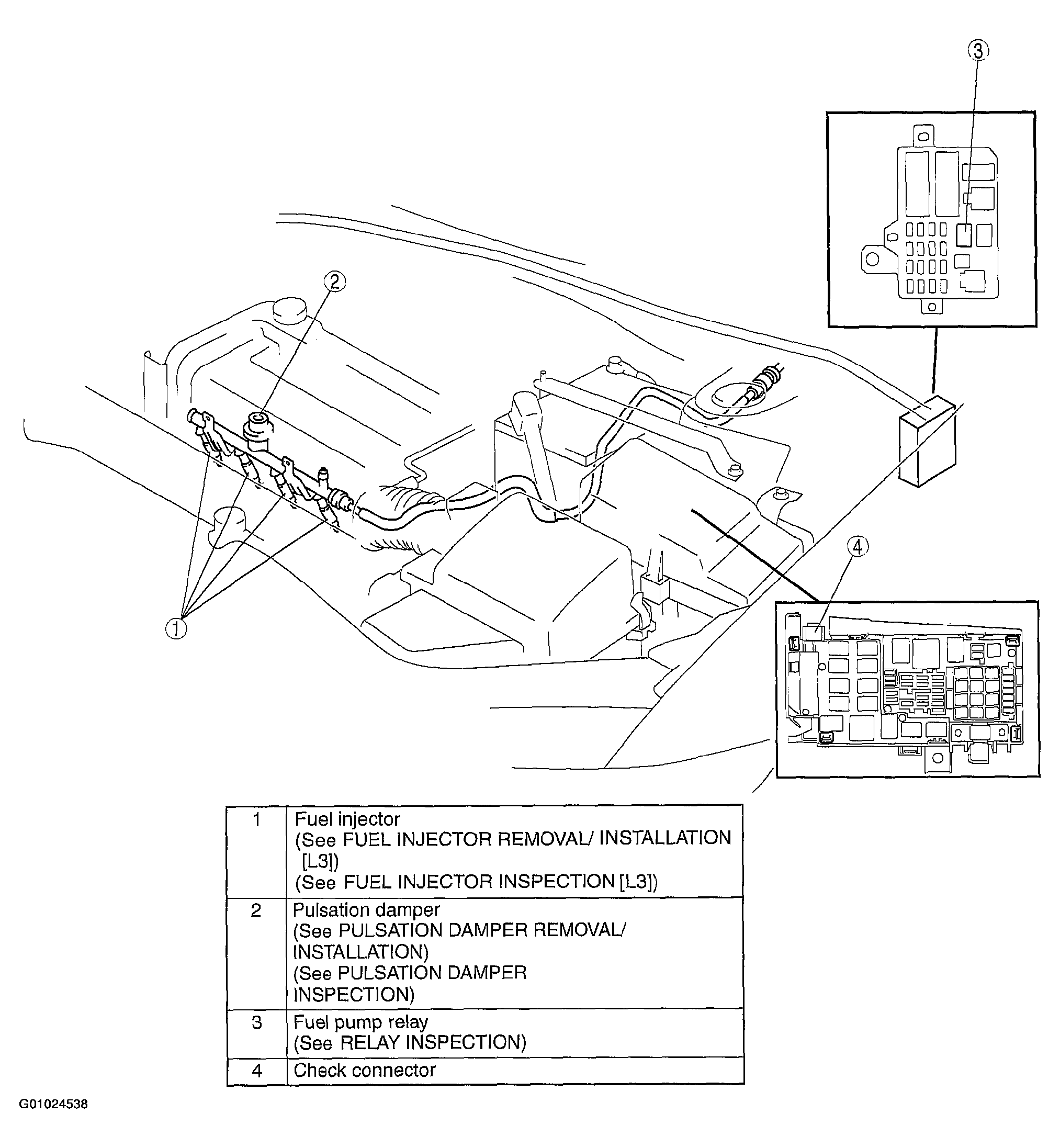

Fig 1: Fuel System Location Index - Engine Room Side [L3]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
