Engine Technical Data

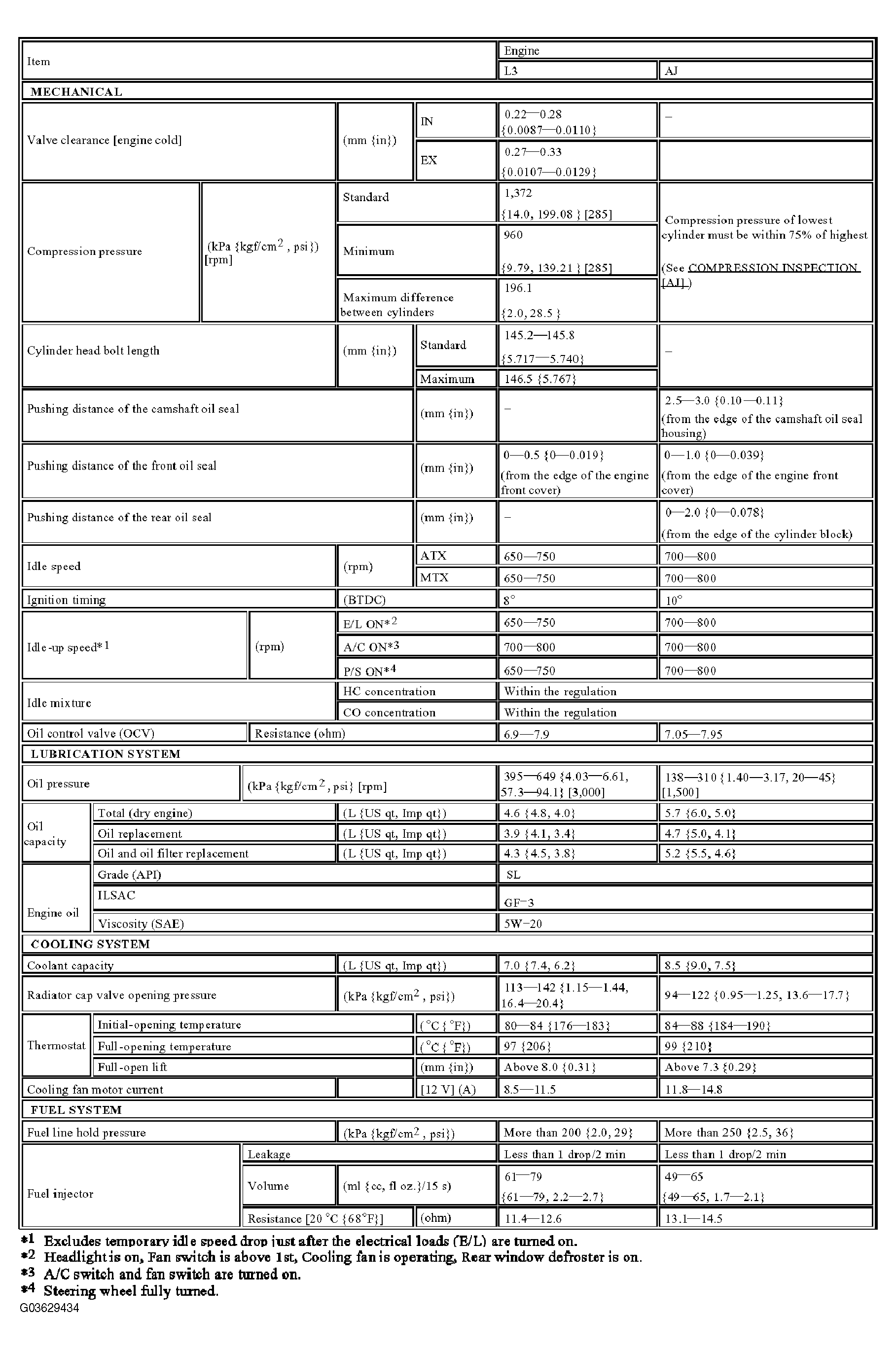

Fig 1: Engine Technical Data (1 Of 2)
G03629434Courtesy of MAZDA MOTORS CORP.

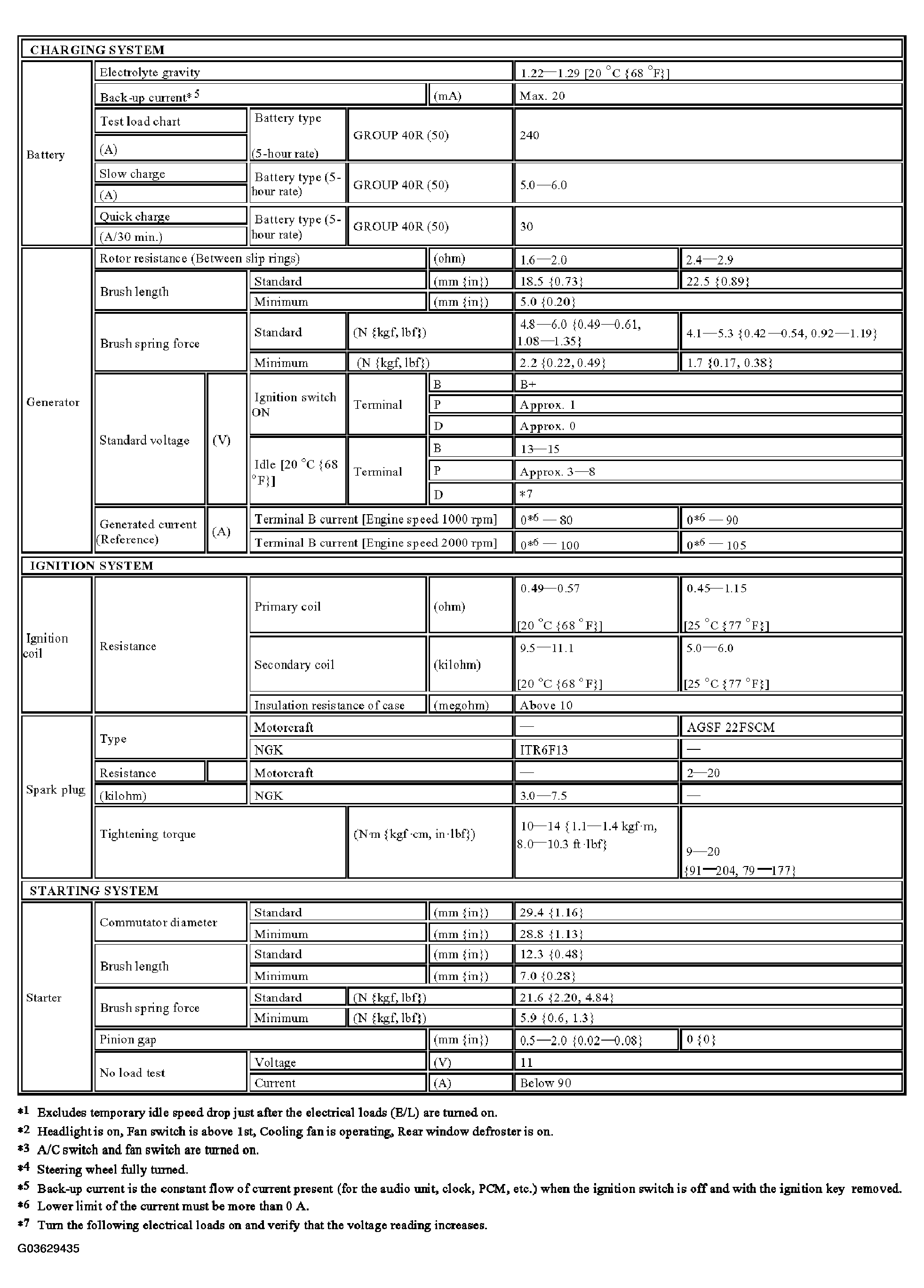

Fig 2: Engine Technical Data (1 Of 2)
G03629435Courtesy of MAZDA MOTORS CORP.
