DTC P0122: TP Sensor No. 1 Circuit Low Input: Notes

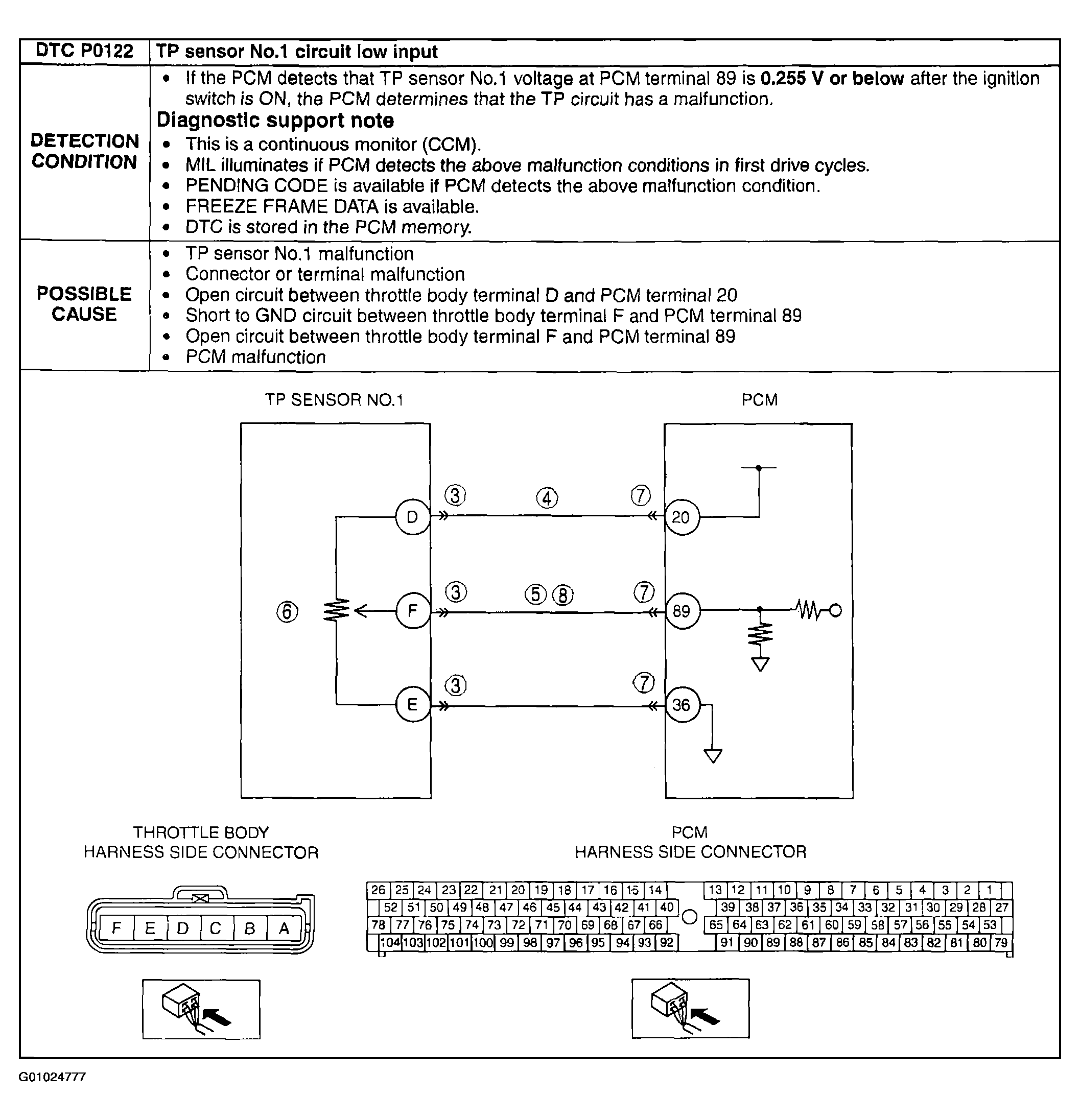

Fig 1: DTC P0122: Detection Condition & Possible Causes Chart
G01024777Courtesy of MAZDA MOTORS CORP.
