DTC P2100: Throttle Actuator Control Motor Circuit/Open: Notes

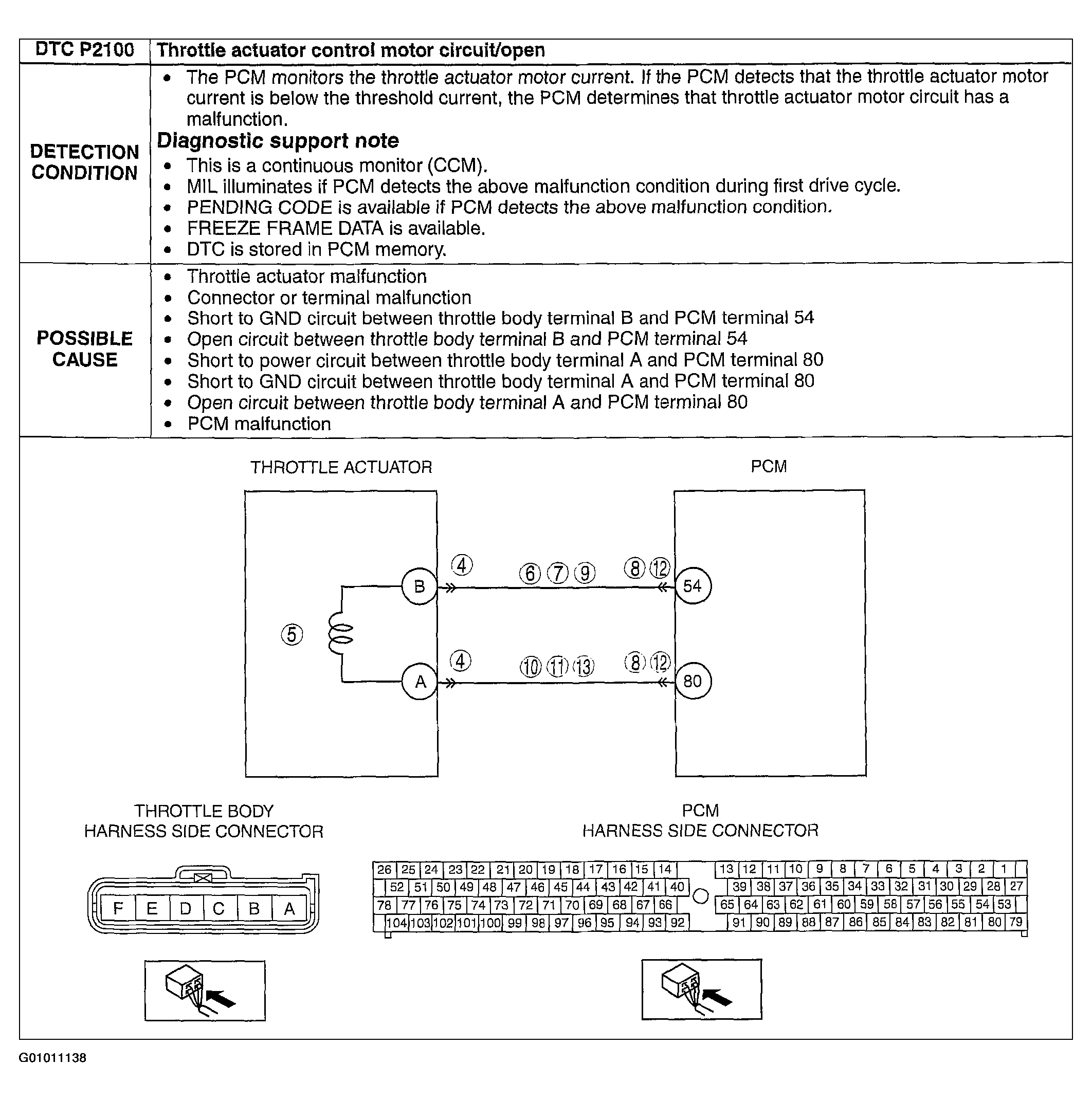

Fig 1: DTC P2100: Detection Condition & Possible Causes Chart
G01011138Courtesy of MAZDA MOTORS CORP.
