DTC P2122: App Sensor No.1 Circuit Low Input: Notes

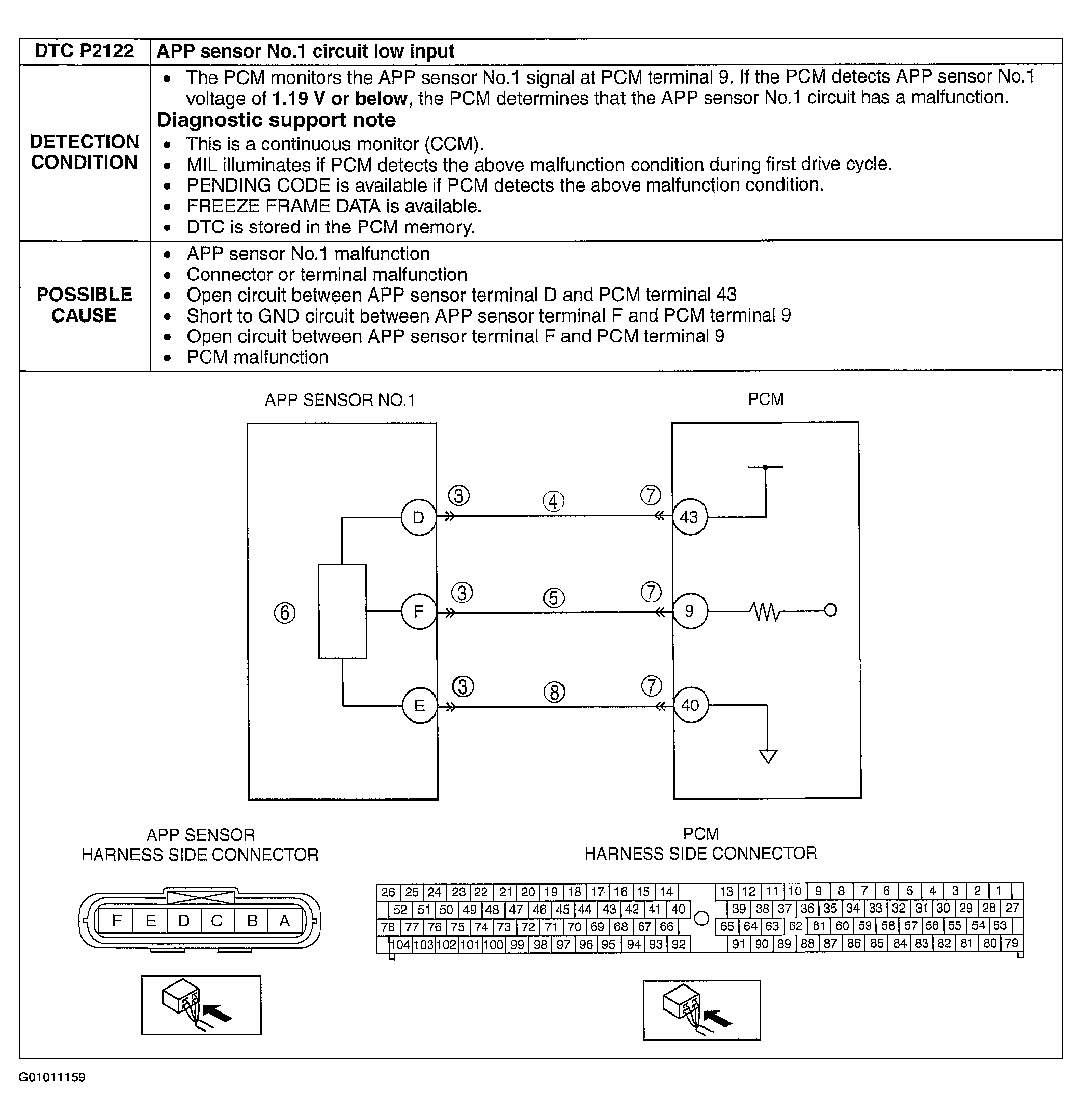

Fig 1: DTC P2122: Detection Condition & Possible Causes Chart
G01011159Courtesy of MAZDA MOTORS CORP.
