DTC P2228: EGR Boost Sensor Circuit Low Input
>>
Diagnostic Procedure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Procedure

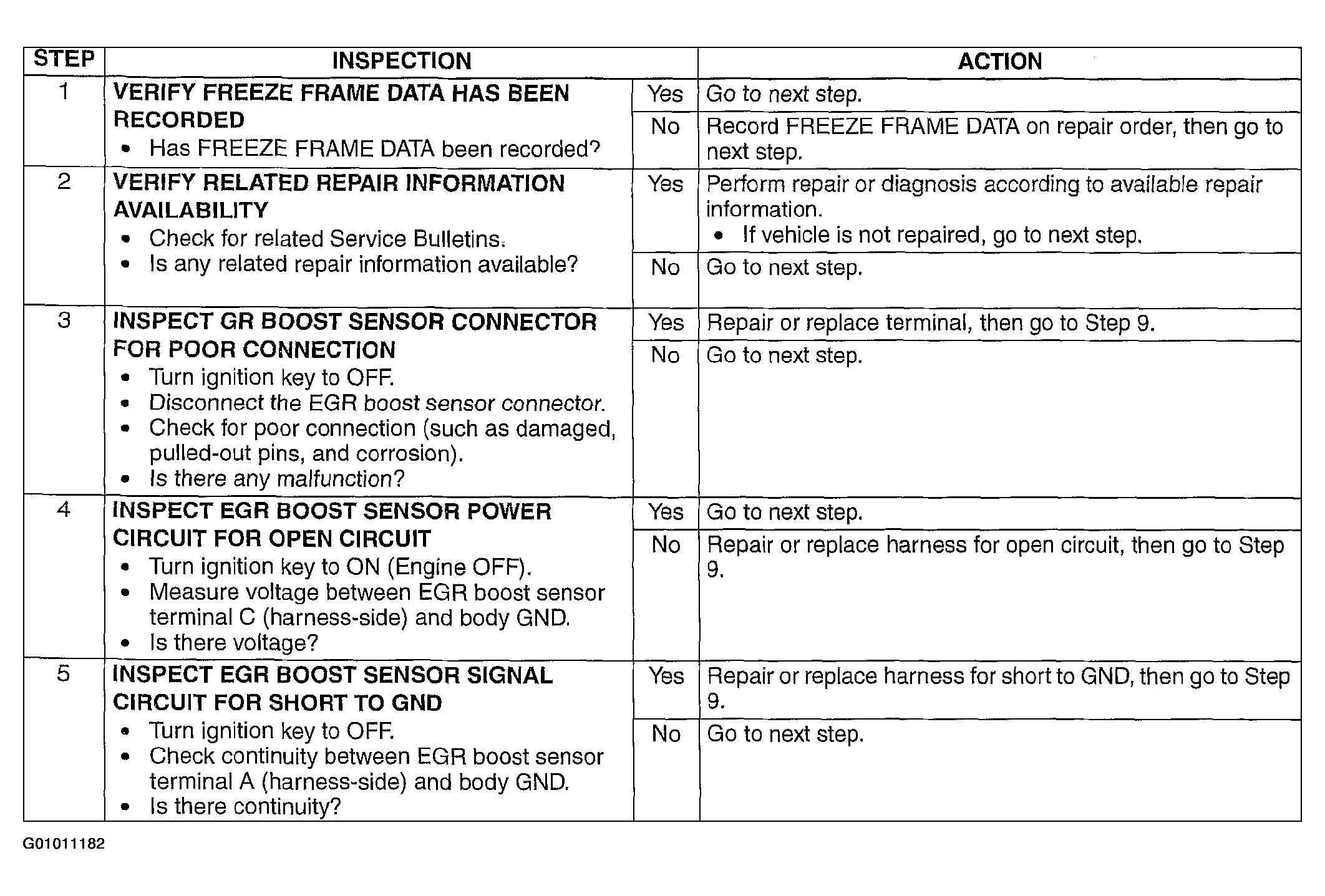

Fig 1: DTC P2228: Diagnostic Procedure Chart (Steps 1-5)
Courtesy of MAZDA MOTORS CORP.

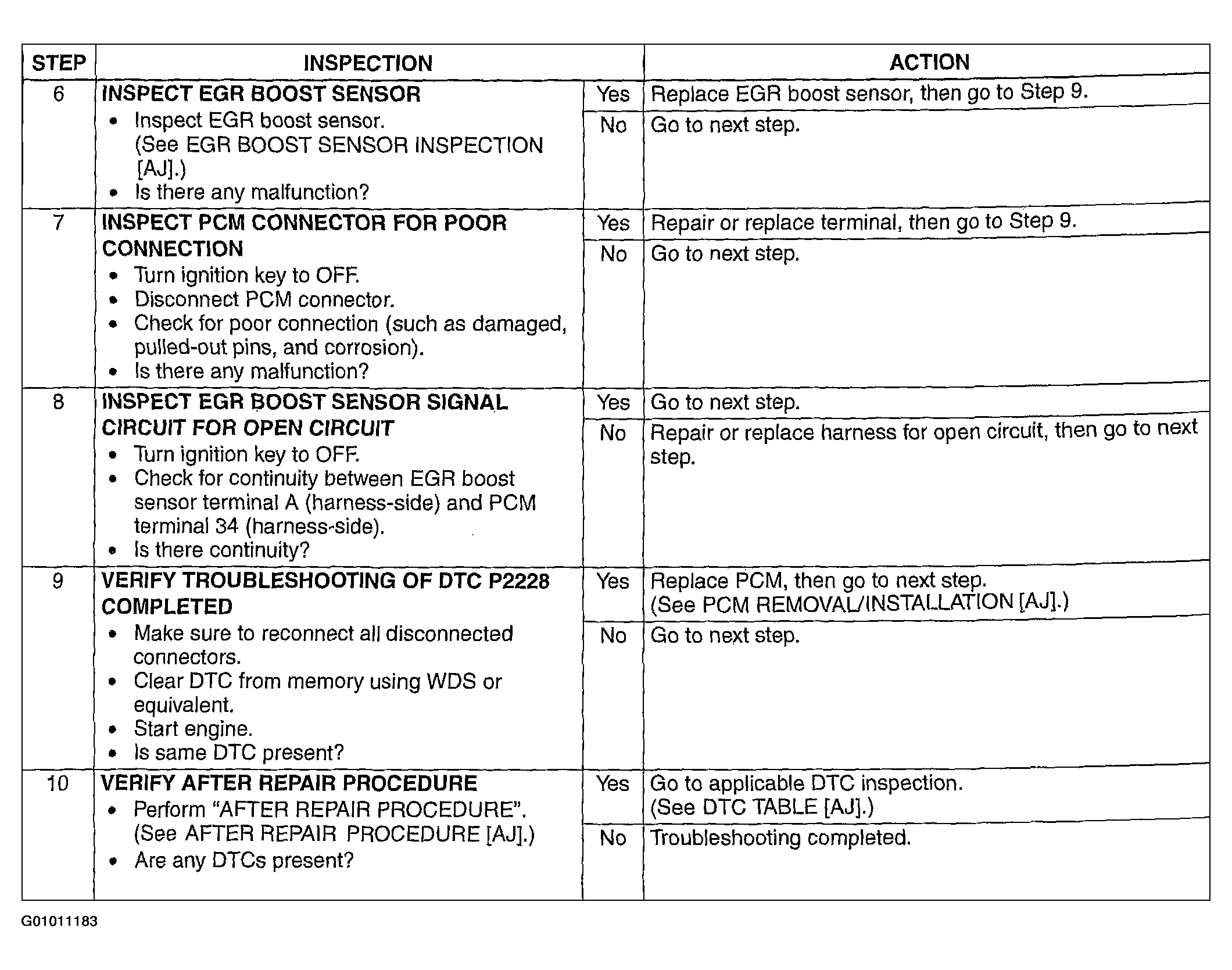

Fig 2: DTC P2228: Diagnostic Procedure Chart (Steps 6-10)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
