DTC P2228: EGR Boost Sensor Circuit Low Input: Notes

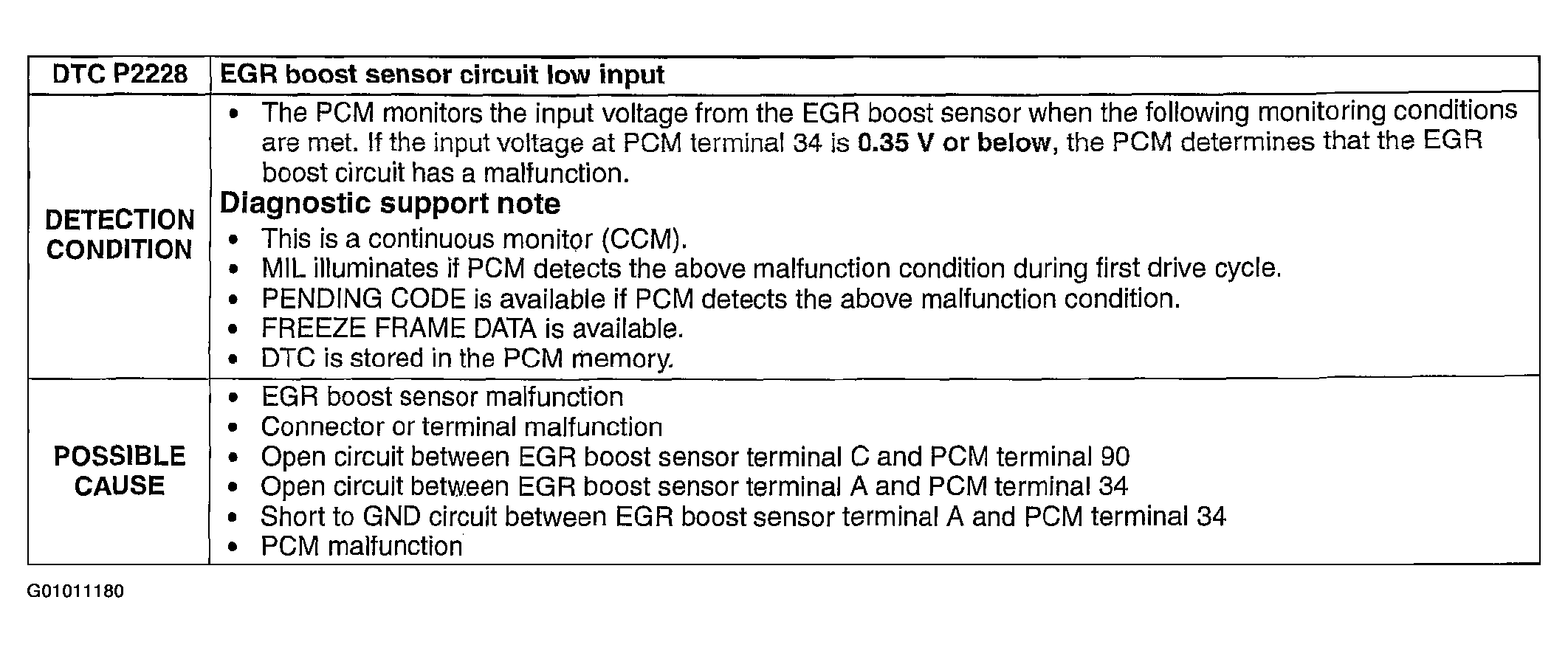

Fig 1: DTC P2228: Detection Condition & Possible Causes Chart (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

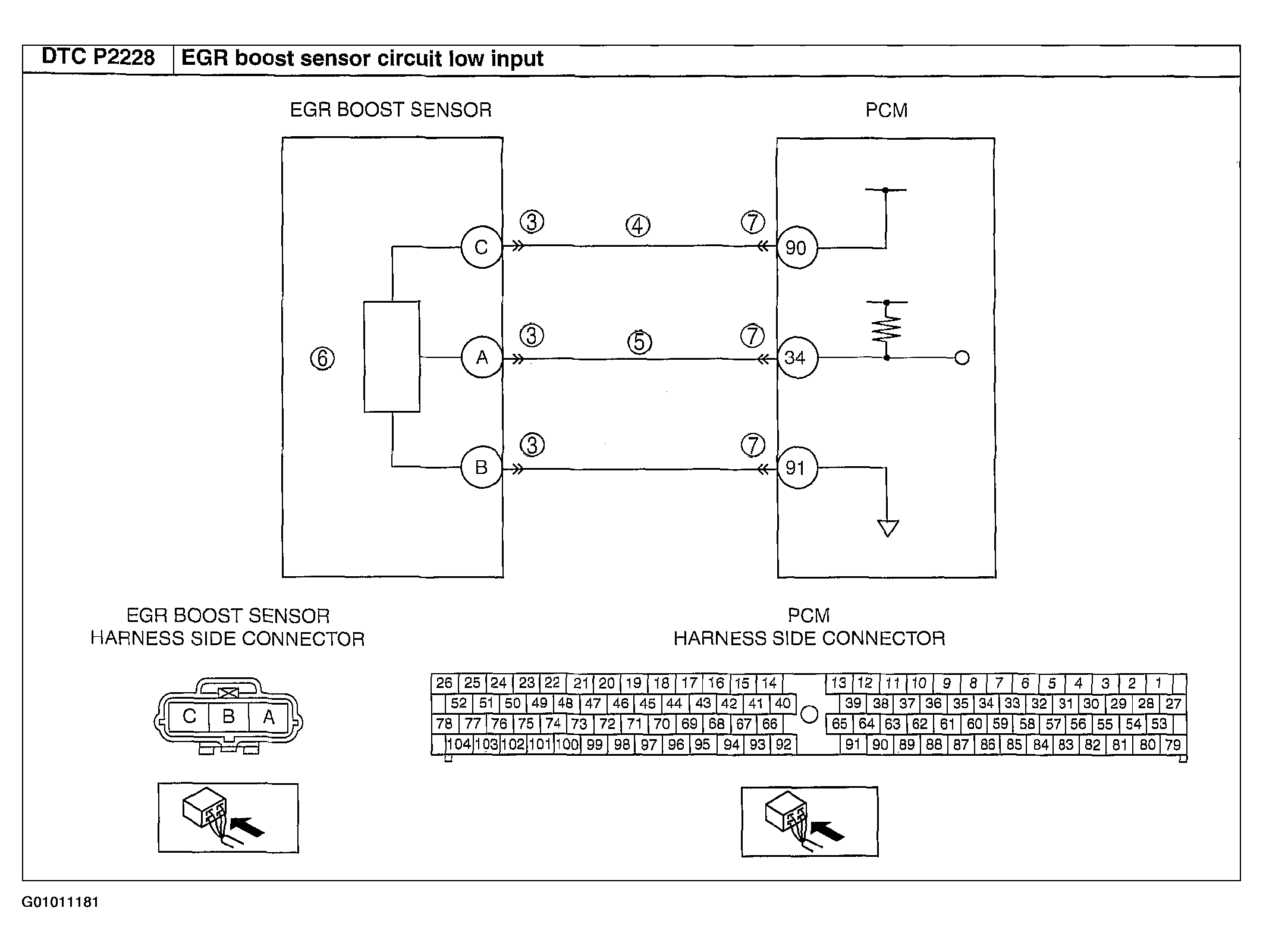

Fig 2: DTC P2228: Detection Condition & Possible Causes Chart (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
