Monitoring System & Control System Device Relationship Chart

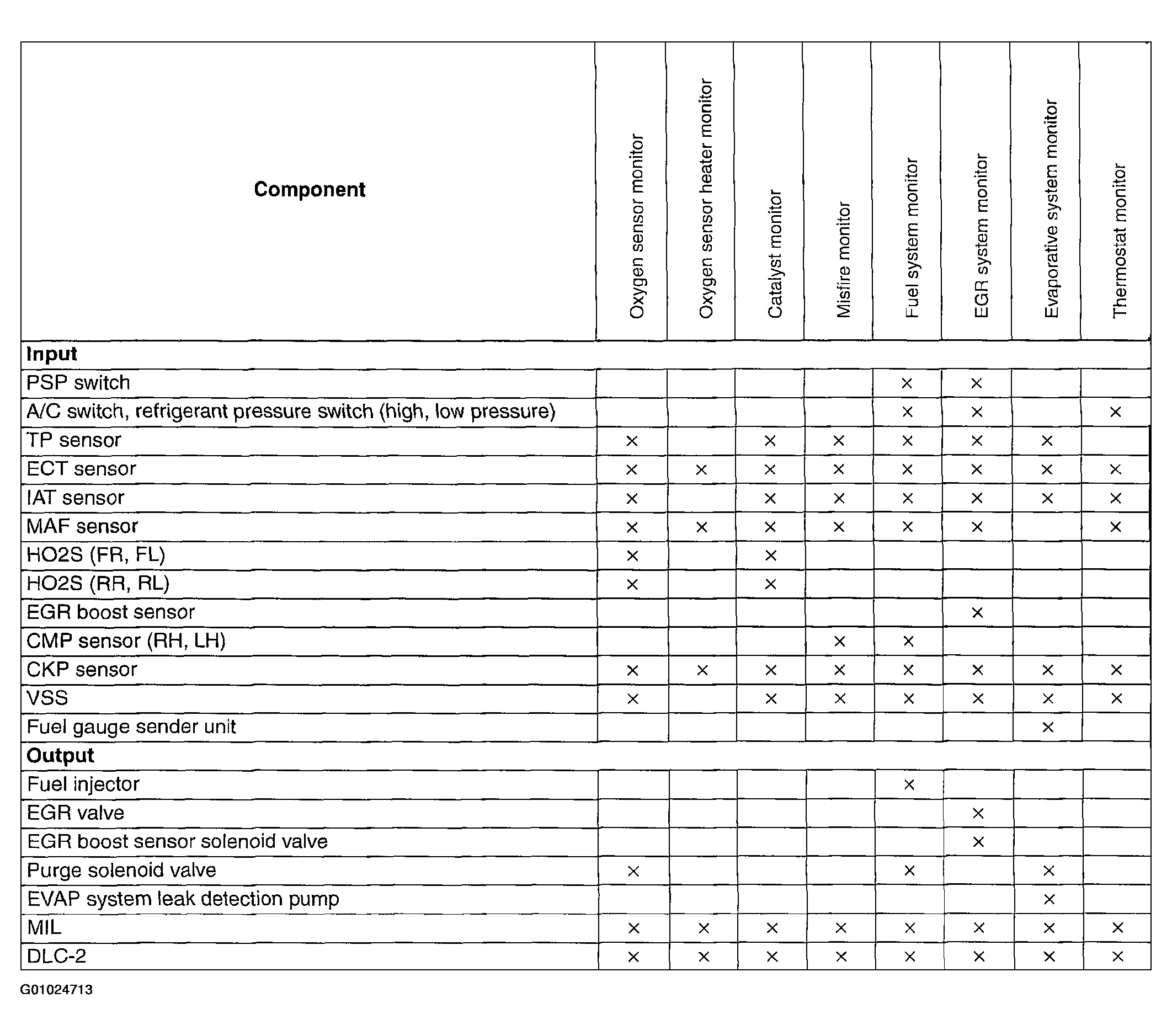

Fig 1: Monitoring System & Control System Device Relationship Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
