Cruise Control Switch Removal/Installation
- Remove the steering wheel. See STEERING WHEEL REMOVAL/INSTALLATION
,
.
- Remove the two screws and steering wheel rear cover.
- Remove the ribbon harness from the clips.

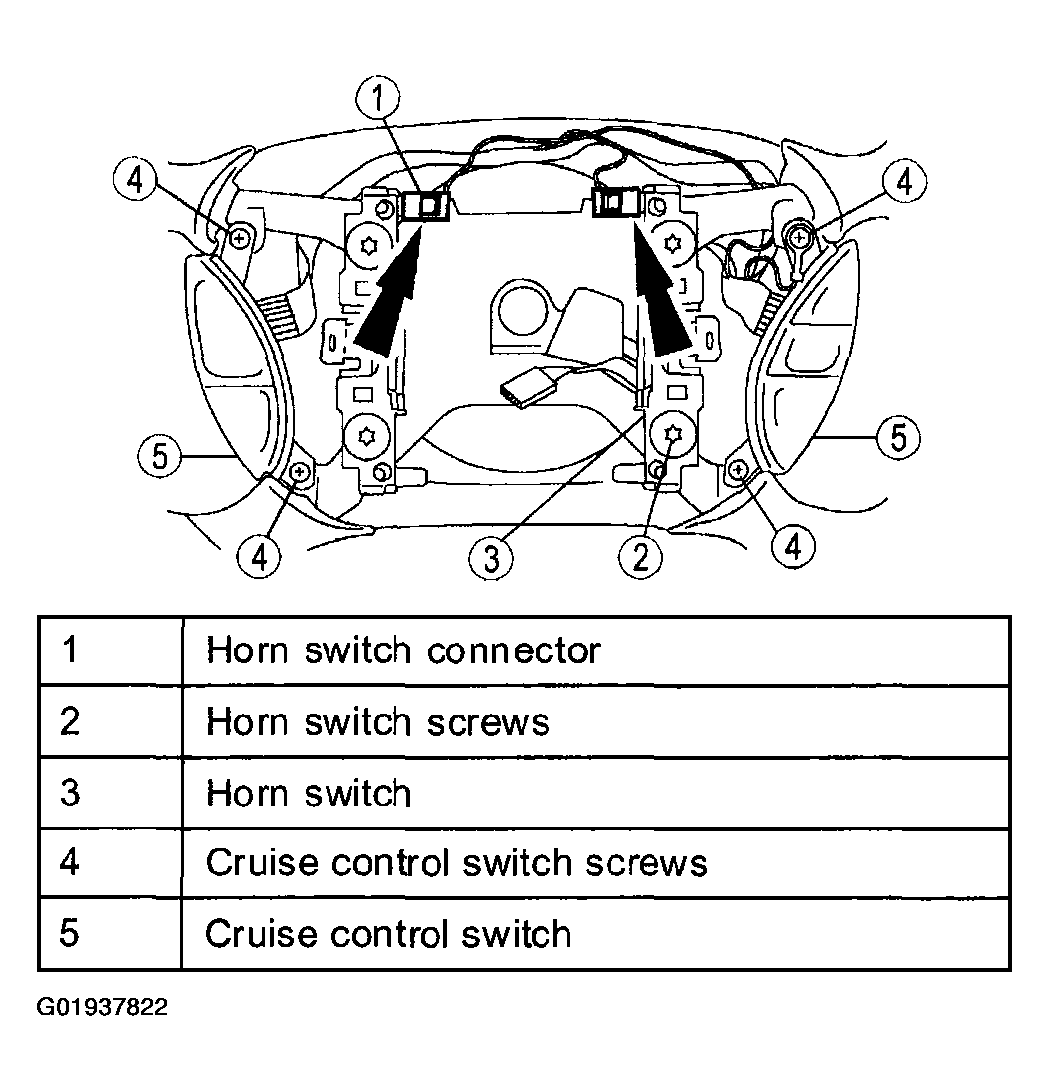

- Remove in order shown in figure.
- Install in reverse order of removal.
NOTE:
- Install ground eyelet under upper screw on right-hand switch. Position switch(es) on steering wheel and install four Phillips-head attaching screws.
- Tightening torque: Horn switch screws
- 6.5-7.5 N.m {.66-.76 kgf.m, 4.8-5.5 ft.lbf}
Courtesy of MAZDA MOTORS CORP.
