Component Testing Procedure

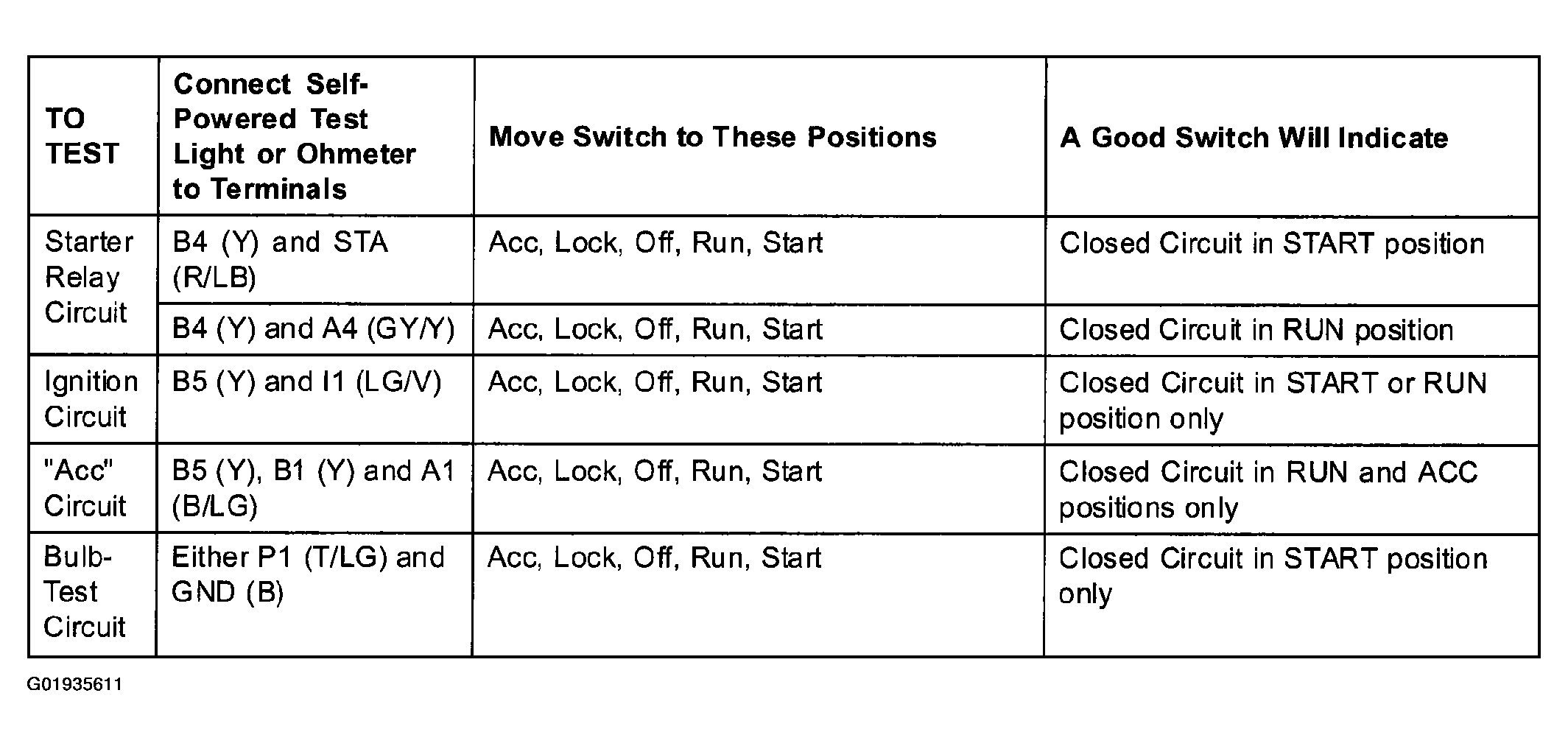

Fig 1: Power System Component Testing Procedure
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
