Steering Column Disassembly/Assembly: Notes

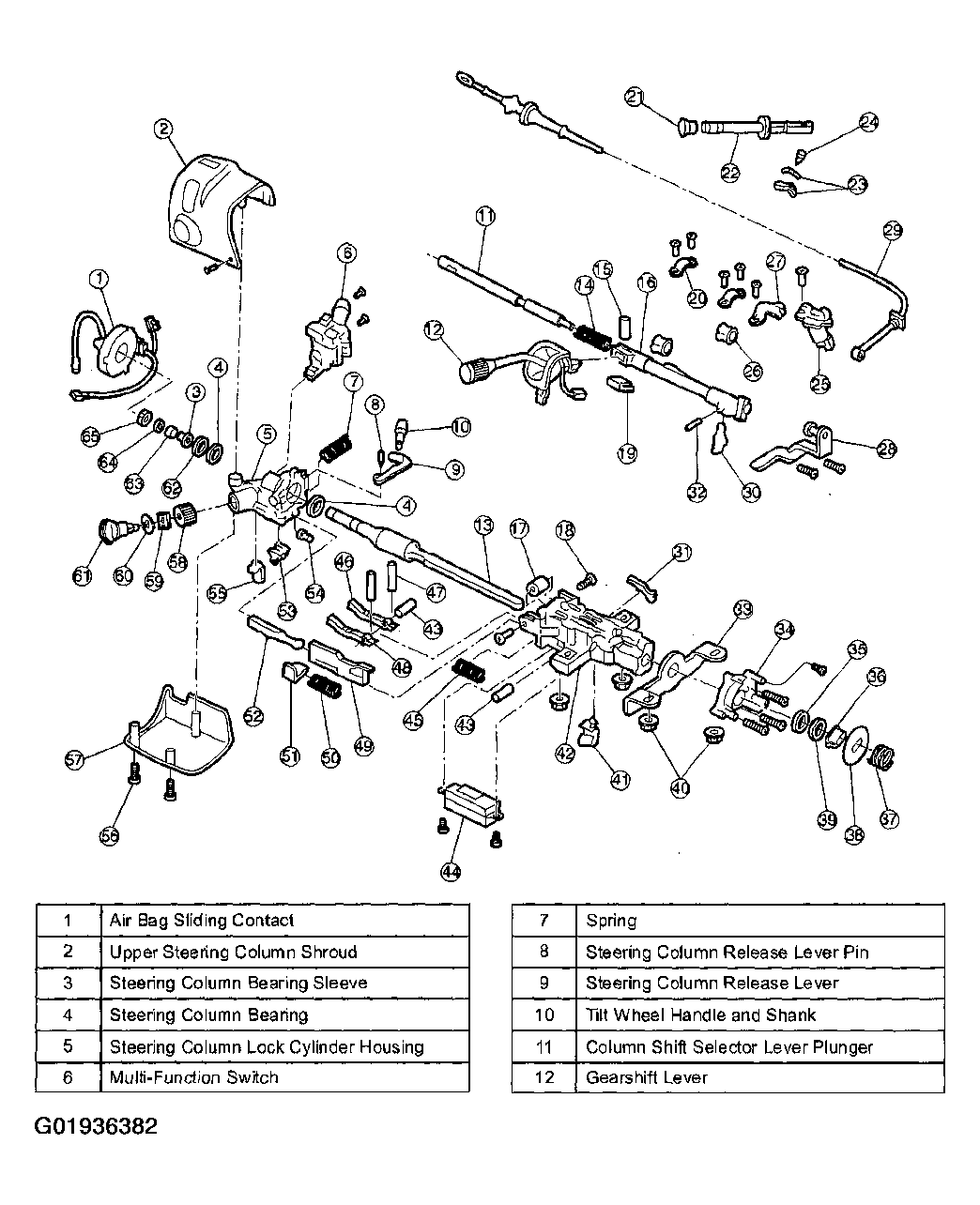

Fig 1: Exploded View Of Steering Column
G01936382Courtesy of MAZDA MOTORS CORP.

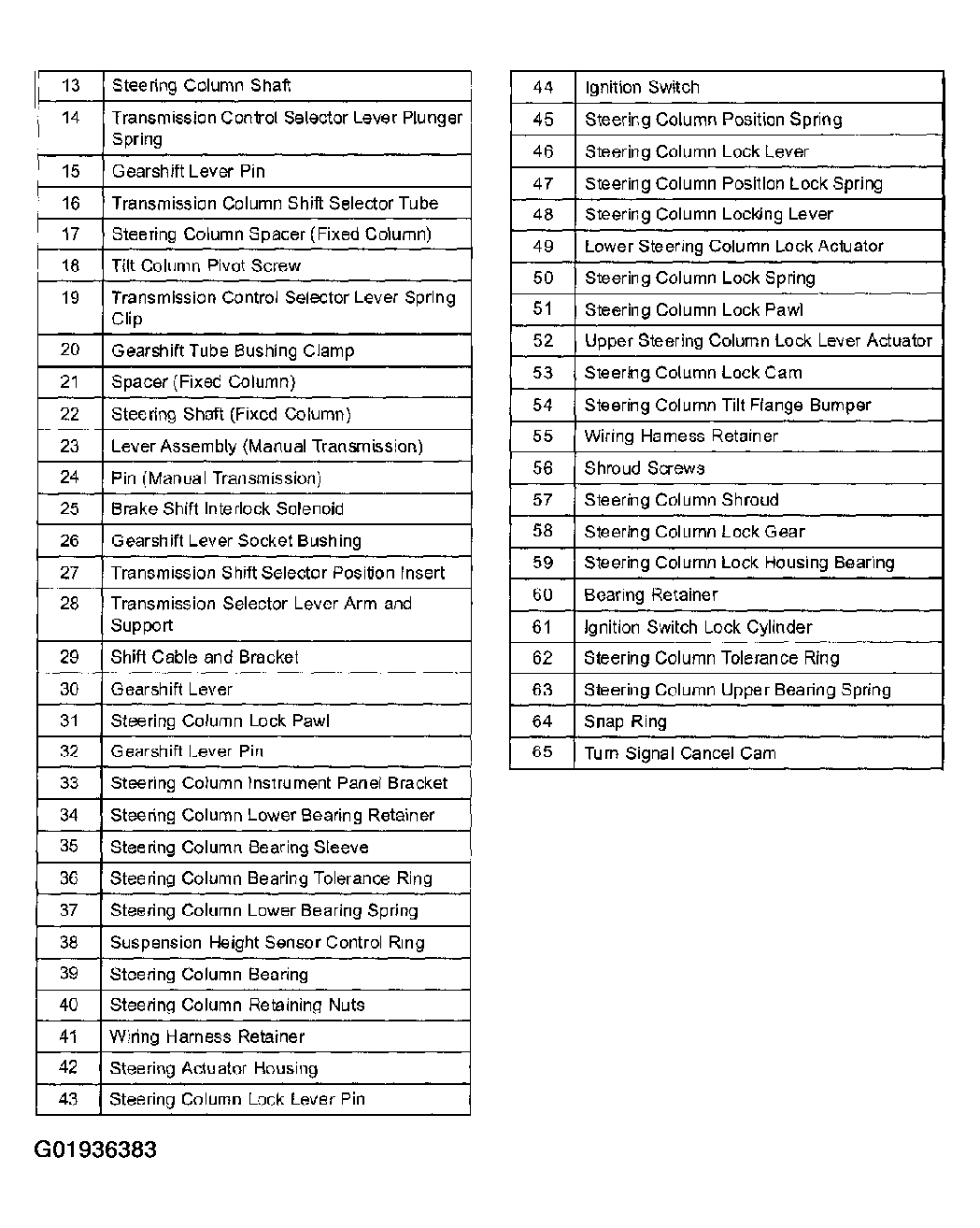

Fig 2: Steering Column Components
G01936383Courtesy of MAZDA MOTORS CORP.
