Ignition Switch Is Inoperative

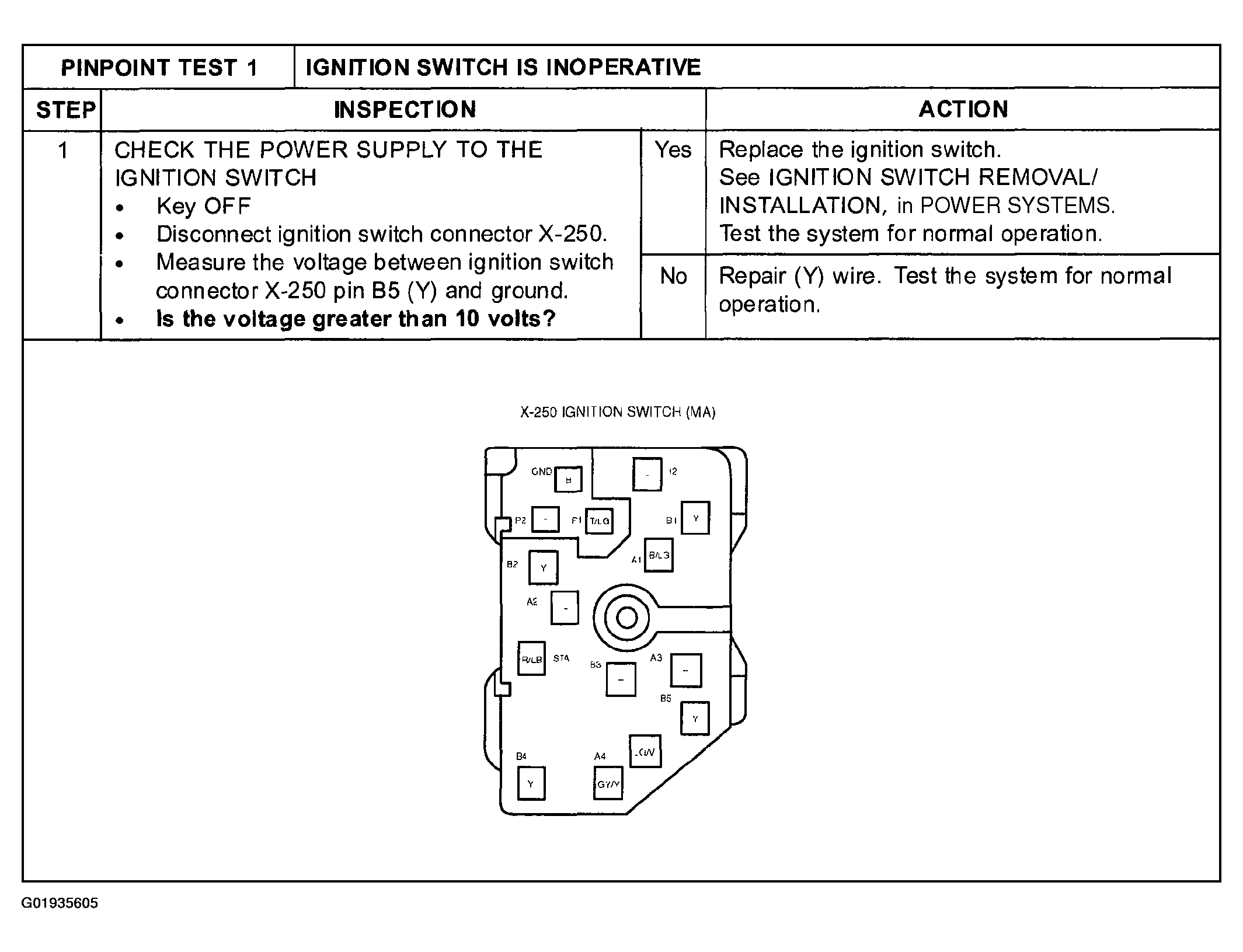

Fig 1: Pinpoint Test 1 - Ignition Switch Inoperative Inspection Table
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
