No Power In Start

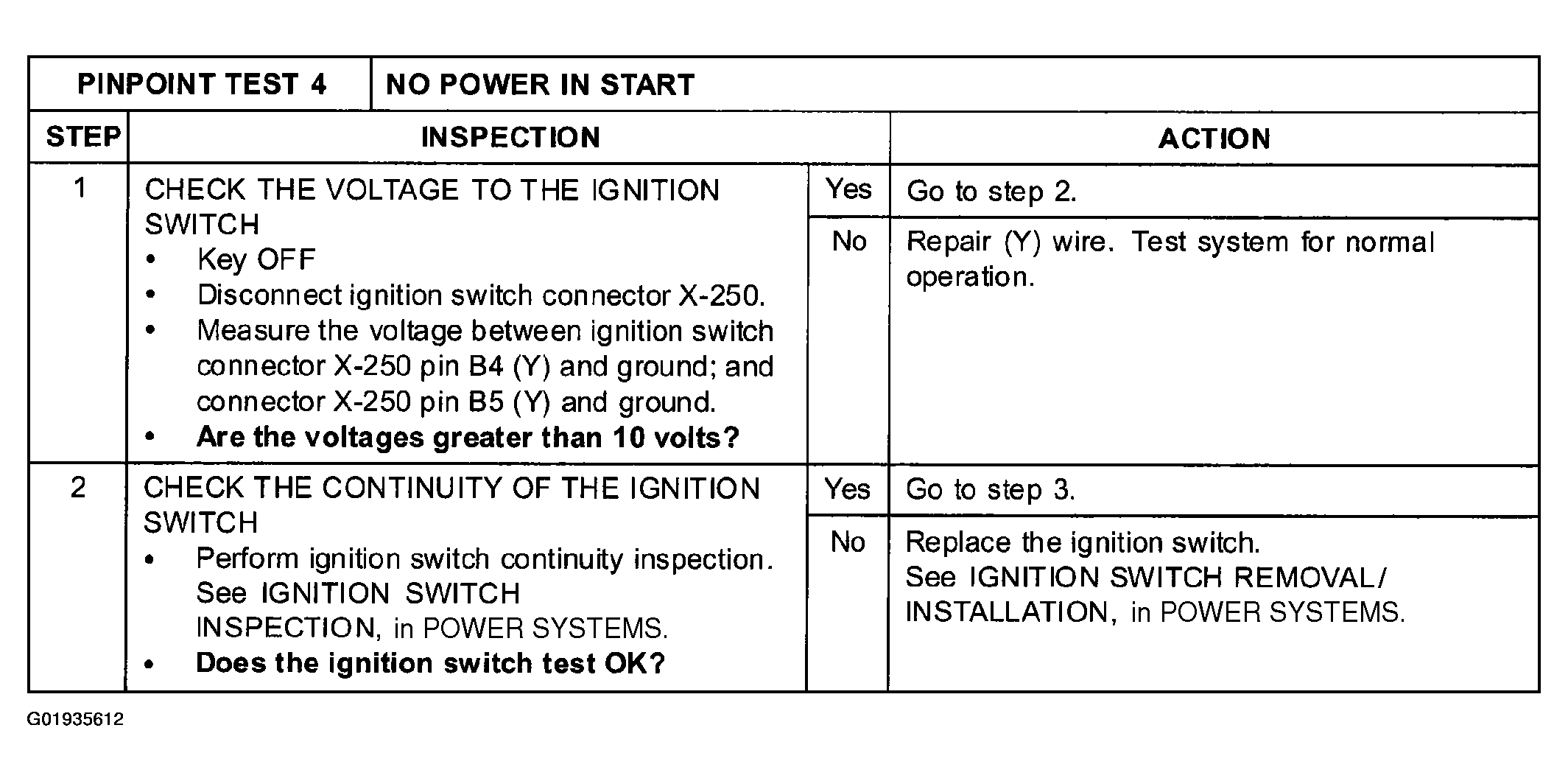

Fig 1: Pinpoint Test 4 - No Power In Start Inspection Table (Steps 1-2)
Courtesy of MAZDA MOTORS CORP.

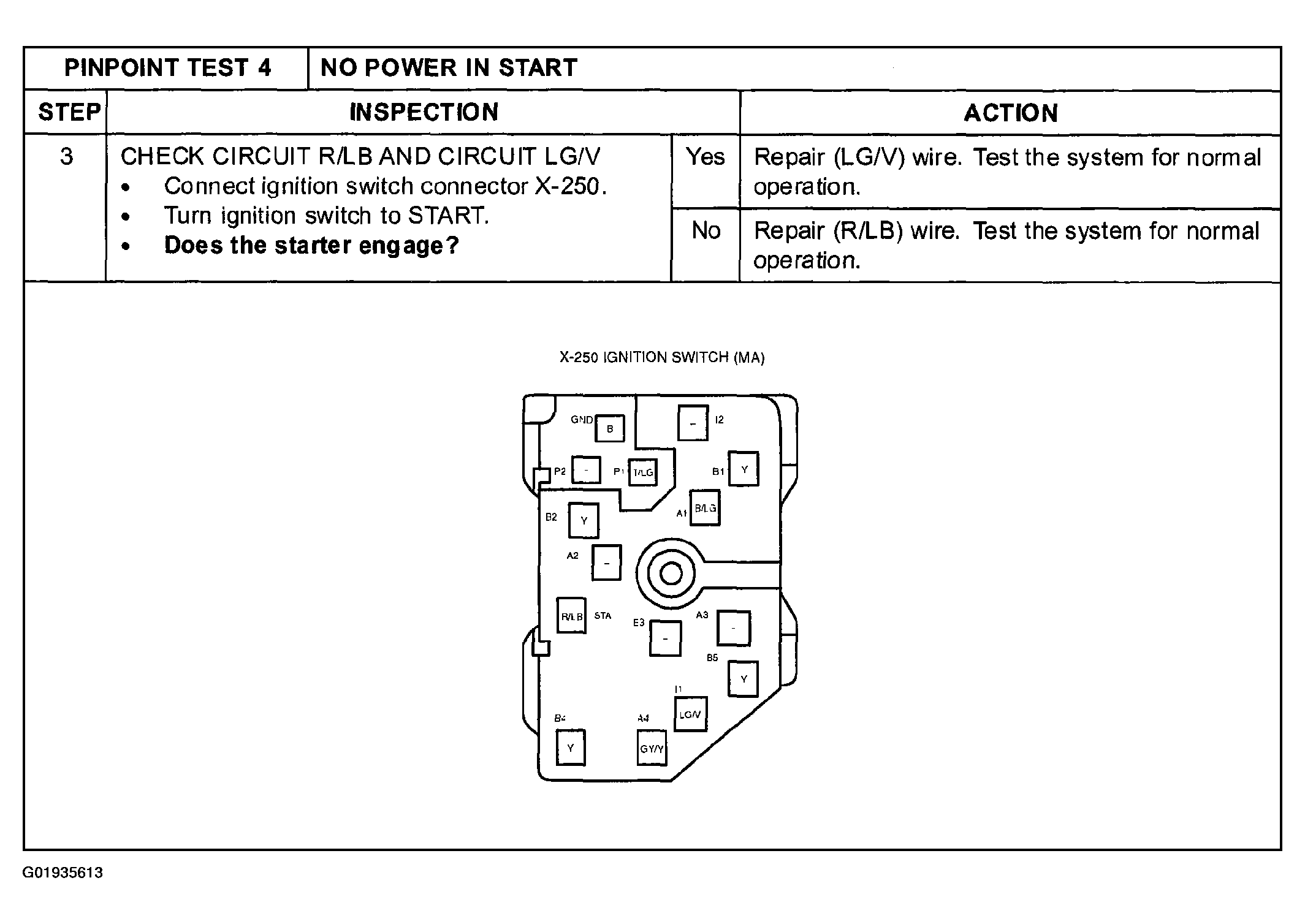

Fig 2: Pinpoint Test 4 - No Power In Start Inspection Table (Step 3)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
