Power Window Inoperative-Driver Power Window

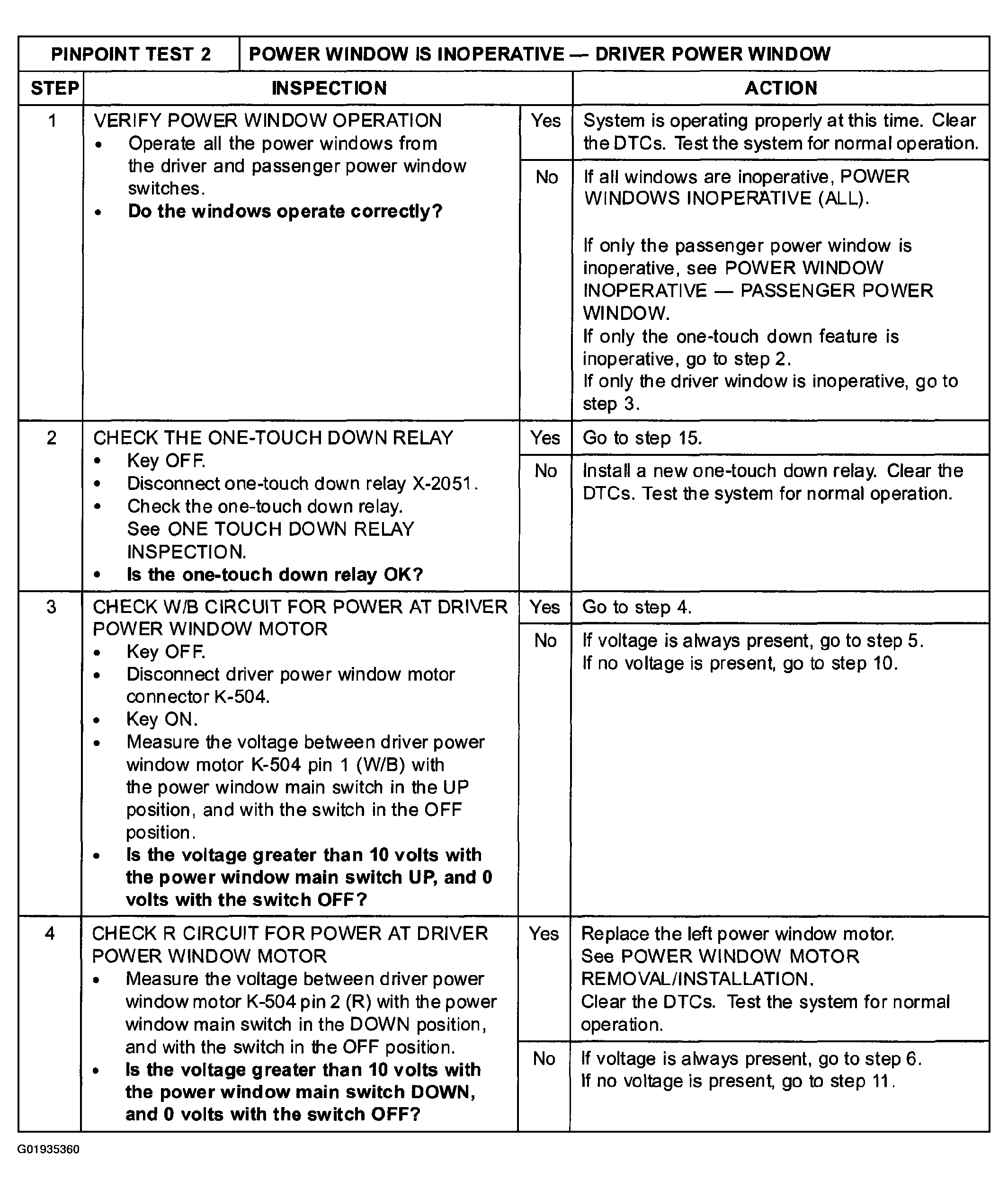

Fig 1: Pinpoint Test 2 - Driver Power Window Inoperative Inspection Table (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

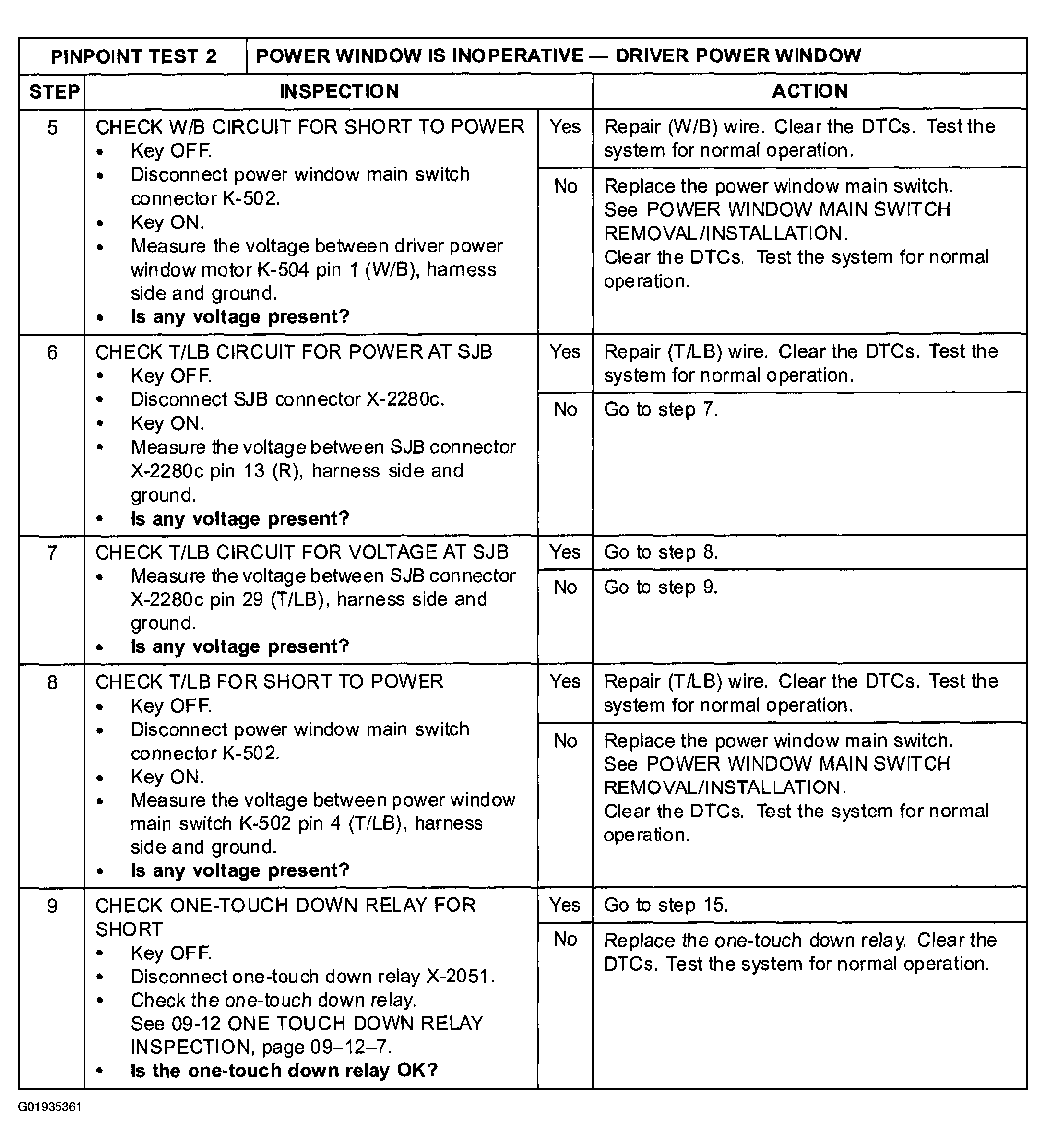

Fig 2: Pinpoint Test 2 - Driver Power Window Inoperative Inspection Table (Steps 5-9)

Courtesy of MAZDA MOTORS CORP.

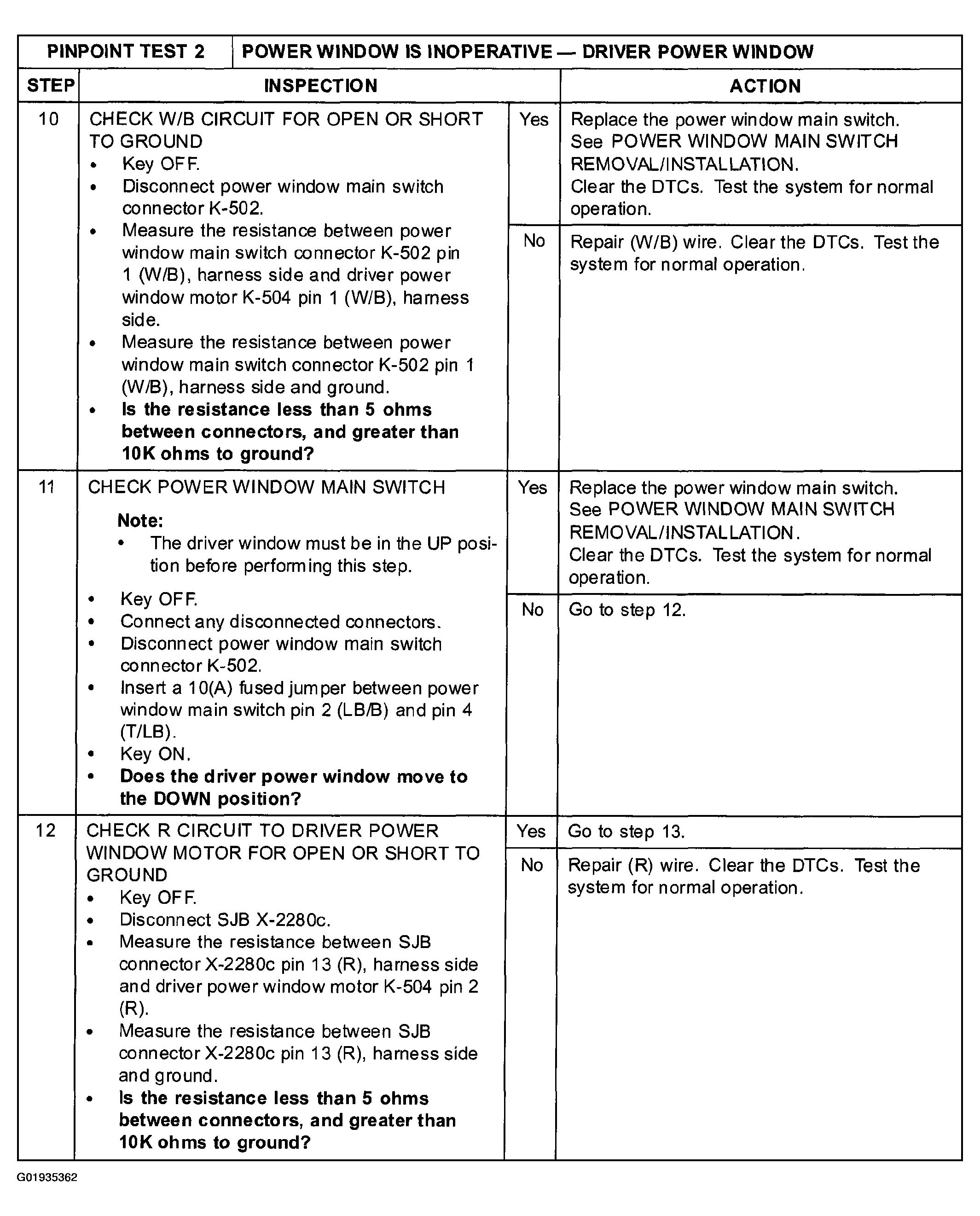

Fig 3: Pinpoint Test 2 - Driver Power Window Inoperative Inspection Table (Steps 10-12)

Courtesy of MAZDA MOTORS CORP.

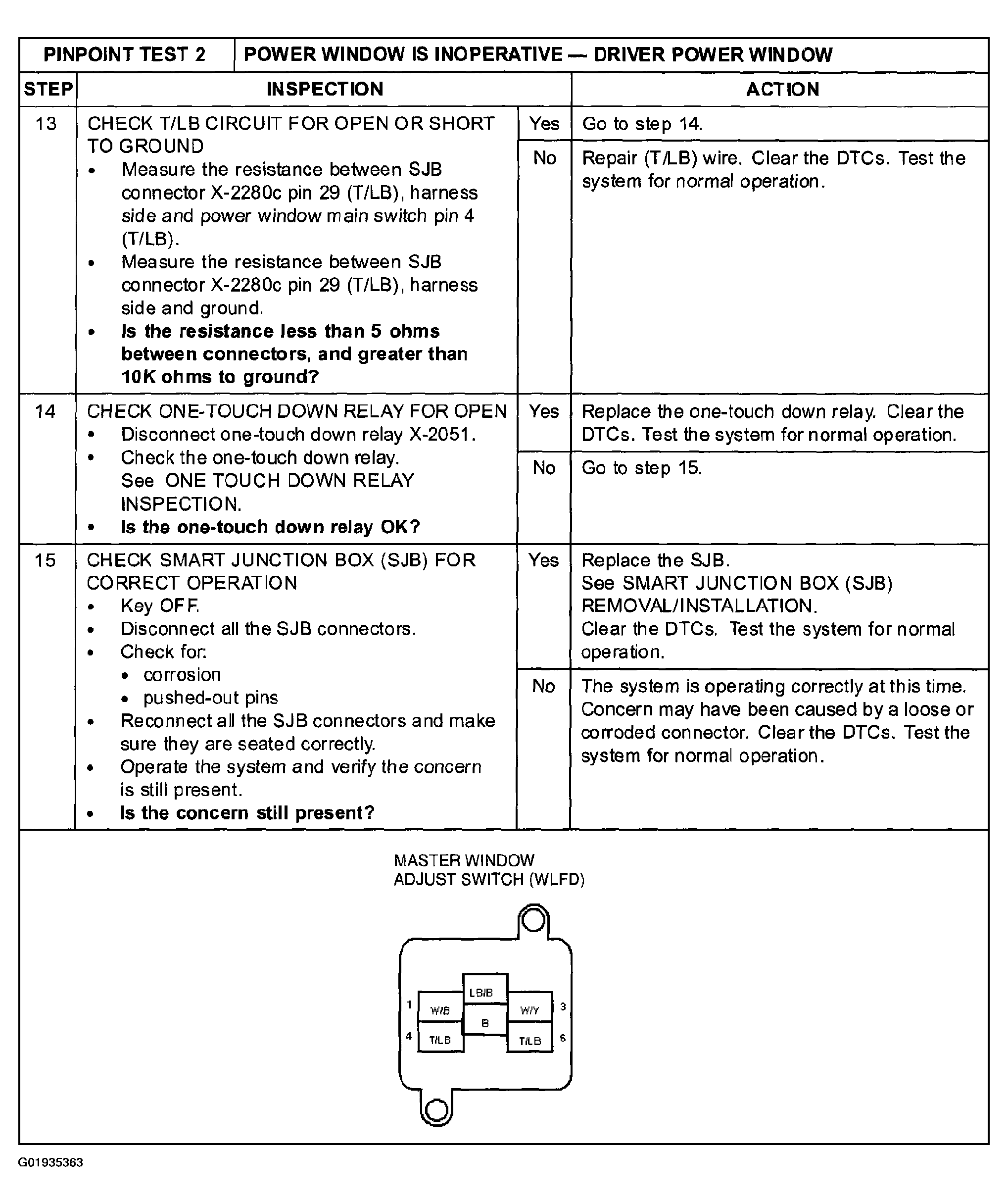

Fig 4: Pinpoint Test 2 - Driver Power Window Inoperative Inspection Table (Steps 13-15 & Master Window Adjust Switch Connector Terminals Wire Color)

Courtesy of MAZDA MOTORS CORP.

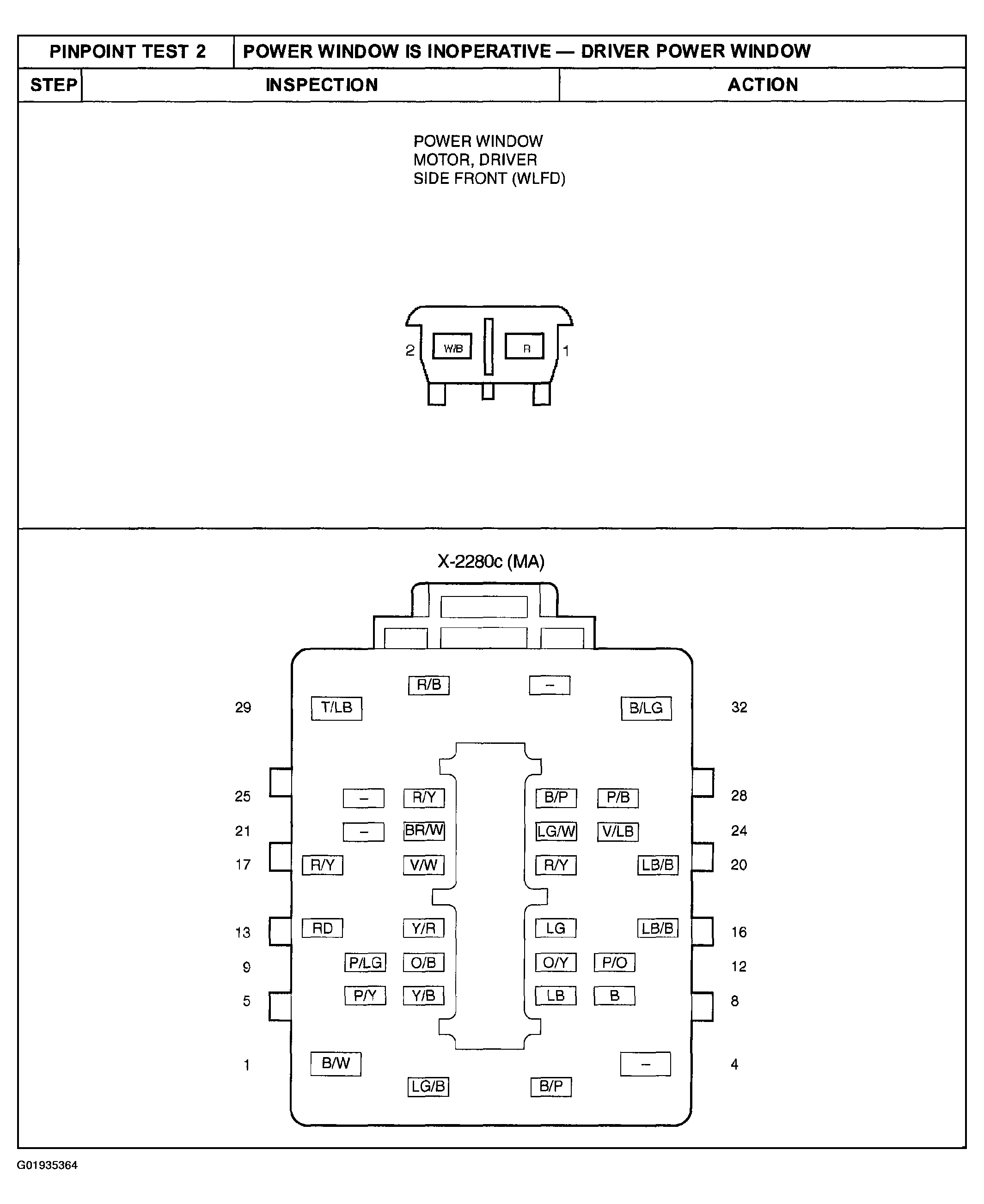

Fig 5: Identifying Front Driver Side Power Window Motor And X-2280c Connector Terminals Wire Color

Courtesy of MAZDA MOTORS CORP.
