Power Window Inoperative-Passenger Power Window

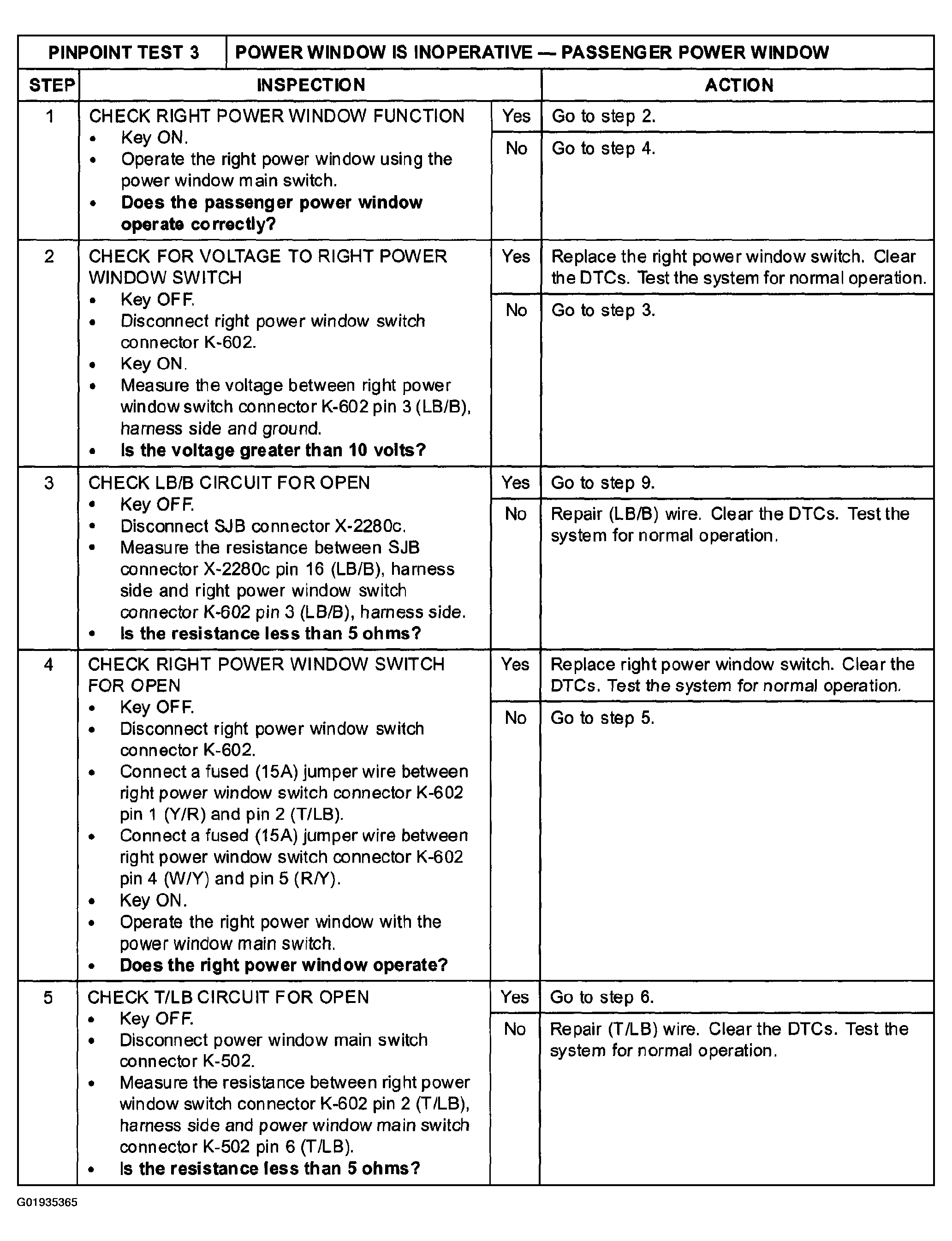

Fig 1: Pinpoint Test 3 - Passenger Power Window Inoperative Inspection Table (Steps 1-5)

Courtesy of MAZDA MOTORS CORP.

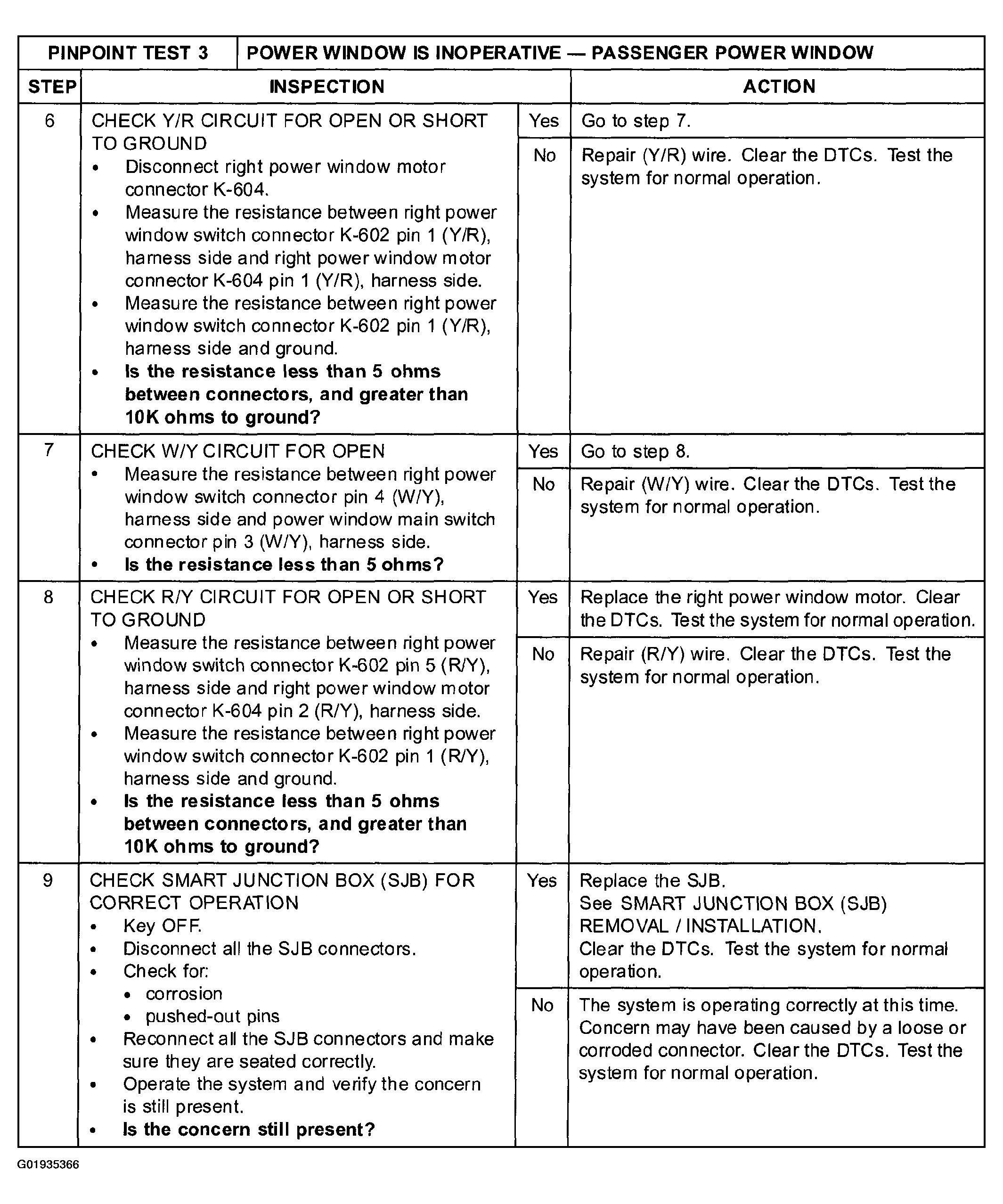

Fig 2: Pinpoint Test 3 - Passenger Power Window Inoperative Inspection Table (Steps 6-9)

Courtesy of MAZDA MOTORS CORP.

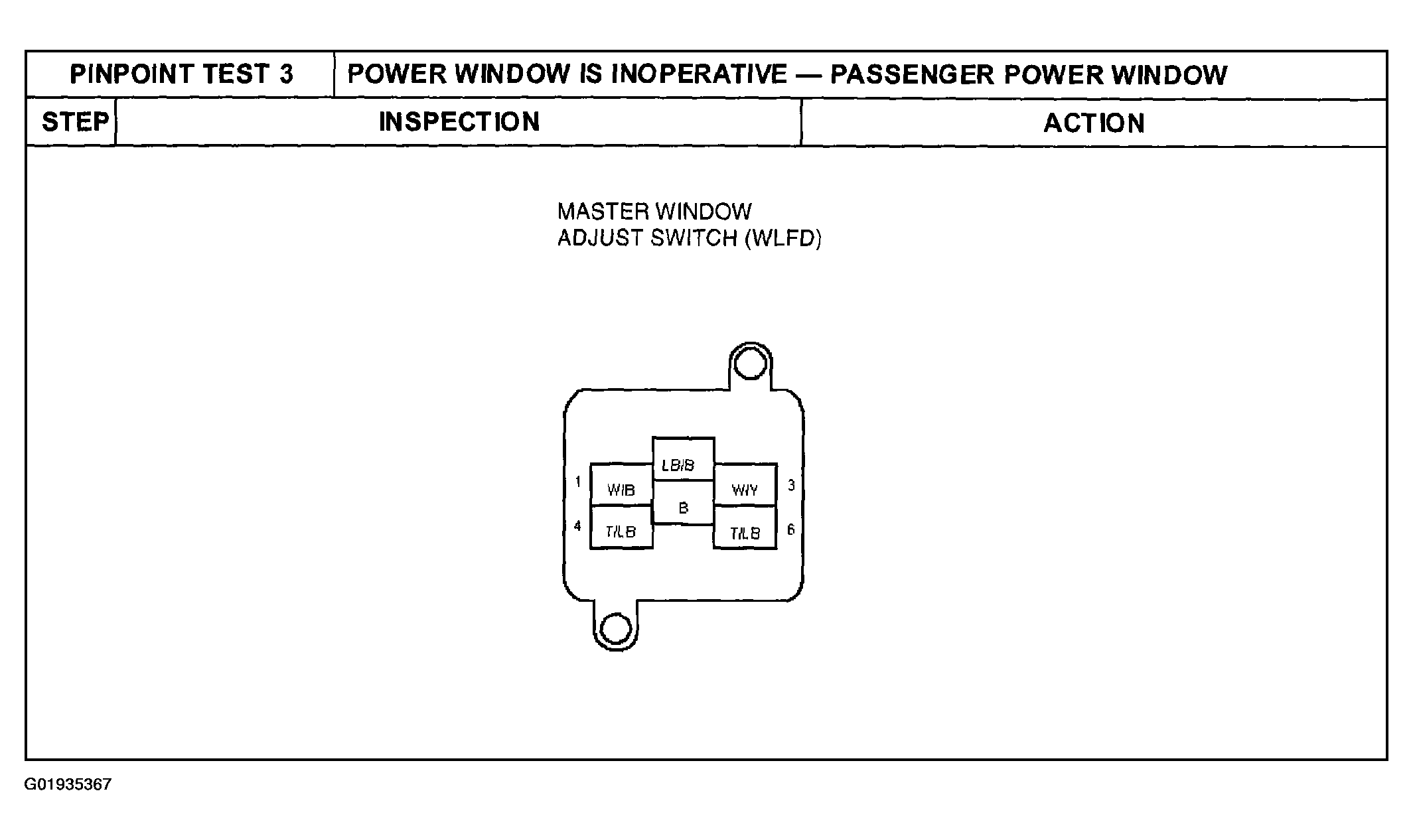

Fig 3: Identifying Master Window Adjust Switch Connector Terminal Wire Color

Courtesy of MAZDA MOTORS CORP.

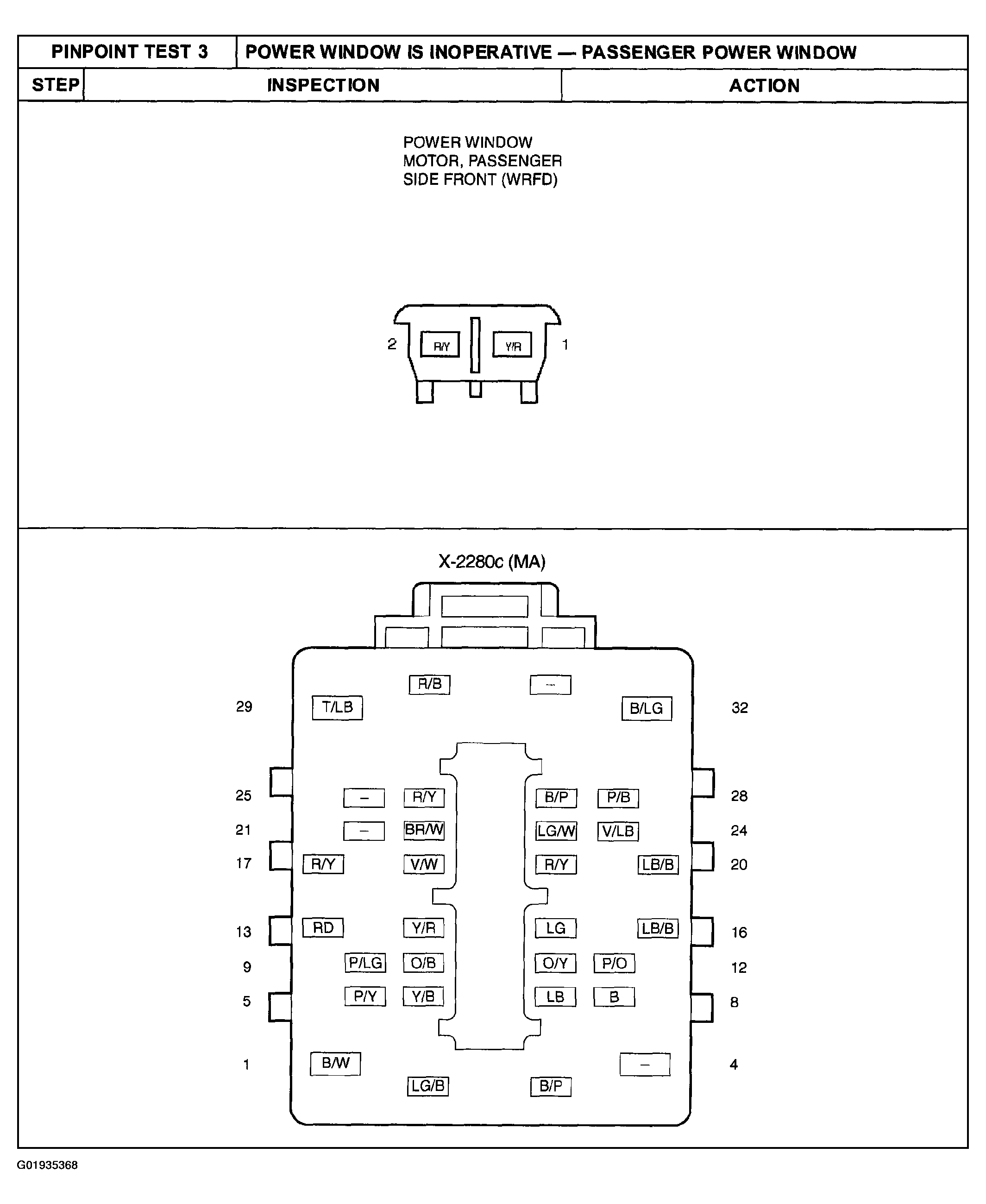

Fig 4: Identifying Front Passenger Side Power Window Motor And X-2280c Connector Terminal Wire Color

Courtesy of MAZDA MOTORS CORP.
