Extractor Chamber Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove the following parts:
1. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
2. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
3. Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .)
4. Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION .)
Detach clips A by squeezing them from inside the vehicle, and remove the extractor chamber from the body.
Install in the reverse order of removal.

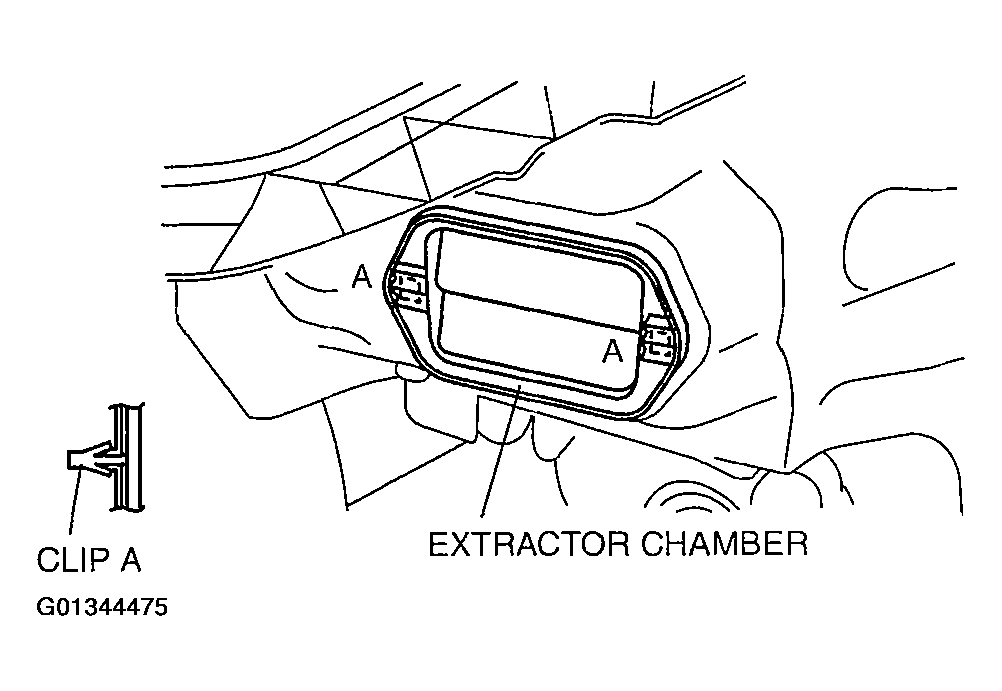

Fig 1: Removing/Installing Extractor Chamber
Courtesy of MAZDA MOTORS CORP.
