Passive Anti-Theft Transceiver Module Removal/Installation

CAUTION:

Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

Disconnect the negative battery cable.
Remove the ignition switch lock cylinder. See IGNITION LOCK CYLINDER REMOVAL/INSTALLATION .
If equipped, remove the tilt wheel handle.

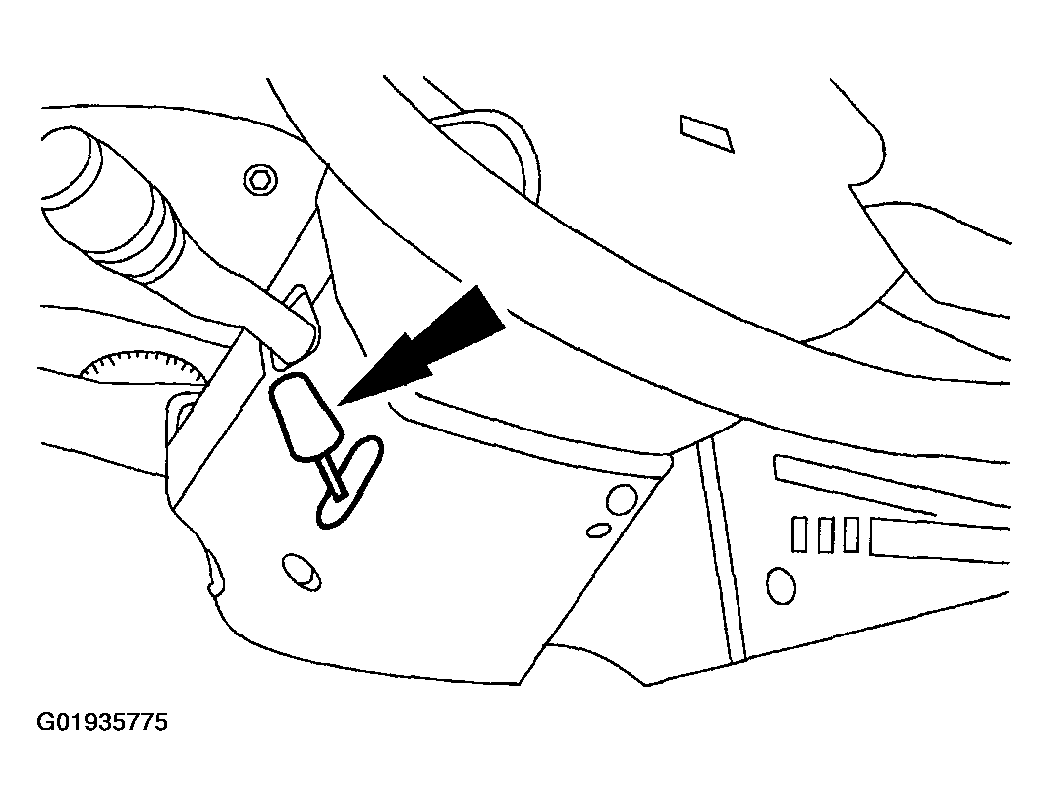

Fig 1: Locating Tilt Wheel Handle
Courtesy of MAZDA MOTORS CORP.
Remove the upper and lower steering column shrouds.
1. Remove the screws.
2. Remove the upper and lower steering column shroud.

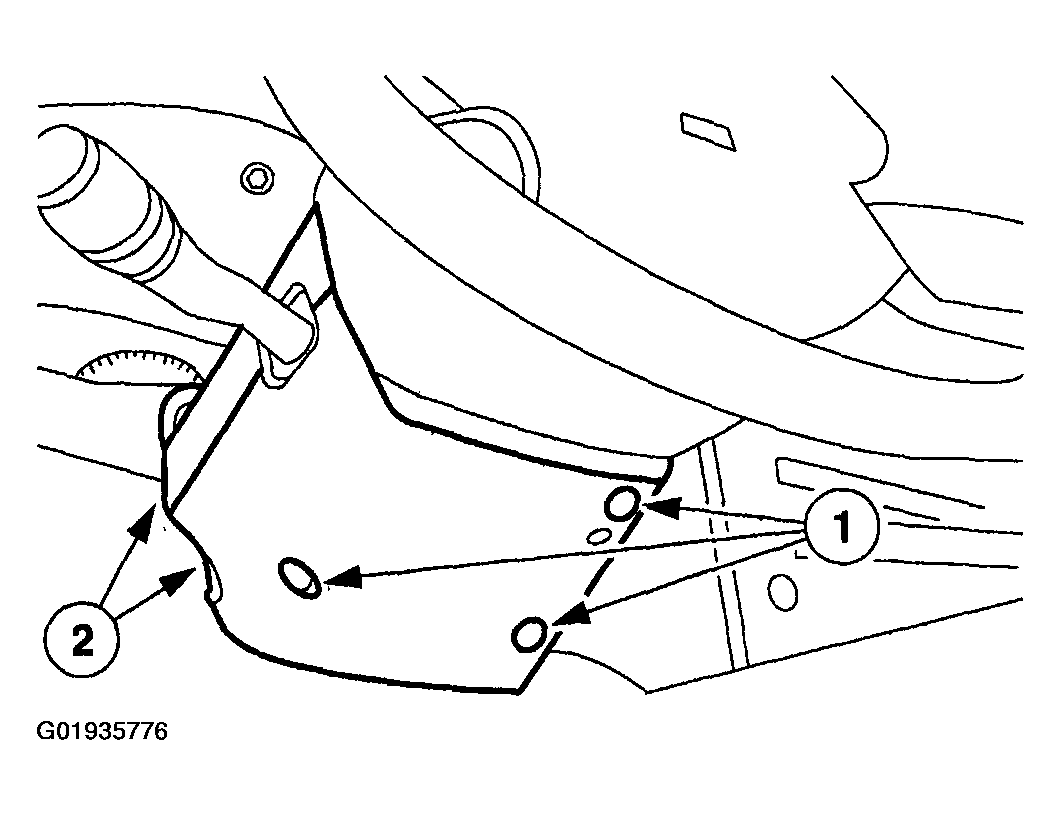

Fig 2: Removing Upper And Lower Steering Column Shrouds
Courtesy of MAZDA MOTORS CORP.
Remove the lower instrument panel steering column cover.
1. Remove the screws.
2. Remove the lower instrument panel steering column cover.

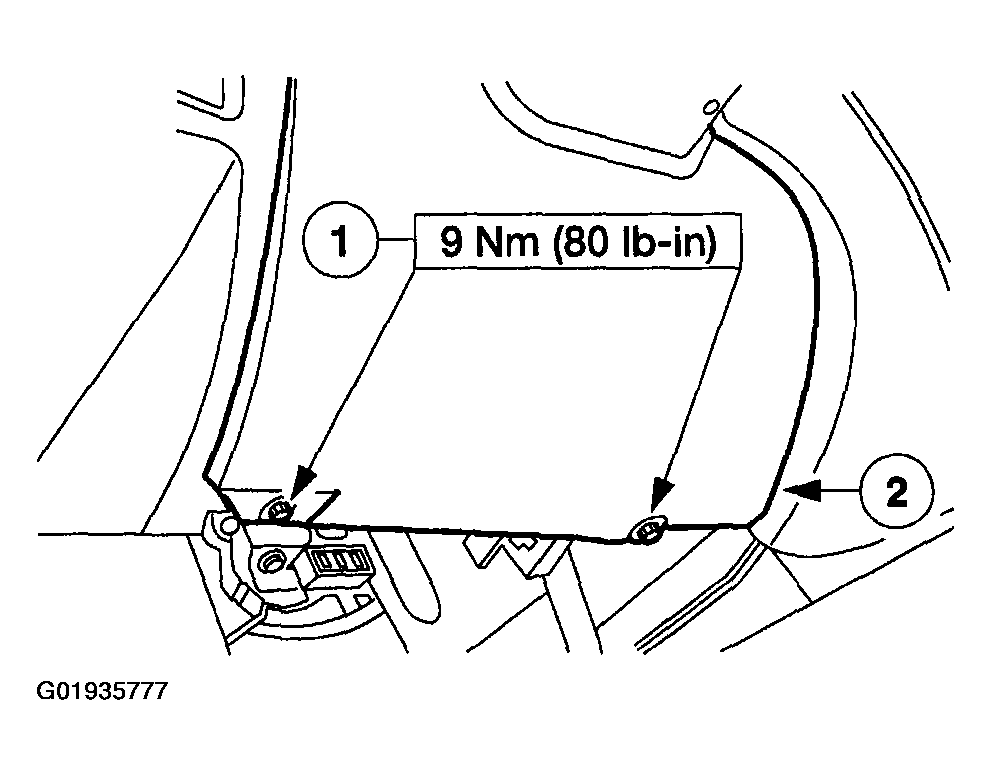

Fig 3: Removing Lower Instrument Panel Steering Column Cover Screw
Courtesy of MAZDA MOTORS CORP.
Remove the instrument panel steering column opening cover reinforcement.
1. Remove the bolts.
2. Remove the instrument panel steering column opening cover reinforcement.

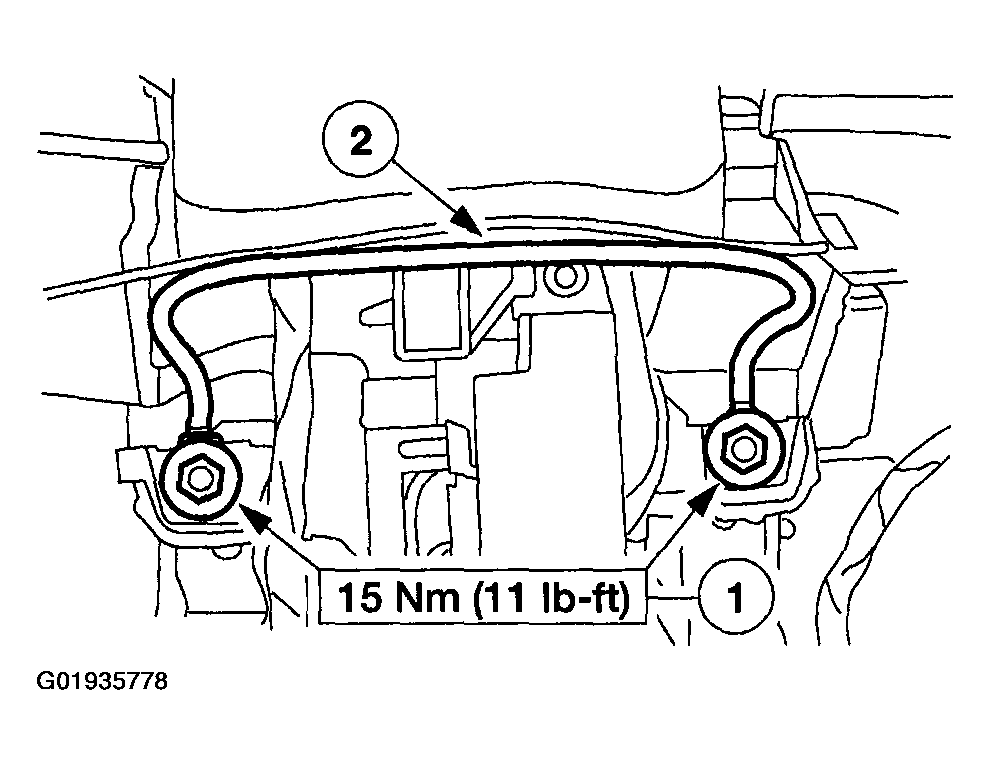

  Fig 4: Removing Instrument Panel Steering Column Opening Cover Reinforcement
  Courtesy of MAZDA MOTORS CORP.
  NOTE:
  - The steering wheel is shown removed for clarity.
Remove the anti-theft transceiver module.
1. Remove the screw from the bottom of the transceiver module.
  NOTE:
  - Only apply pressure or leverage below the key cylinder lower rib.
2. Disconnect the electrical connector and remove the module.

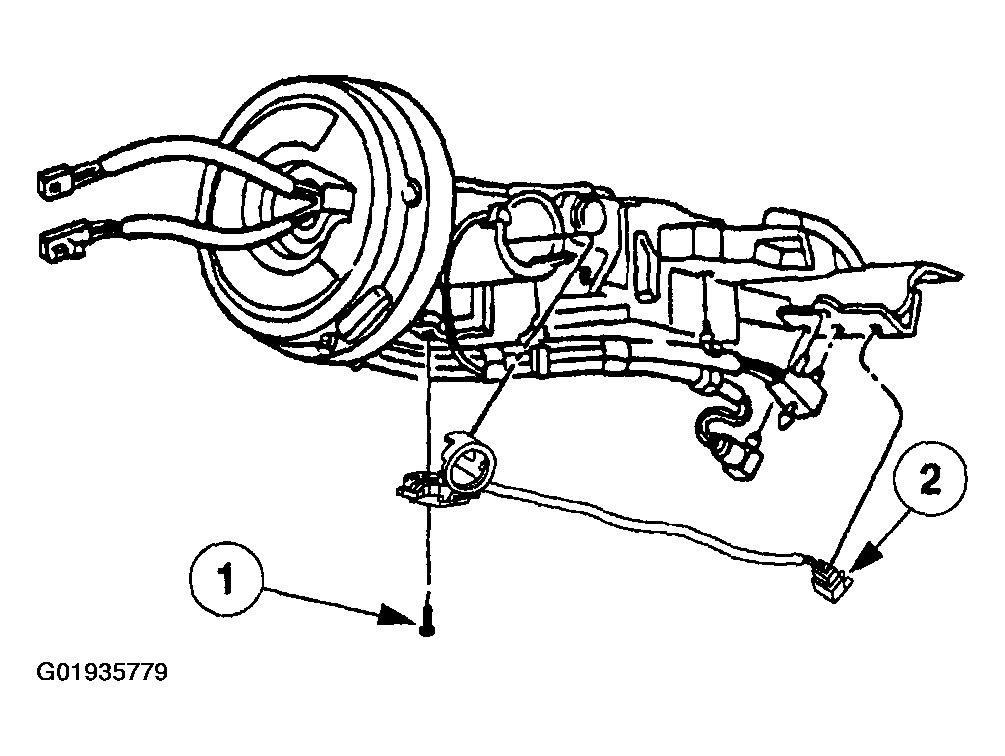

Fig 5: Disconnecting Electrical Connector
Courtesy of MAZDA MOTORS CORP.
To Install, reverse the removal procedure.
