Module Does Not Respond To The Diagnostic Tool - Restraint Control Module (RCM)

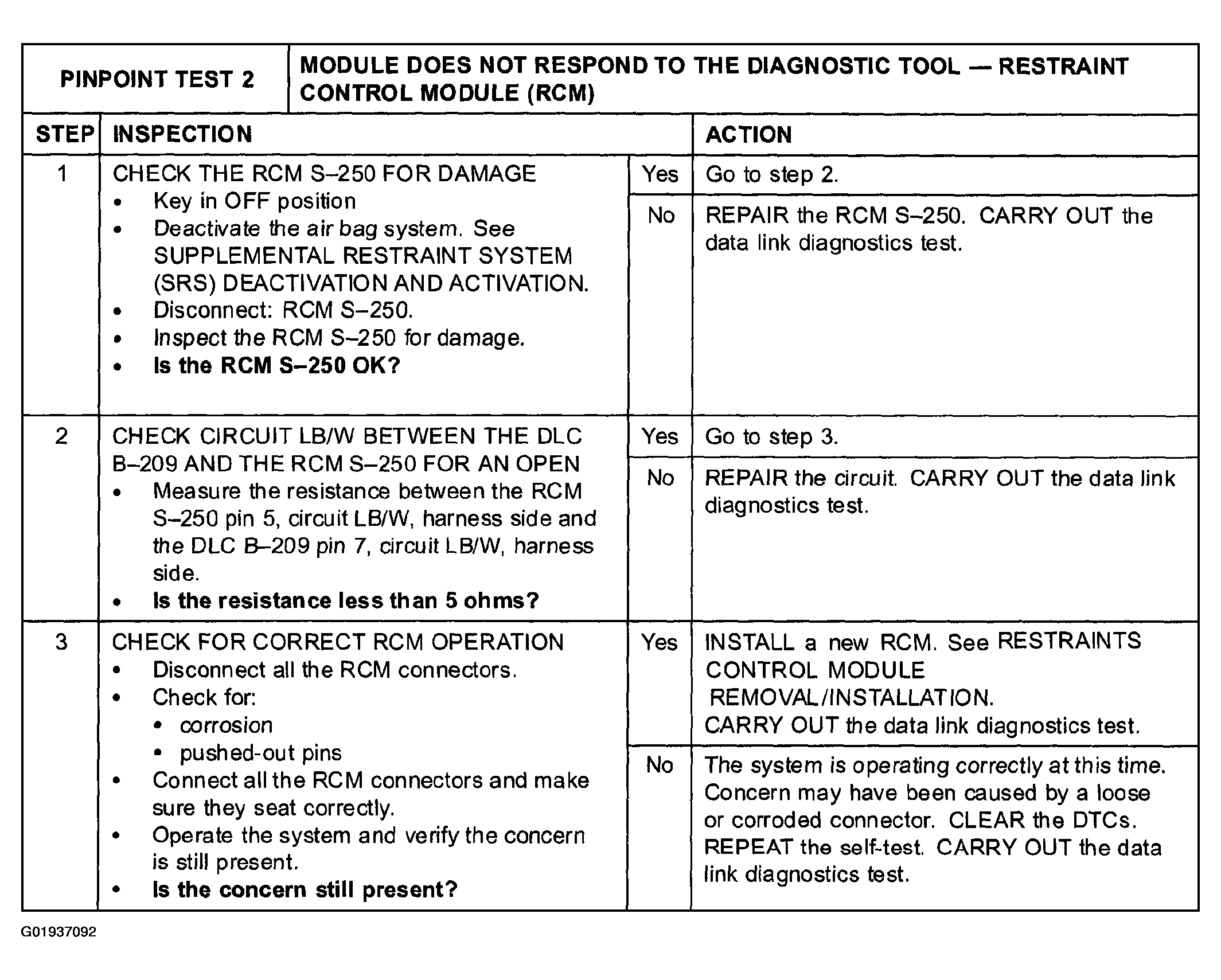

Fig 1: Pinpoint Test 2: Restraint Control Module Does Not Respond To Diagnostic Tool Inspection Table (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

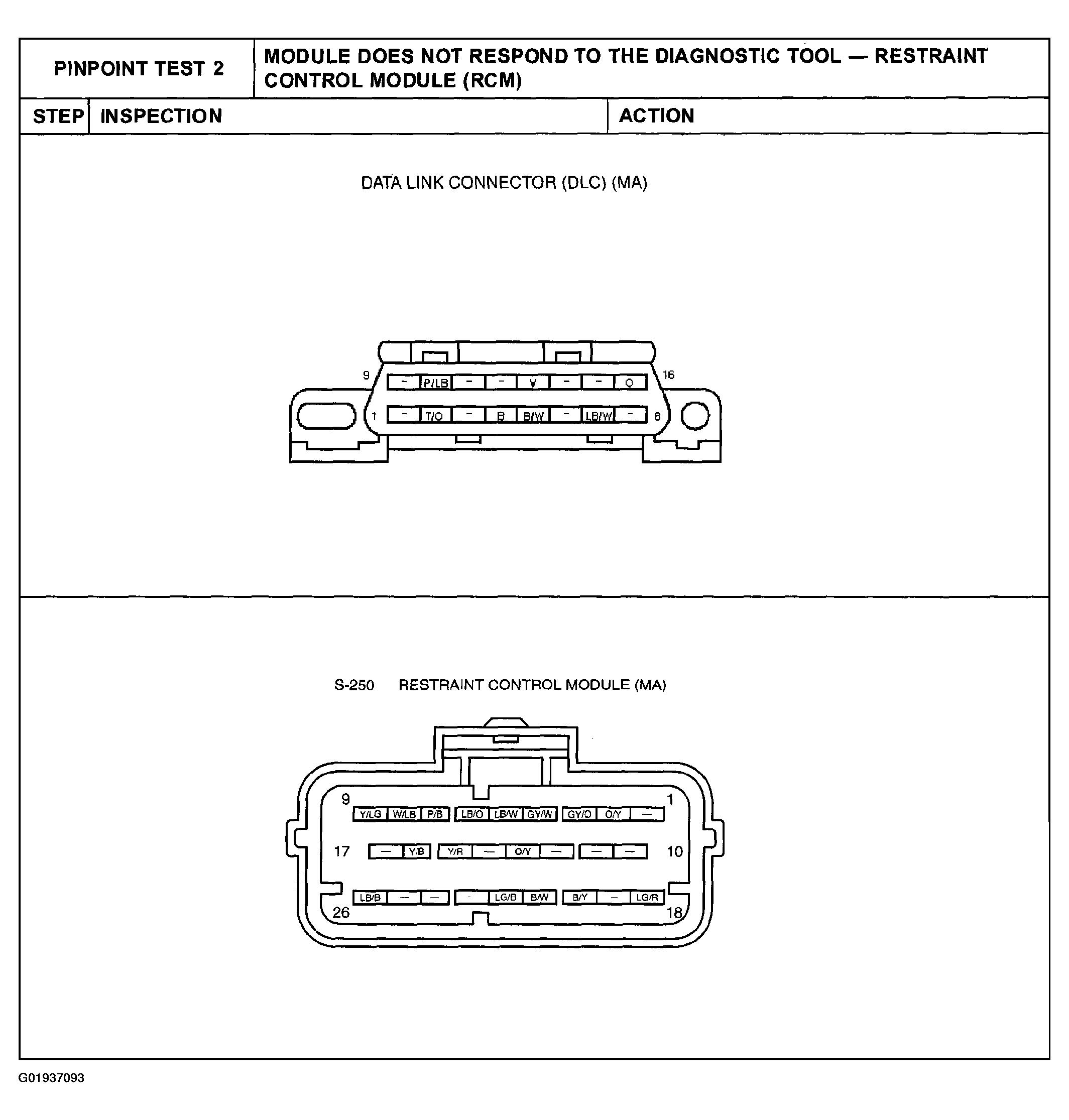

Fig 2: Identifying Data Link Connector (MA) And S-250 Restraint Control Module (MA) Connector Terminal Wire Color

Courtesy of MAZDA MOTORS CORP.
