No Module/Network Communication - Controller Area Network (Can)

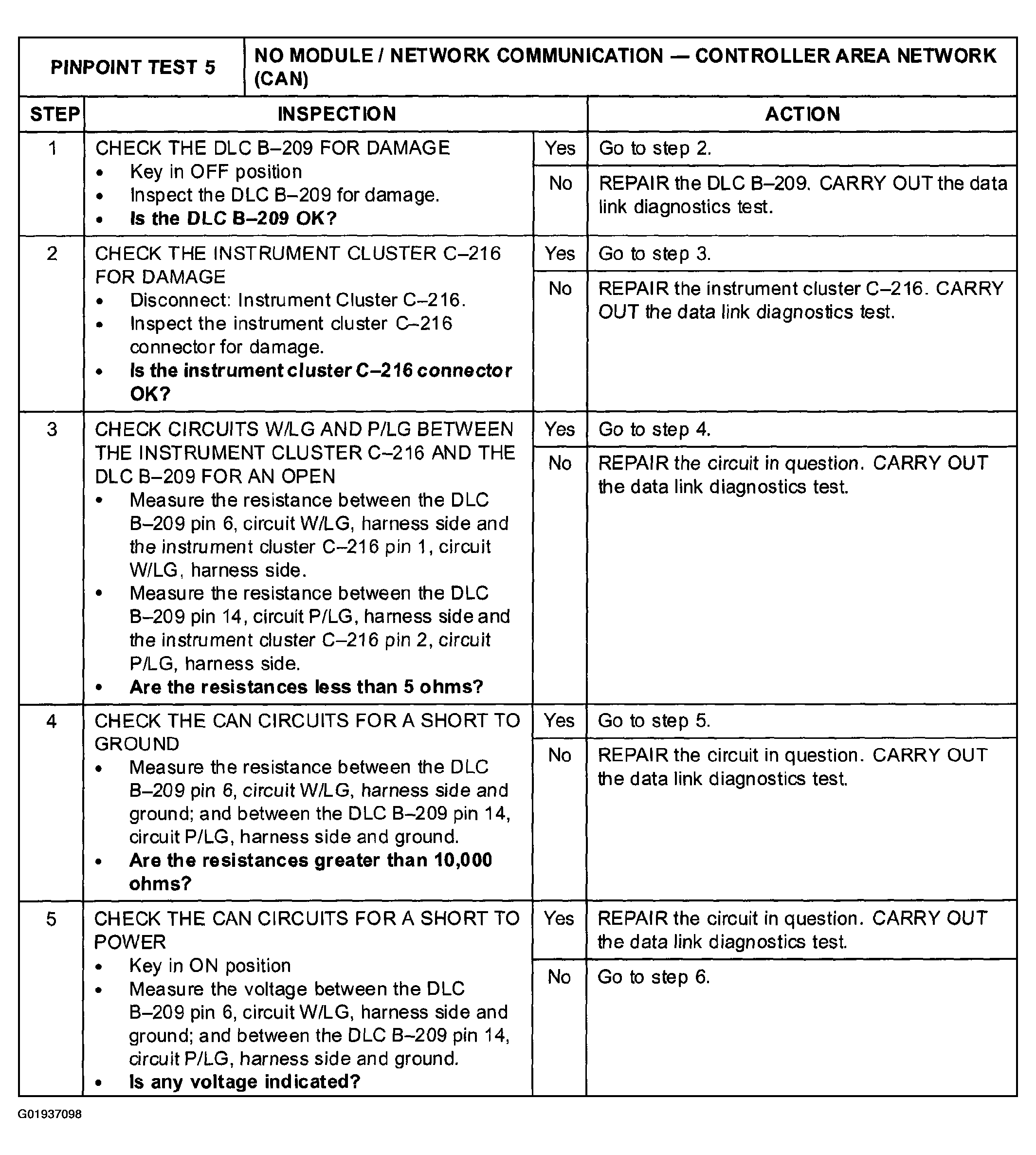

Fig 1: Pinpoint Test 5: No Module/Controller Area Network Communication Inspection Table (Steps 1-5)
Courtesy of MAZDA MOTORS CORP.

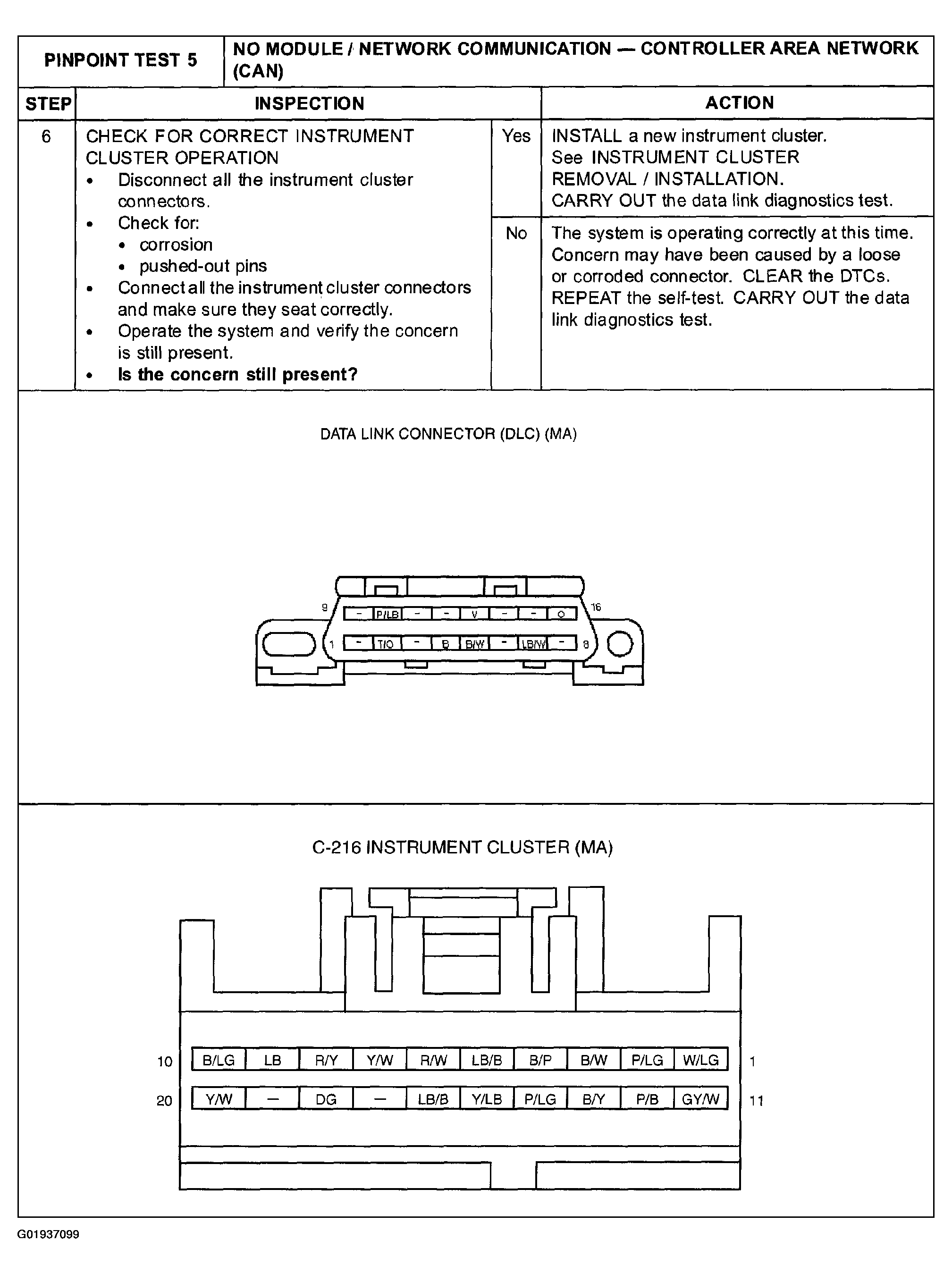

Fig 2: Pinpoint Test 5: No Module/Controller Area Network Communication Inspection Table (Step 6 & Data Link Connector And Instrument Cluster Connector Terminal Wire Color)
