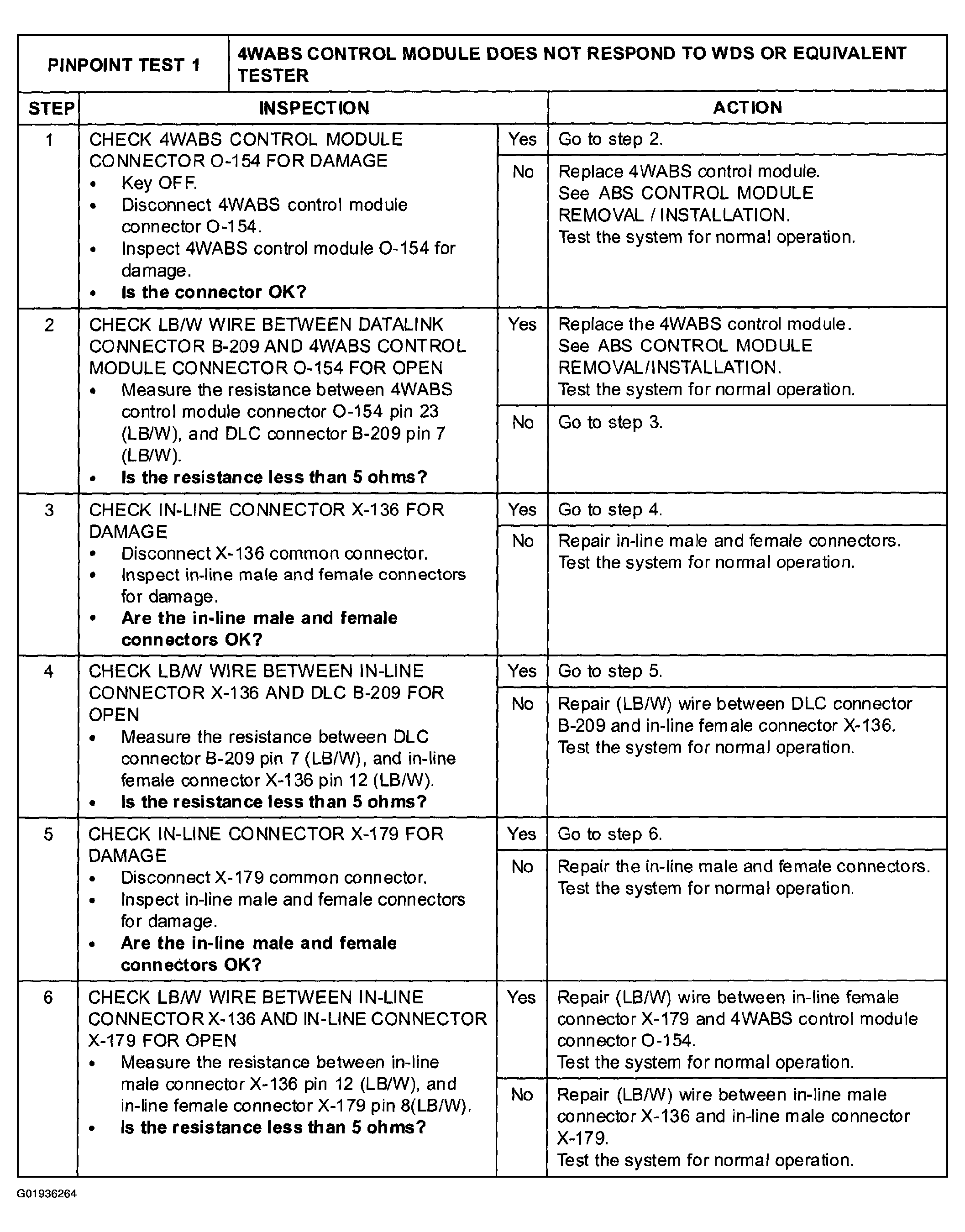

Module Communication Pinpoint Test 1: 4WABS Control Module Does Not Respond To WDS Or Equivalent Tester

Fig 1: Module Communication Pinpoint Test 1: 4WABS Control Module Does Not Respond To WDS Or Equivalent Tester

Courtesy of MAZDA MOTORS CORP.

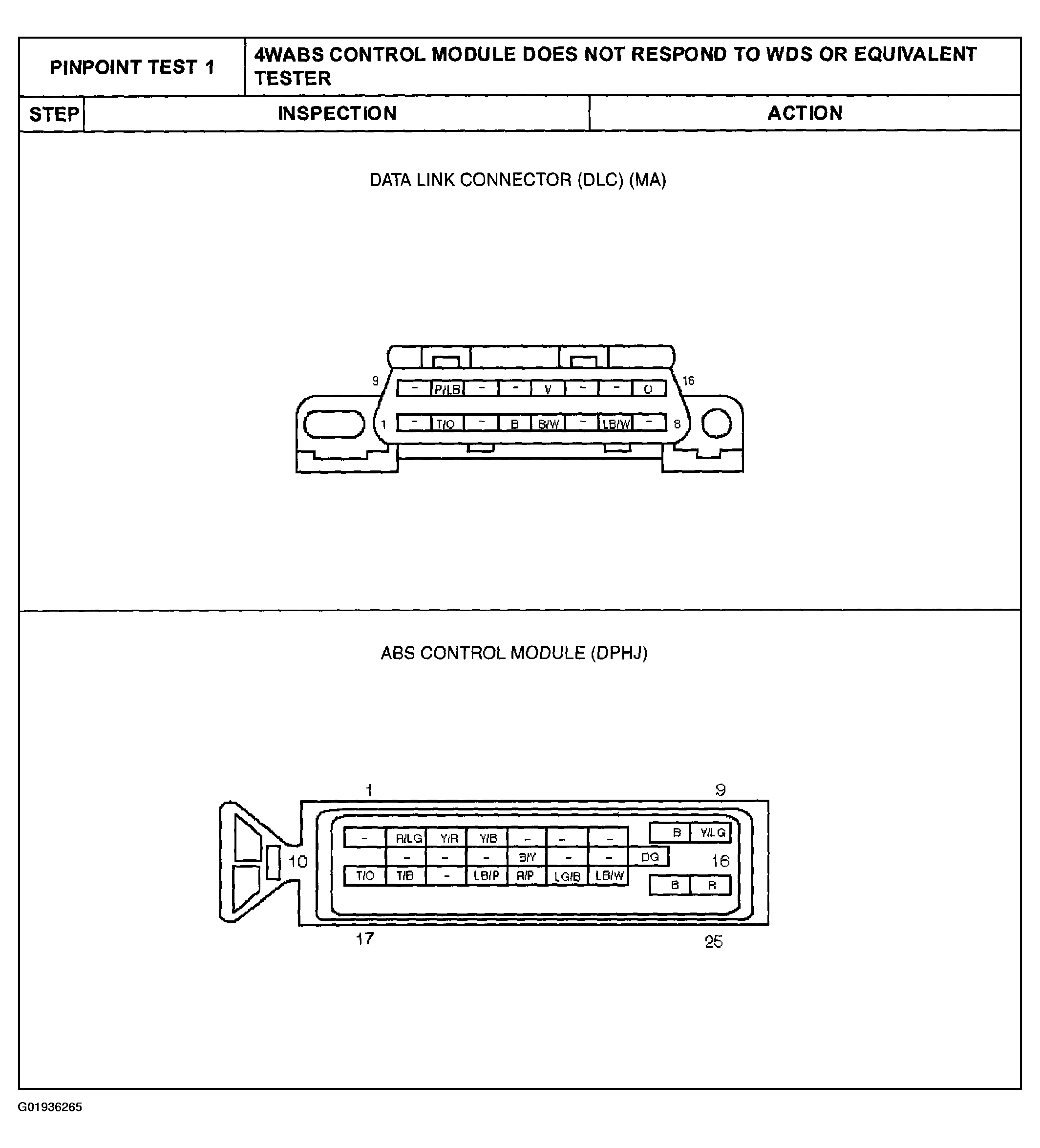

Fig 2: Identifying Data Link Connector & ABS Control Module Connector Terminals Wire Color

Courtesy of MAZDA MOTORS CORP.

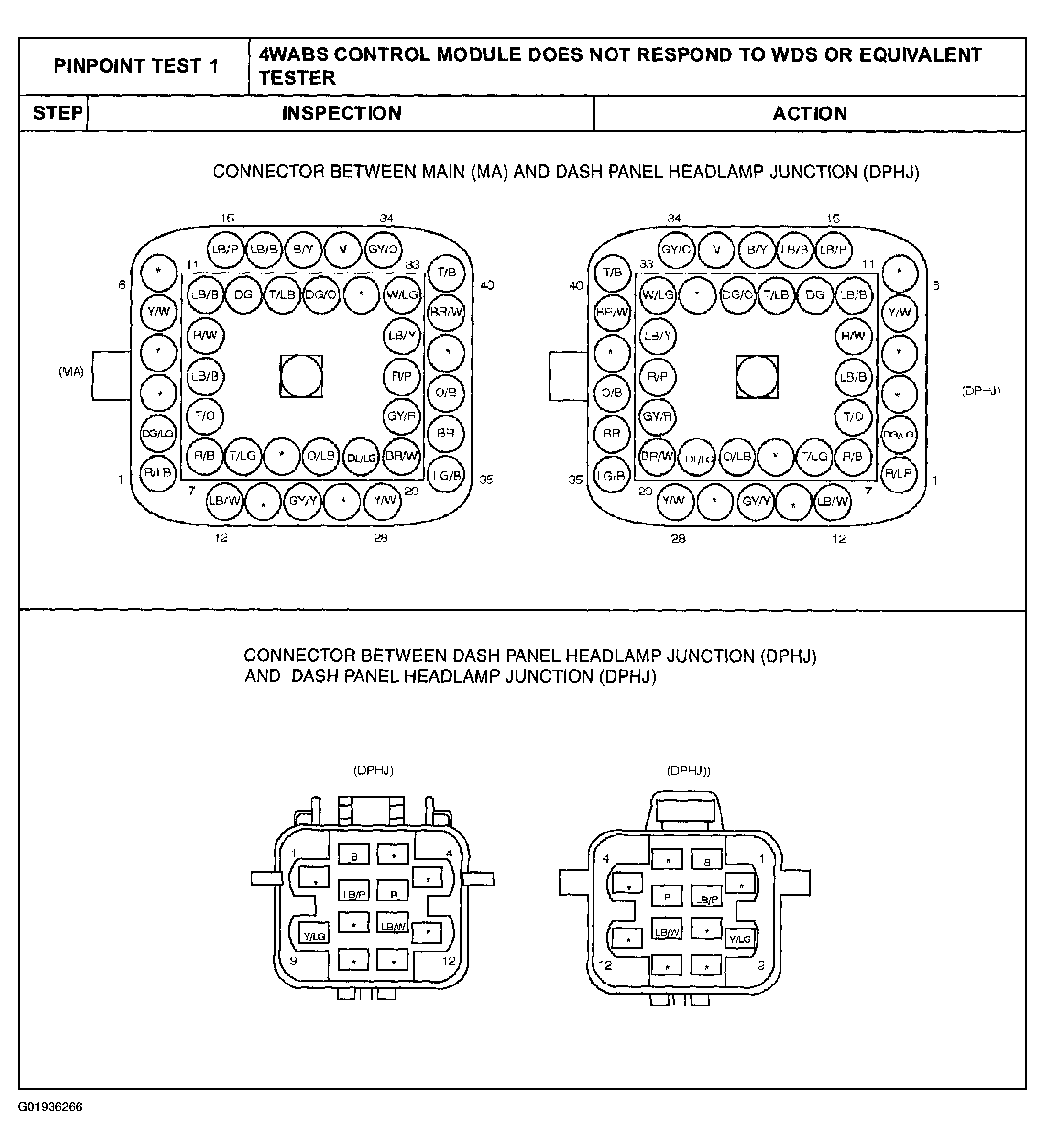

Fig 3: Identifying Connector Between Main And Dash Panel Headlamp Junction Terminals Wire Color

Courtesy of MAZDA MOTORS CORP.
