Cruise Control System Pinpoint Test 10: Flash Code 4-Speed Signal Circuit Failure

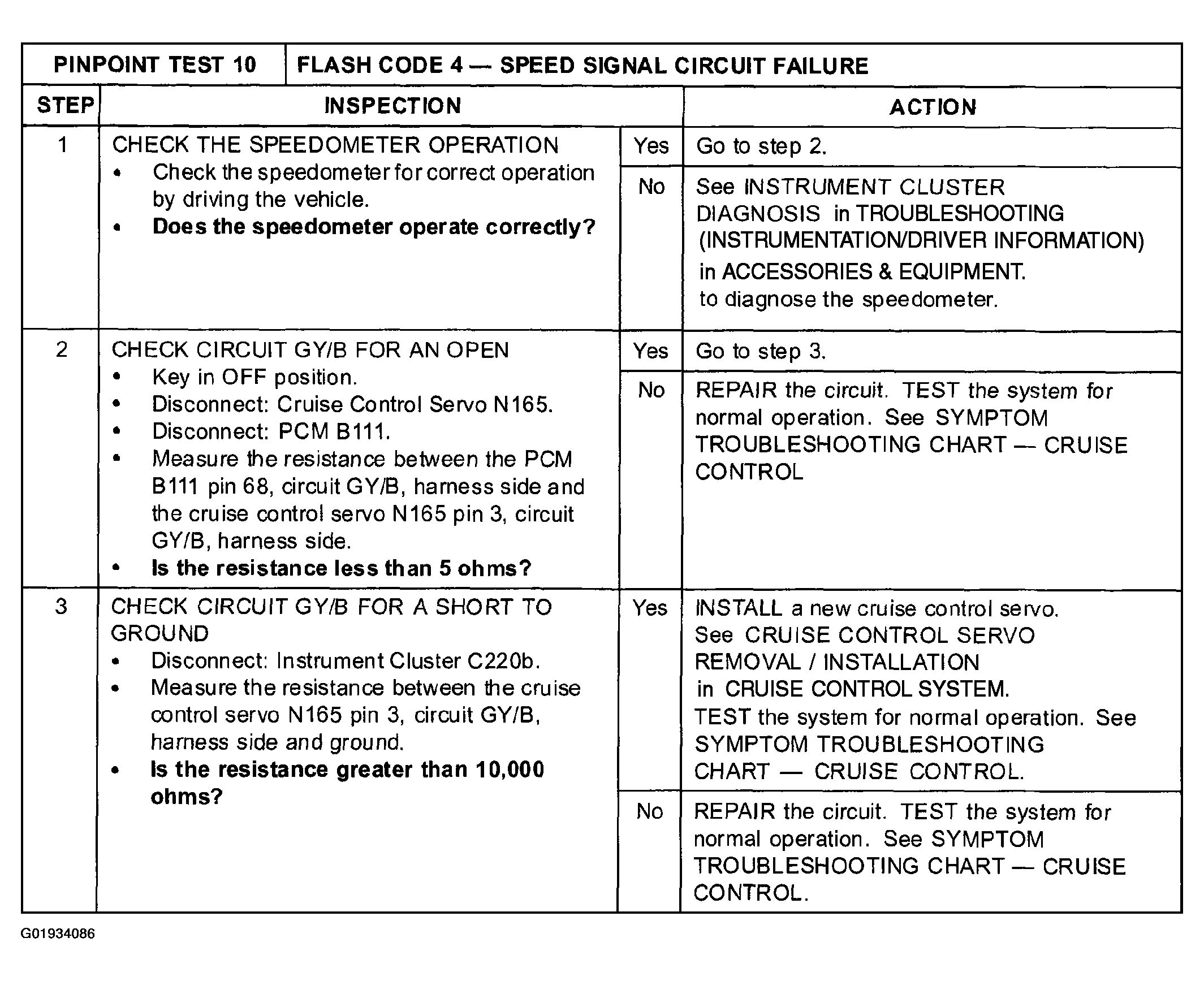

Fig 1: Cruise Control System Pinpoint Test 10: Flash Code 4 - Speed Signal Circuit Failure (Steps 1-3)
G01934086Courtesy of MAZDA MOTORS CORP.

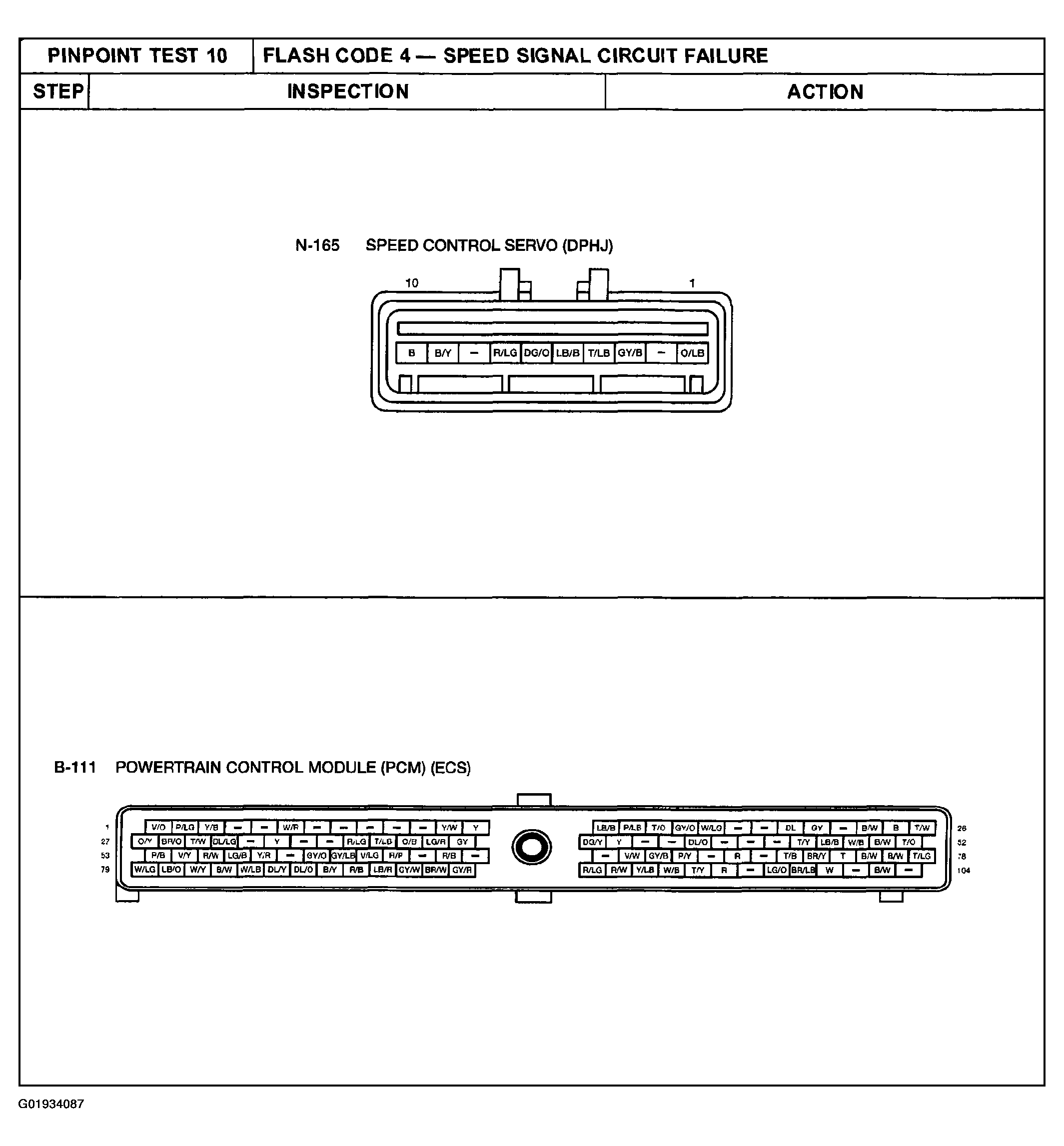

Fig 2: Cruise Control System Pinpoint Test 10: Identifying Speed Control Servo & PCM Connector Terminals
G01934087Courtesy of MAZDA MOTORS CORP.
