Cruise Control System Pinpoint Test 8: Flash Code 3-DEACTIVATOR Switch Failure

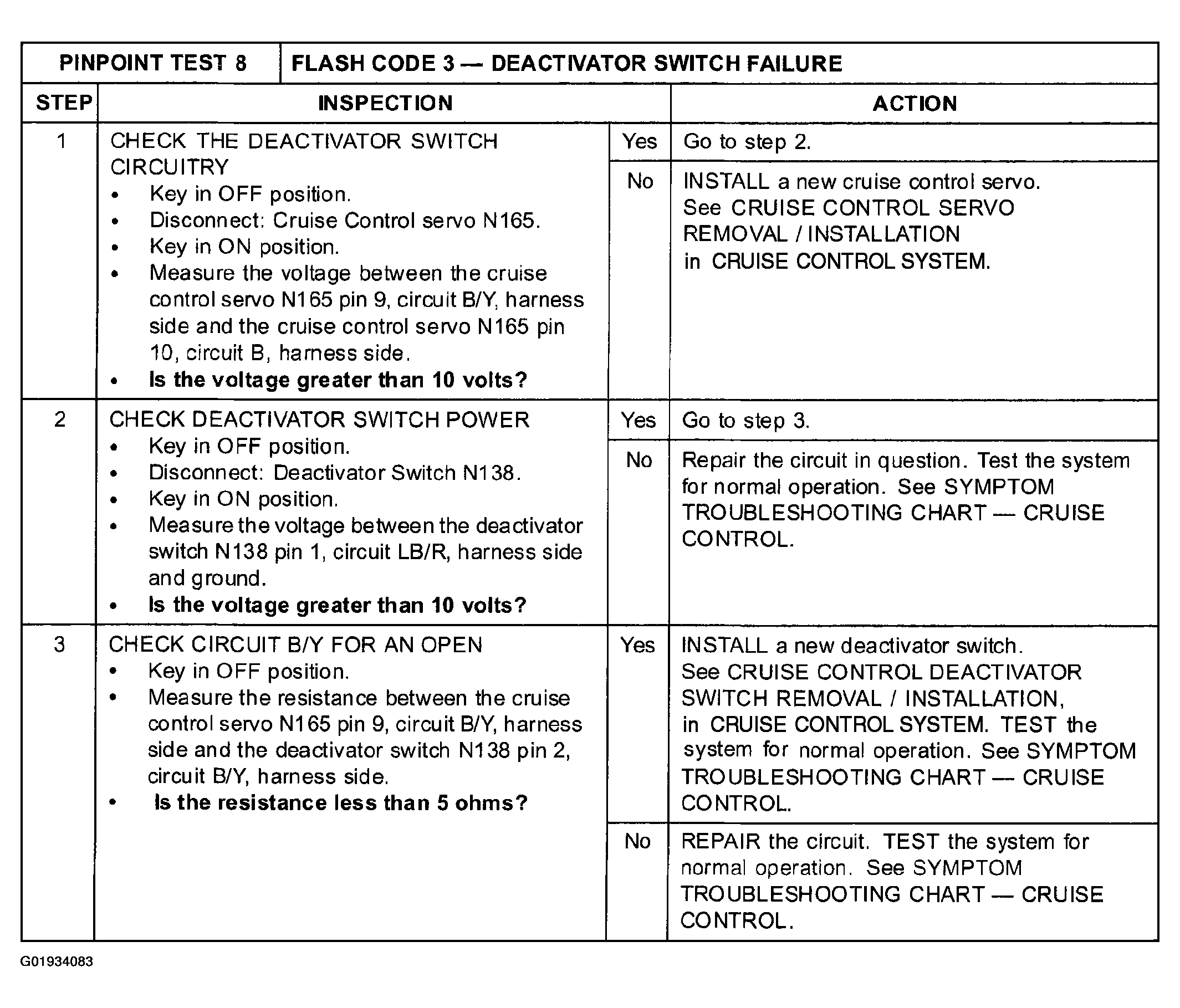

Fig 1: Cruise Control System Pinpoint Test 8: Flash Code 3 - Deactivator Switch Failure (Steps 1-3)
G01934083Courtesy of MAZDA MOTORS CORP.

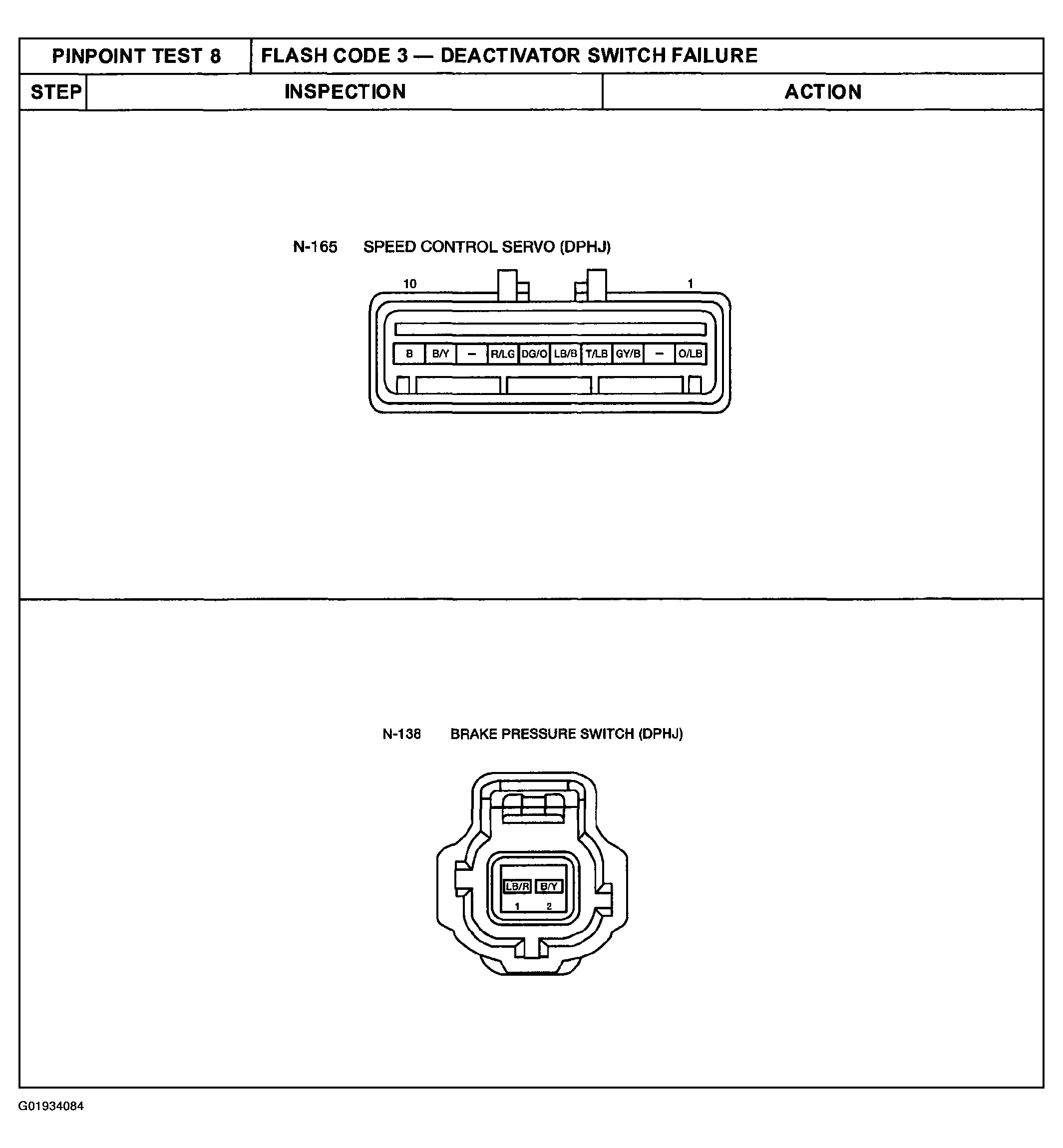

Fig 2: Cruise Control System Pinpoint Test 8: Identifying Speed Control Servo & Brake Pressure Switch Connector Terminals
G01934084Courtesy of MAZDA MOTORS CORP.
