Electronic Control Components

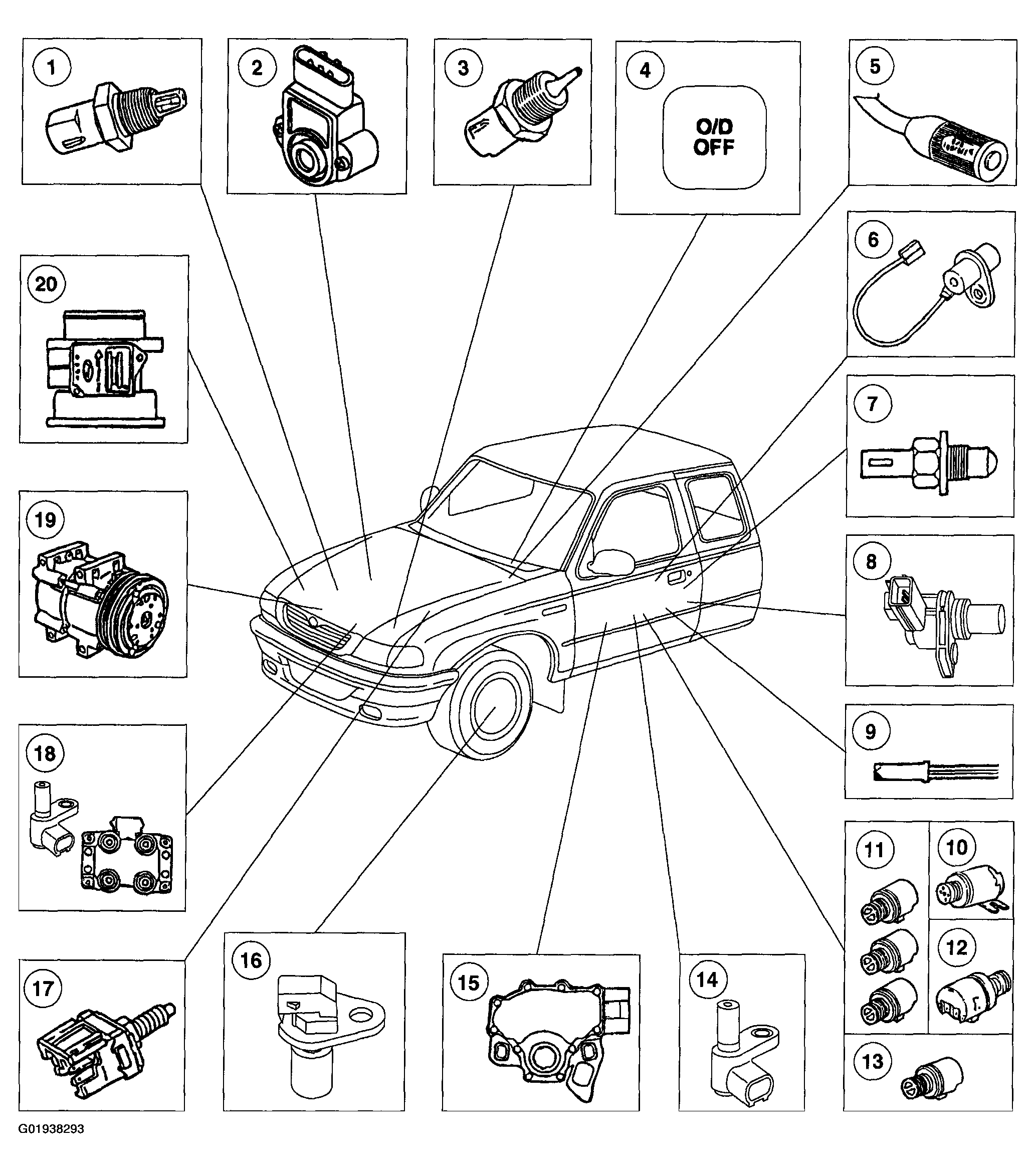

Fig 1: Electronic Control Components (1 Of 2)
G01938293Courtesy of MAZDA MOTORS CORP.

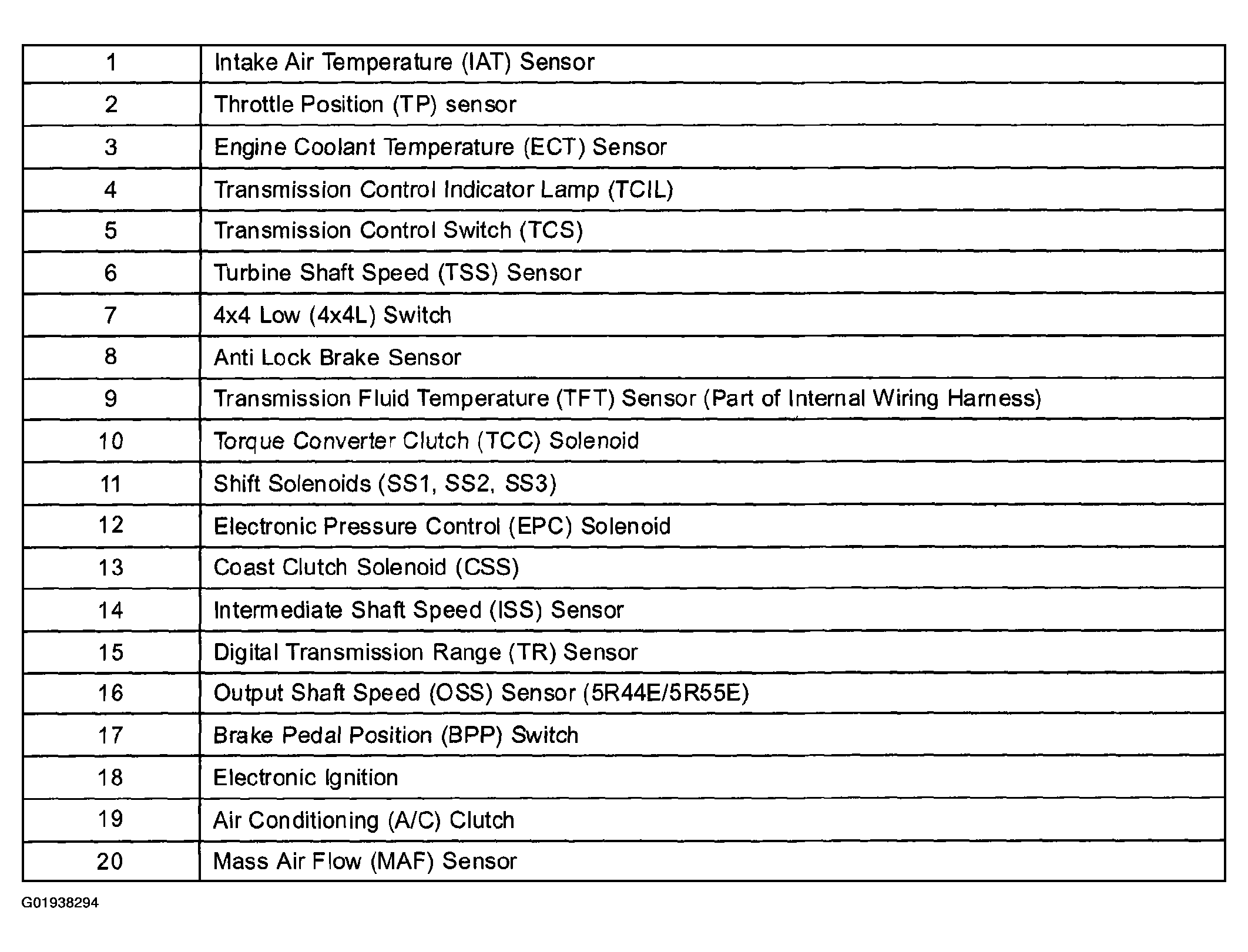

Fig 2: Electronic Control Components (2 Of 2)
G01938294Courtesy of MAZDA MOTORS CORP.
