Mirror Does Not Function With Switch Logic

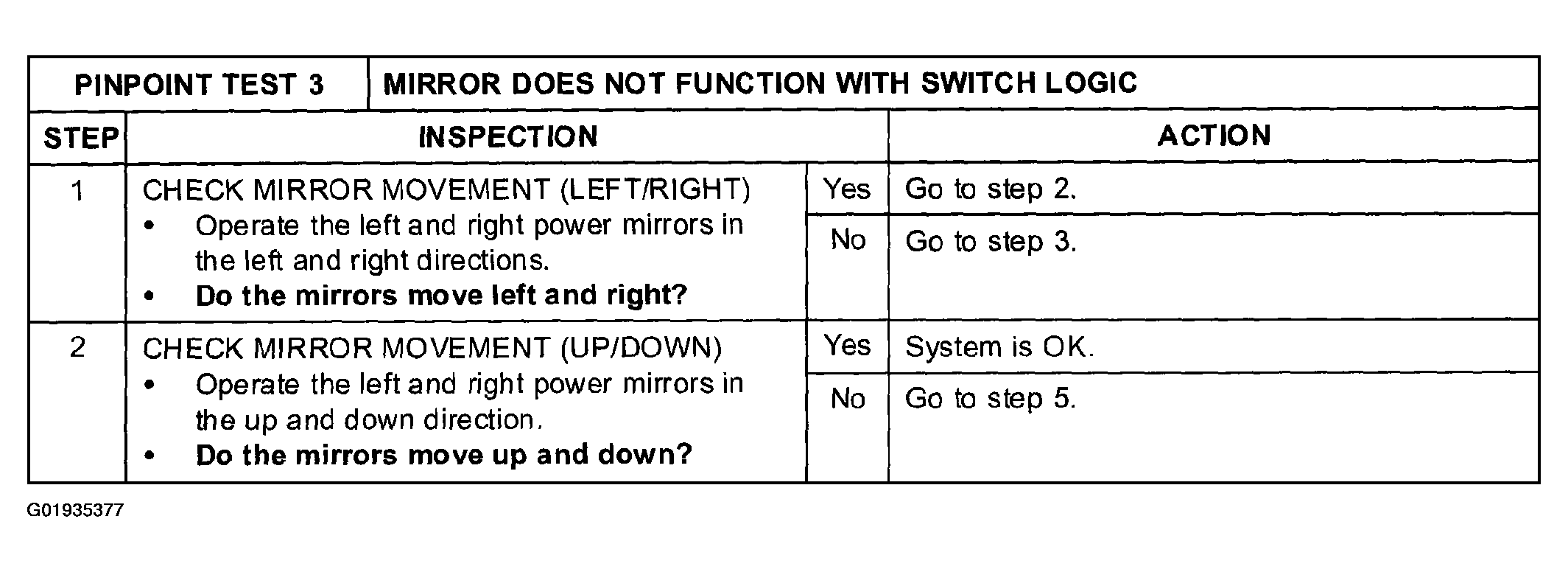

Fig 1: Pinpoint Test 3 - Mirror Does Not Function With Logic Switch Inspection Table (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

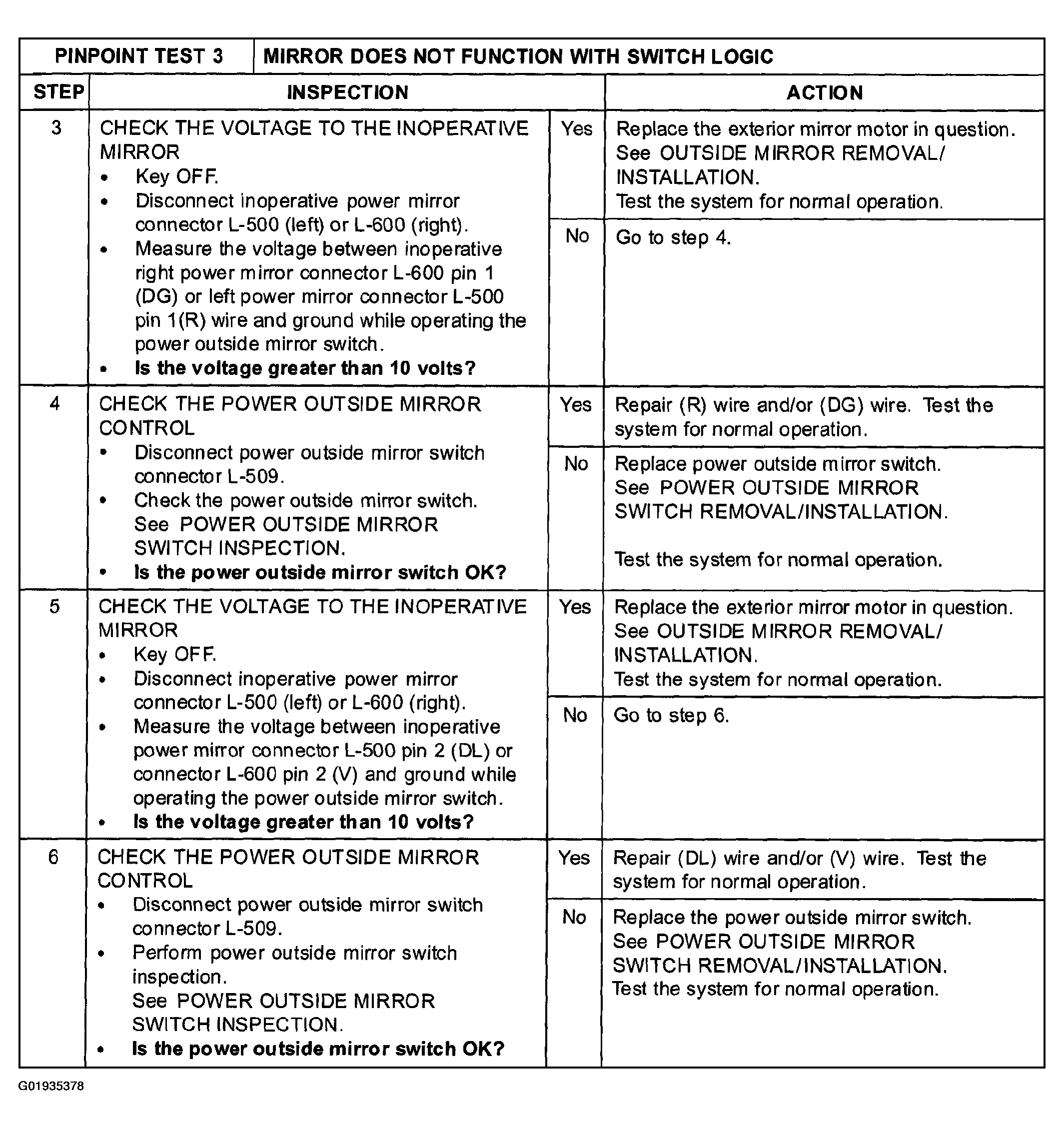

Fig 2: Pinpoint Test 3 - Mirror Does Not Function With Logic Switch Inspection Table (Steps 3-6)

Courtesy of MAZDA MOTORS CORP.

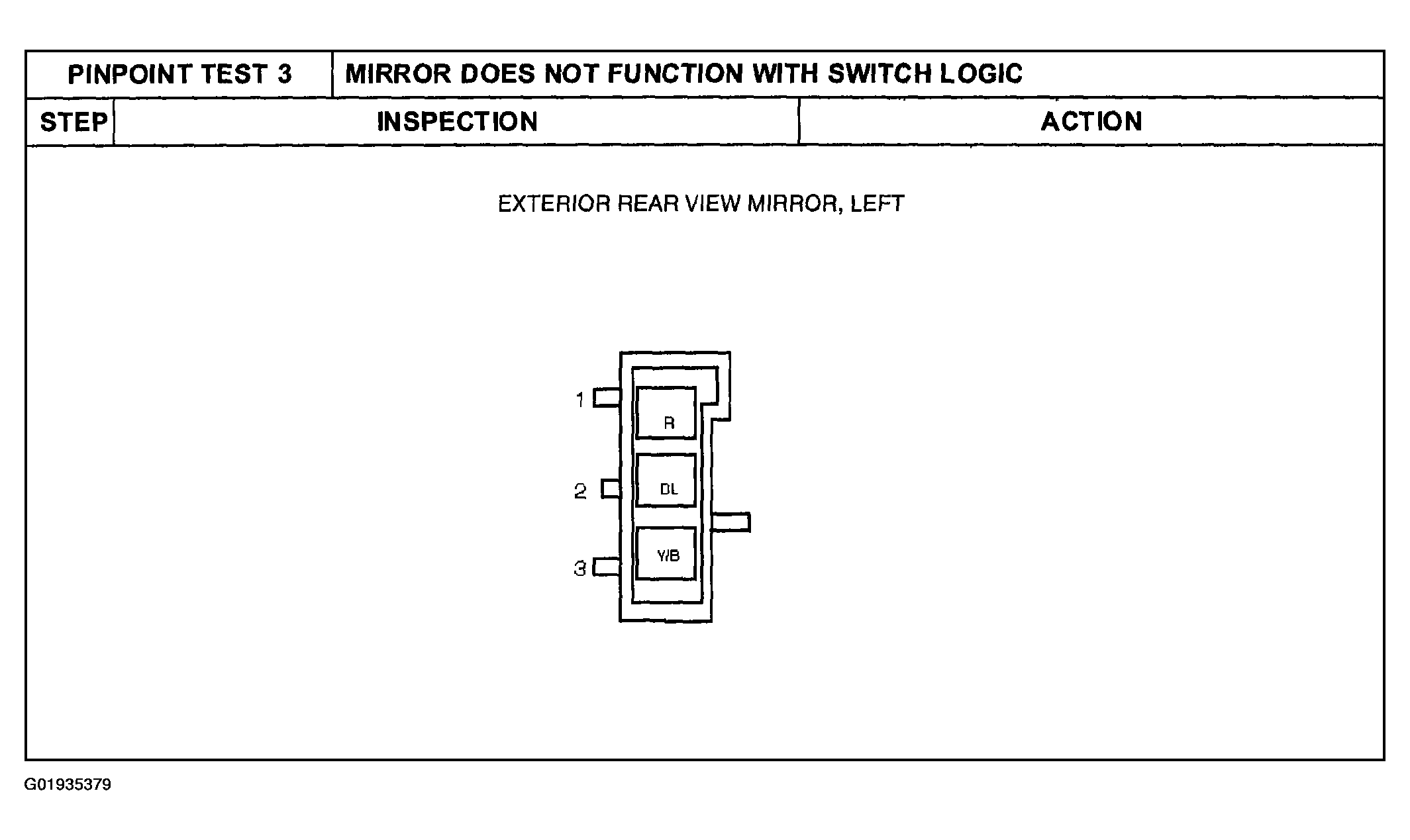

Fig 3: Identifying Left Exterior View Mirror Switch Connector Terminal Wire Color

Courtesy of MAZDA MOTORS CORP.

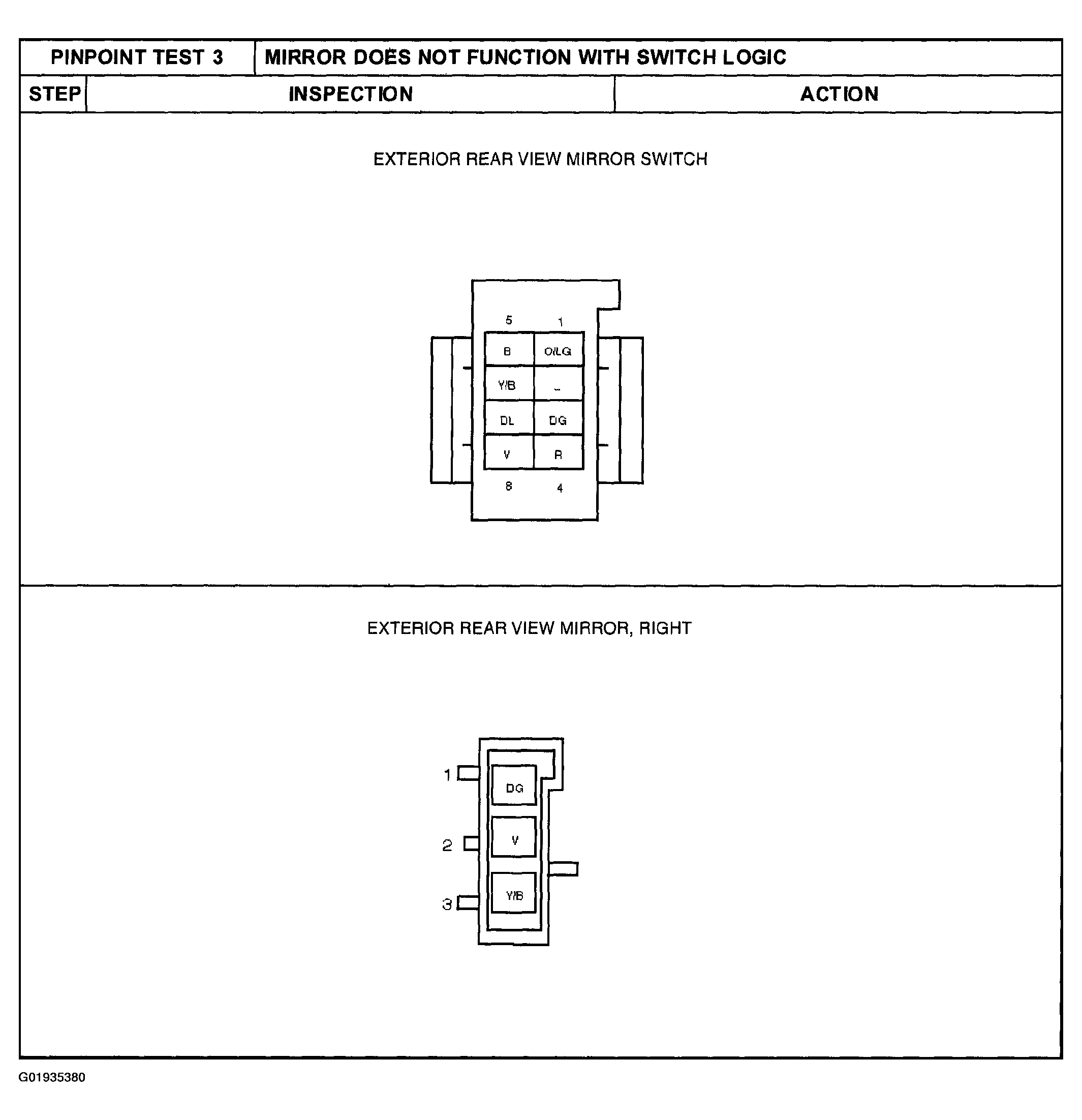

Fig 4: Identifying Exterior View Mirror Logic Switch Connector Terminal Wire Color

Courtesy of MAZDA MOTORS CORP.
