One Touch Down Feature Is Inoperative

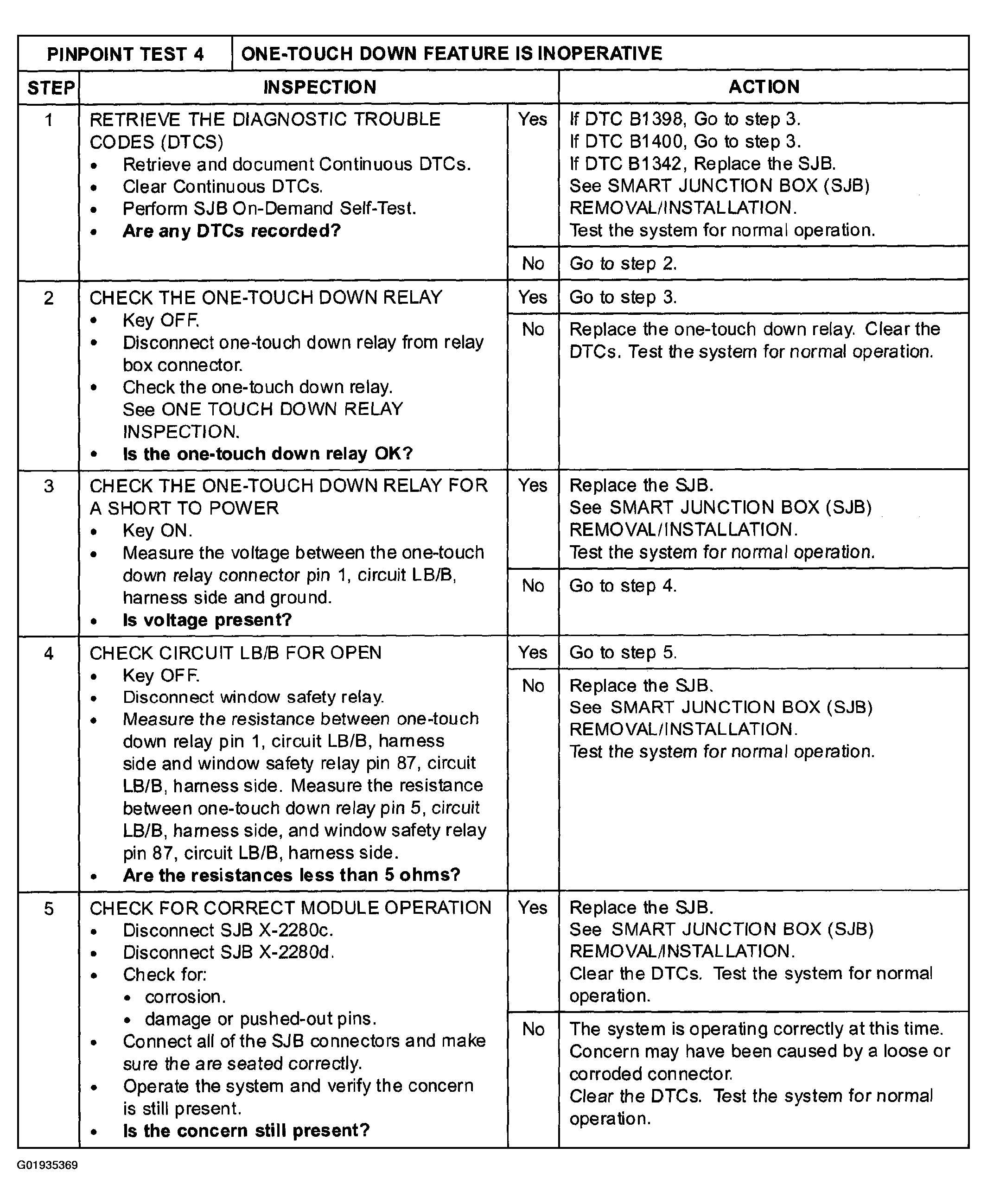

Fig 1: Pinpoint Test 4 - One Touch Down Feature Inoperative Inspection Table

Courtesy of MAZDA MOTORS CORP.

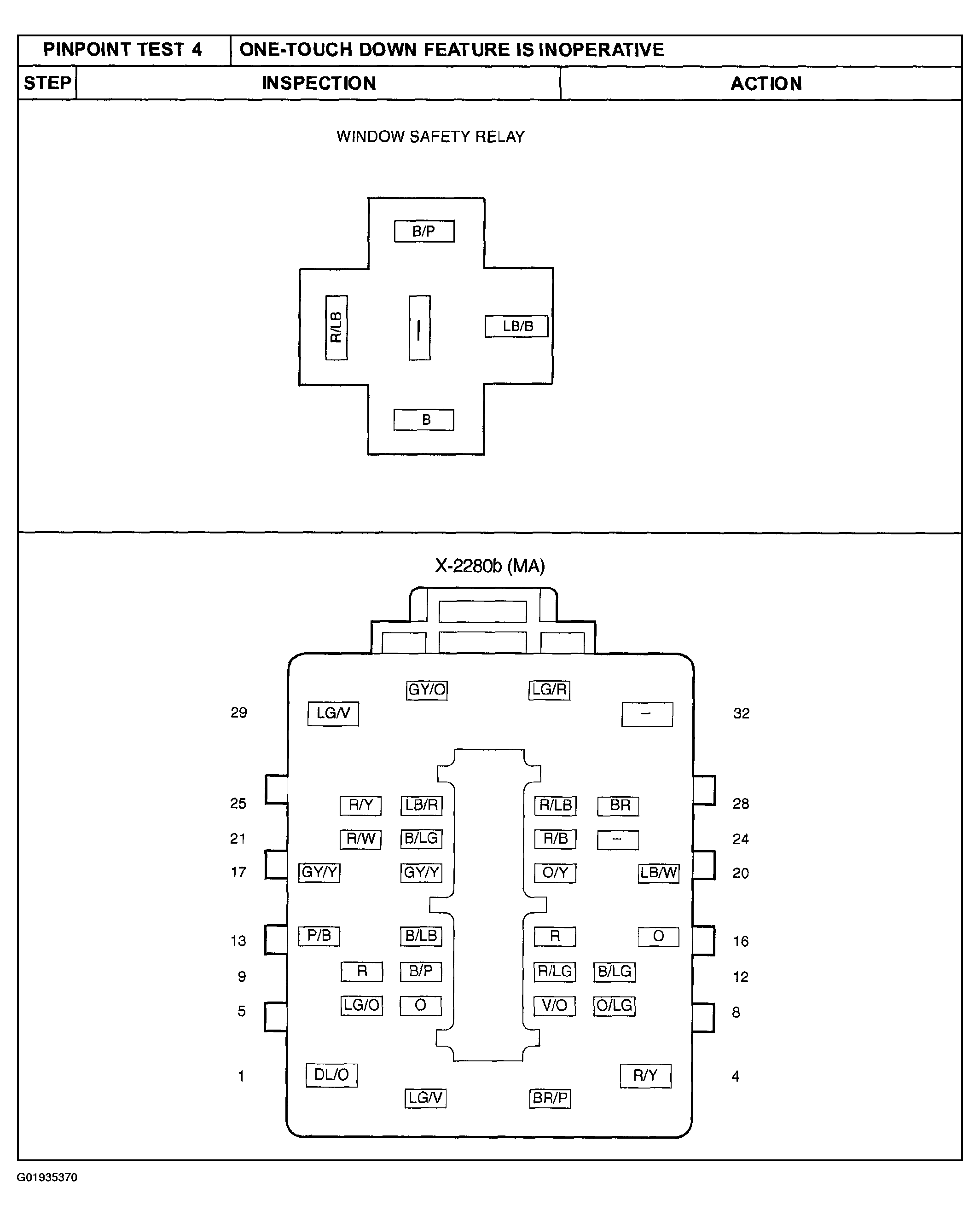

Fig 2: Identifying Window Safety Relay And X-2280b Connector Terminal Wire Color

Courtesy of MAZDA MOTORS CORP.

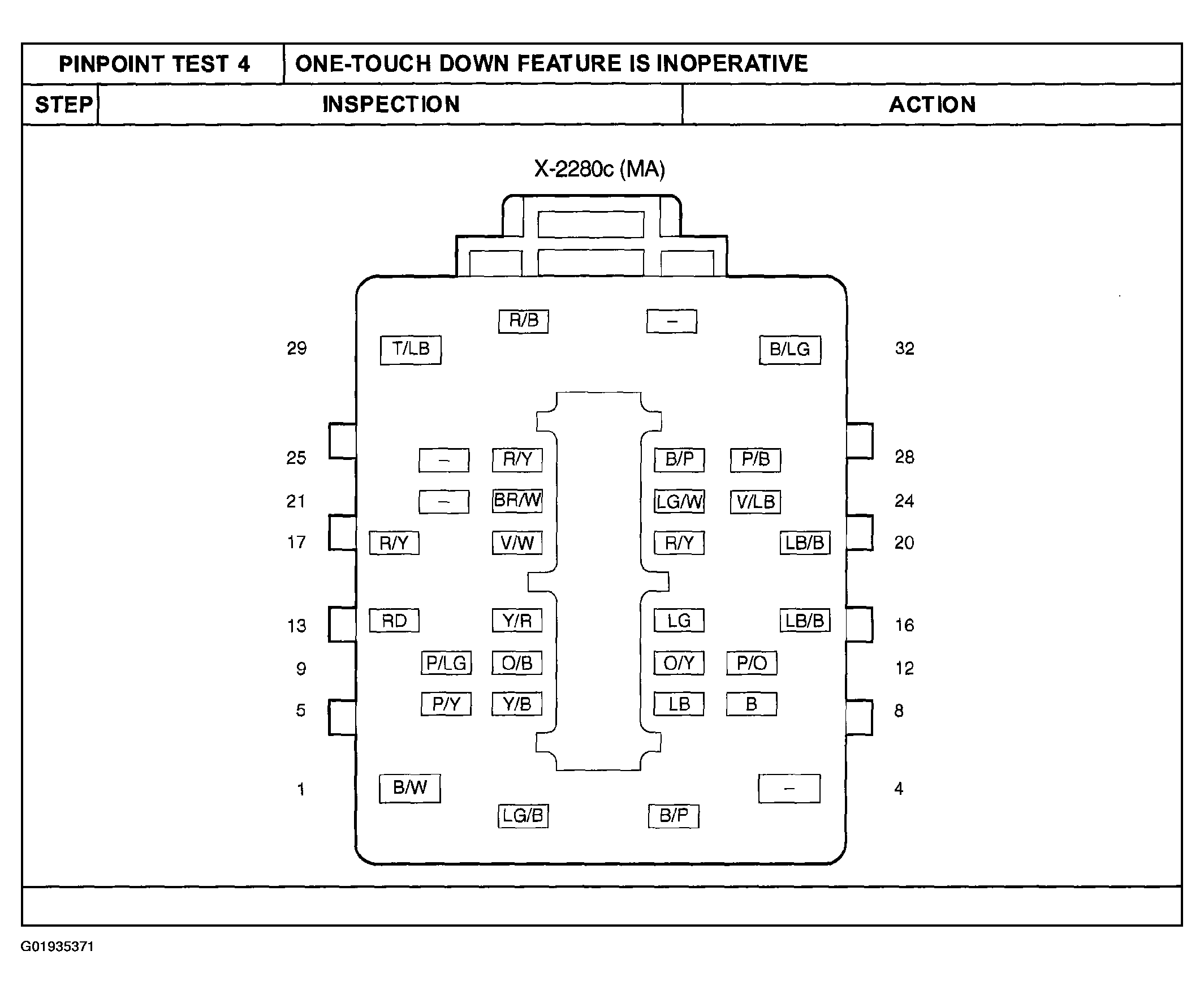

Fig 3: Identifying X-2280c Connector Terminal Wire Color

Courtesy of MAZDA MOTORS CORP.
