Transfer Case Shift Control Module Removal / Installation

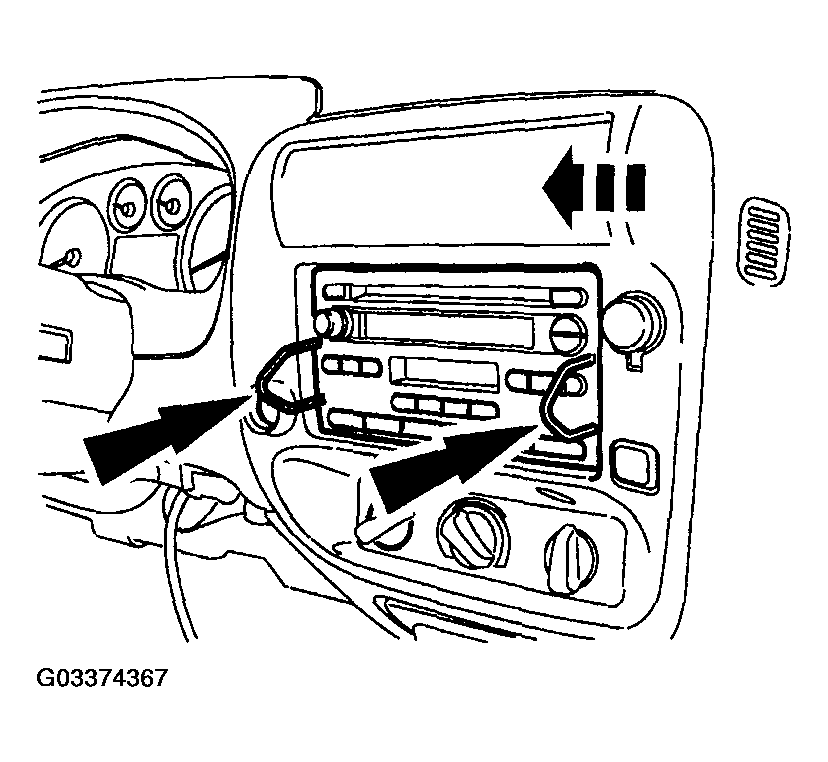

Fig 1: Removing Audio Unit

Courtesy of MAZDA MOTORS CORP.

1. Remove the audio unit.
   • Insert the removal tool.
   • Remove and support the audio unit.

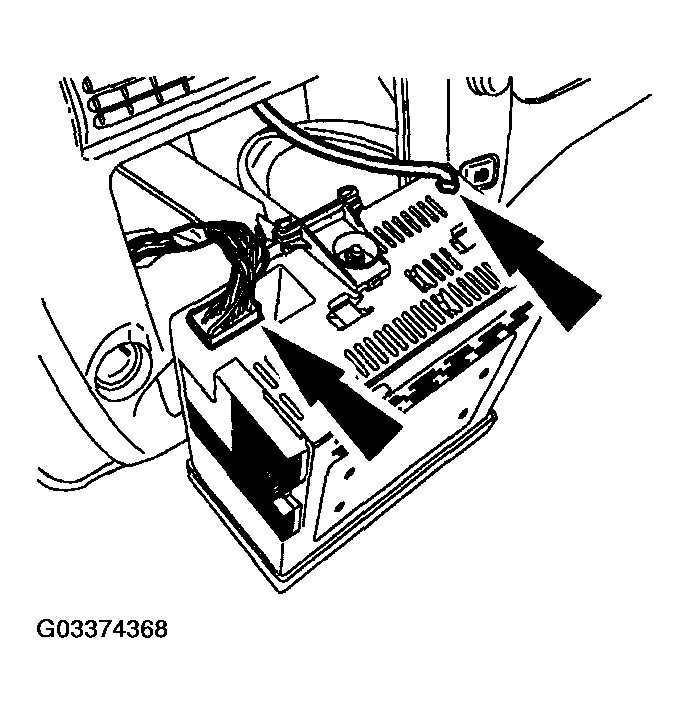

     Fig 2: Disconnecting Audio Unit Electrical Connector And Antenna Cable

     Courtesy of MAZDA MOTORS CORP.
2. Disconnect the audio unit electrical connector and antenna cable.

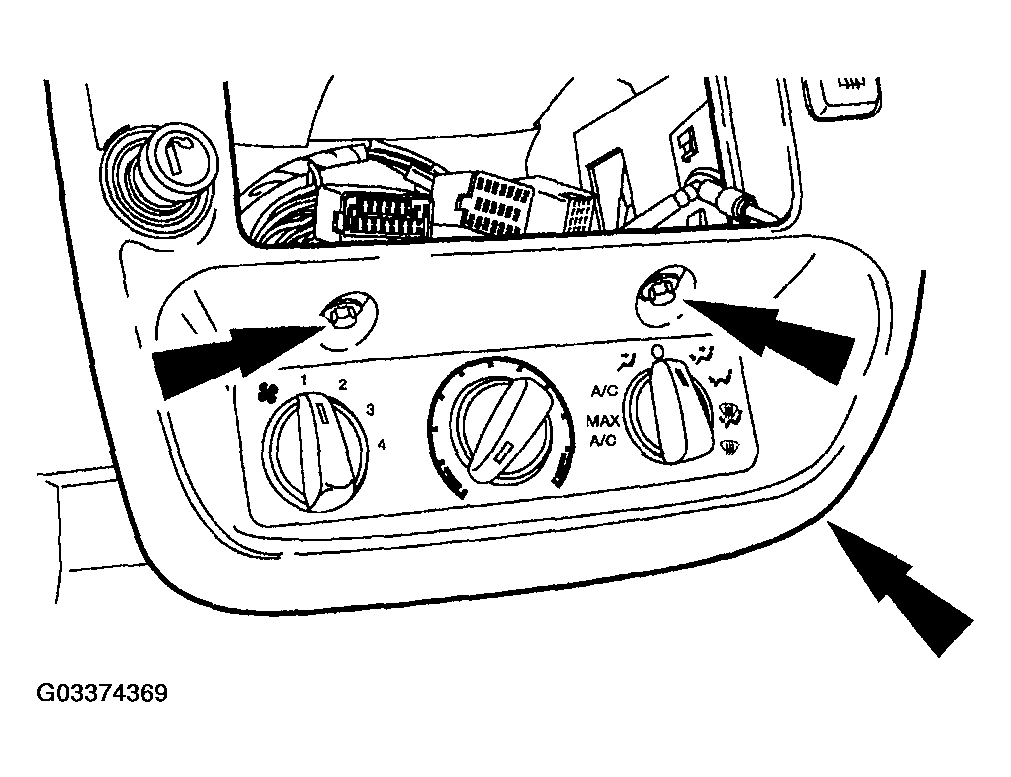

   Fig 3: Locating Screws

   Courtesy of MAZDA MOTORS CORP.
3. Remove the screws. Disengage the spring clips. Remove the instrument panel finish panel.

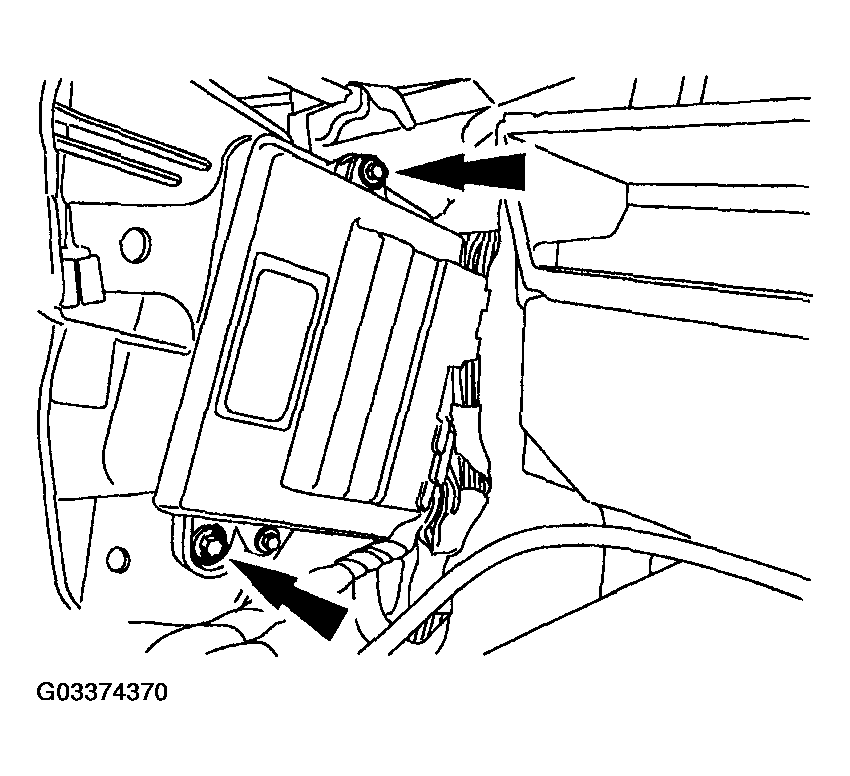

   Fig 4: Removing 4X4 Control Module

   Courtesy of MAZDA MOTORS CORP.
4. Remove the 4X4 control module.
   1. Disengage the locking tangs and remove the harness connectors.
   2. Remove the screws.
   3. Remove the 4X4 control module.
5. Install in reverse order of removal.
