Transfer Case Shift Control Switch Removal / Installation

Remove the mode select switch (MSS) knob.

Fig 1: Removing Mode Select Switch Knob
Courtesy of MAZDA MOTORS CORP.
Remove the audio unit .
Remove the screws and pull out the instrument panel center finish panel out of the instrument panel.

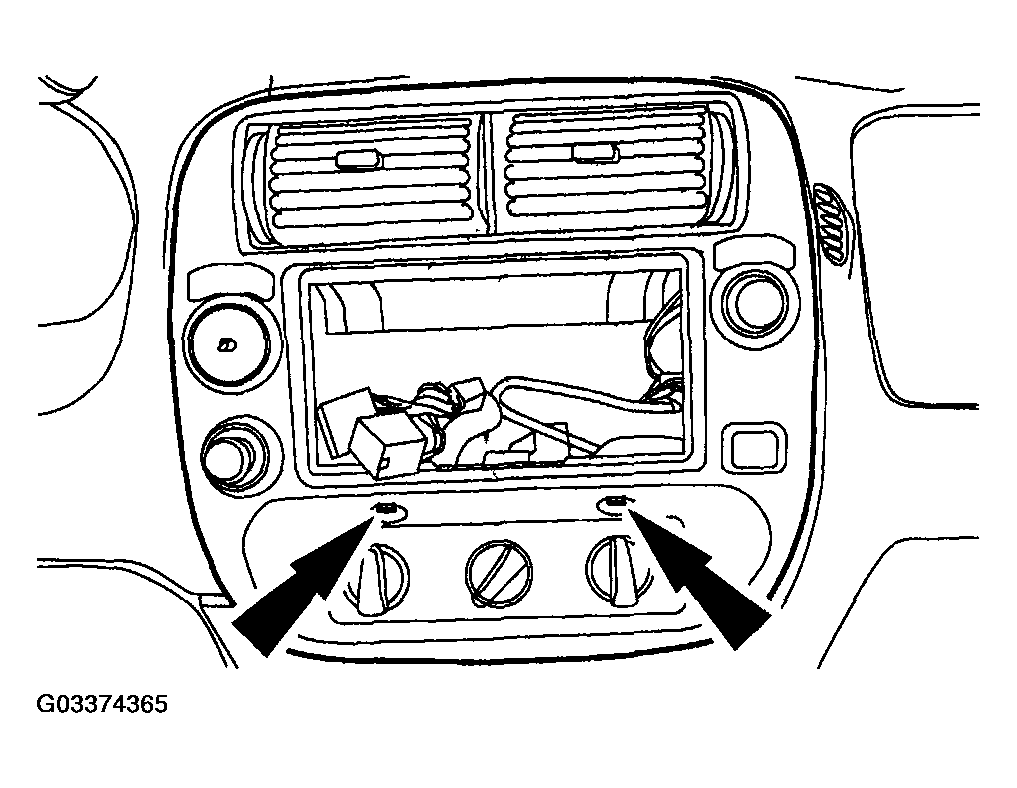

Fig 2: Removing Screws
Courtesy of MAZDA MOTORS CORP.
Remove the two screws retaining the switch, and remove the switch.

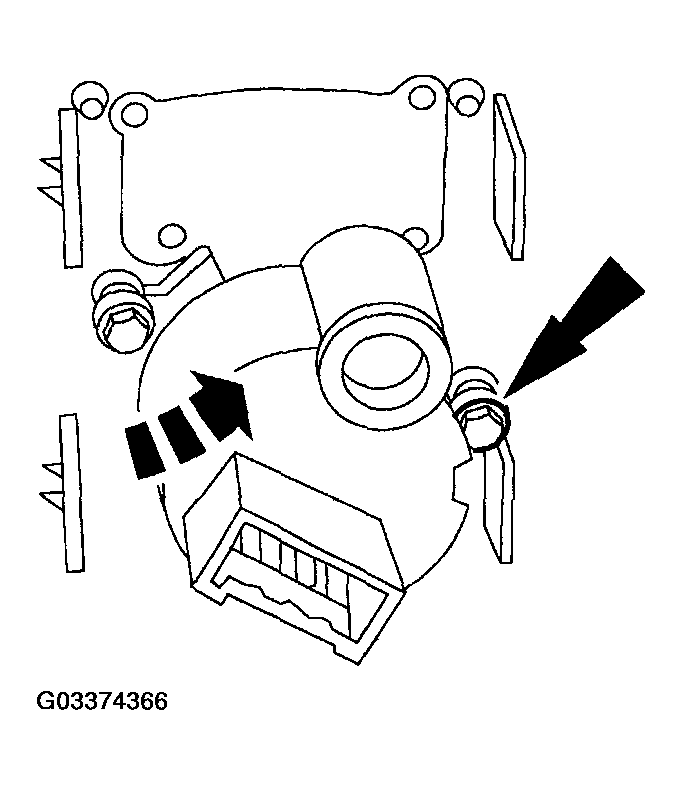

Fig 3: Removing Switch
Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal.
