Transfer Case Shift Motor Encoder Assembly Removal / Installation

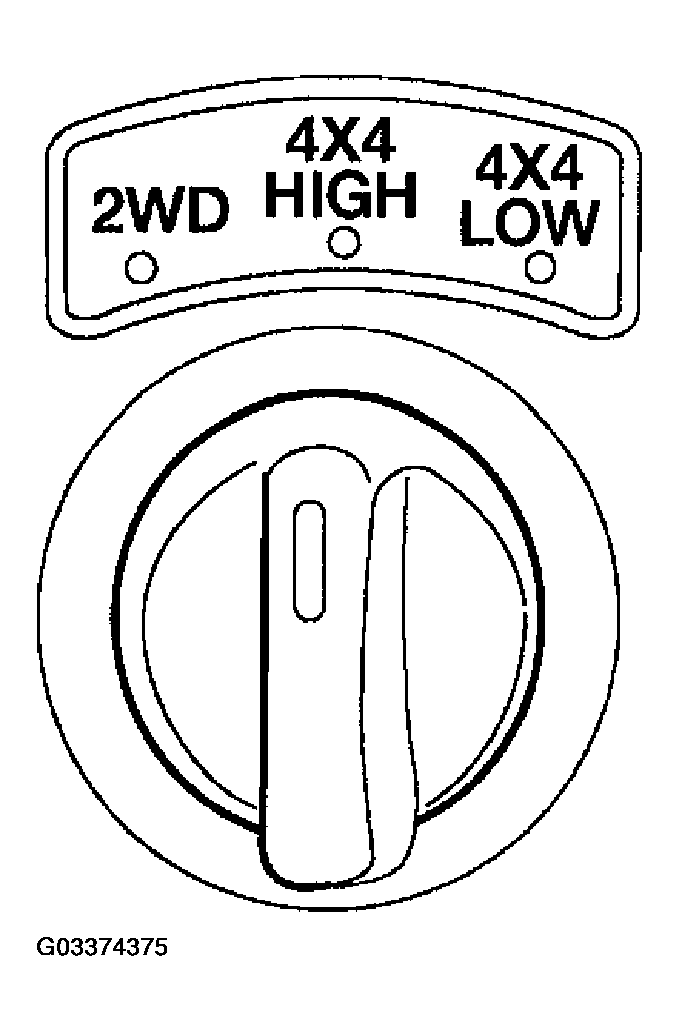

Fig 1: Setting Mode Select Switch to 4X4 High Position

Courtesy of MAZDA MOTORS CORP.

1. Set the mode select switch to the 4X4 HIGH position.
2. Raise and support the vehicle; see LIFTING .

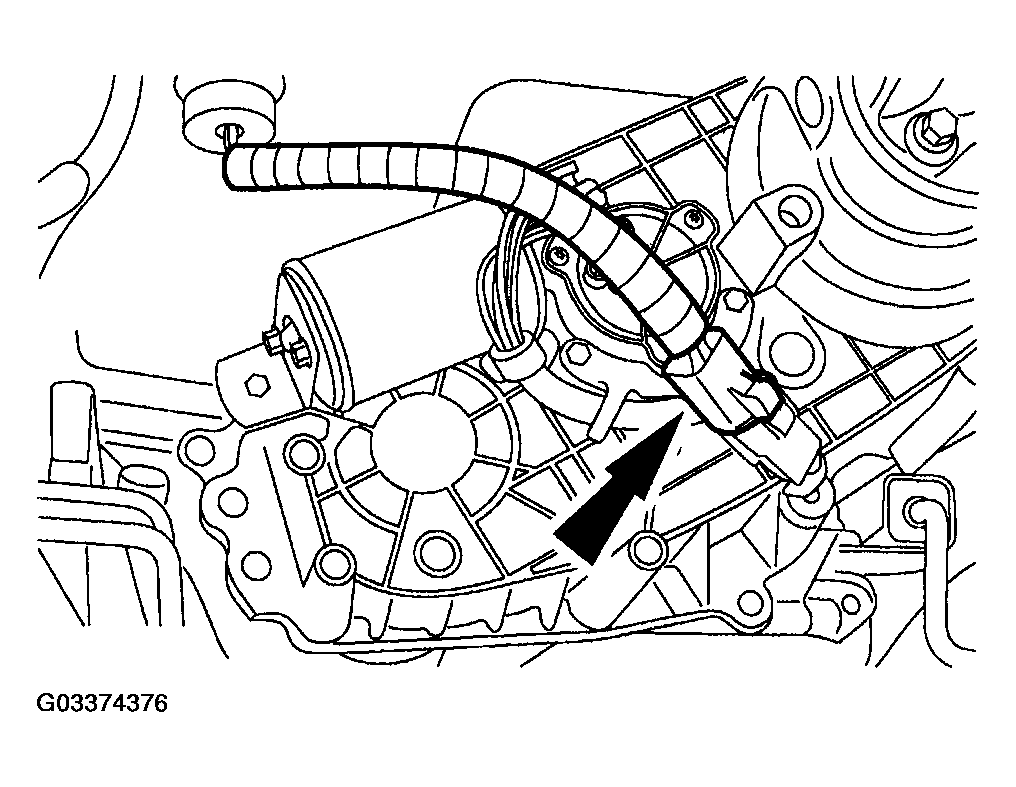

   Fig 2: Disconnecting Gearmotor Encoder Assembly Harness Connector

   Courtesy of MAZDA MOTORS CORP.
3. Disconnect the gearmotor encoder assembly harness connector.

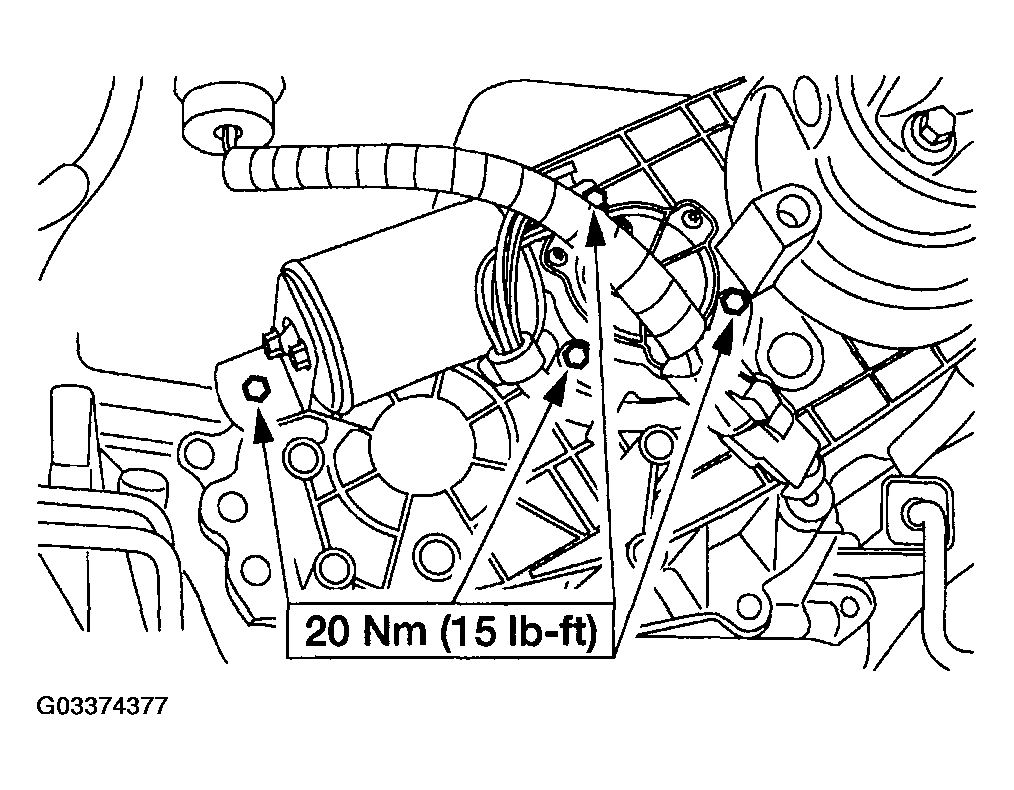

   Fig 3: Removing Gearmotor Encoder Assembly

   Courtesy of MAZDA MOTORS CORP.
4. Remove the bracket bolt and the gearmotor encoder assembly mounting bolts and remove the gearmotor encoder assembly.
5. Remove the grease from the motor adaptor and check for any nicks or burrs. If any damage is found, repair or install a new gearmotor encoder assembly as necessary.
6. Install in reverse order of removal.
   1. Apply a coat of multi-purpose grease to the gearmotor encoder assembly.
