Hood Switch Removal/Installation

  1. Remove in the order shown in the figure.
    1. Electrical connector
    2. Hood switch mounting screw
    3. Hood switch

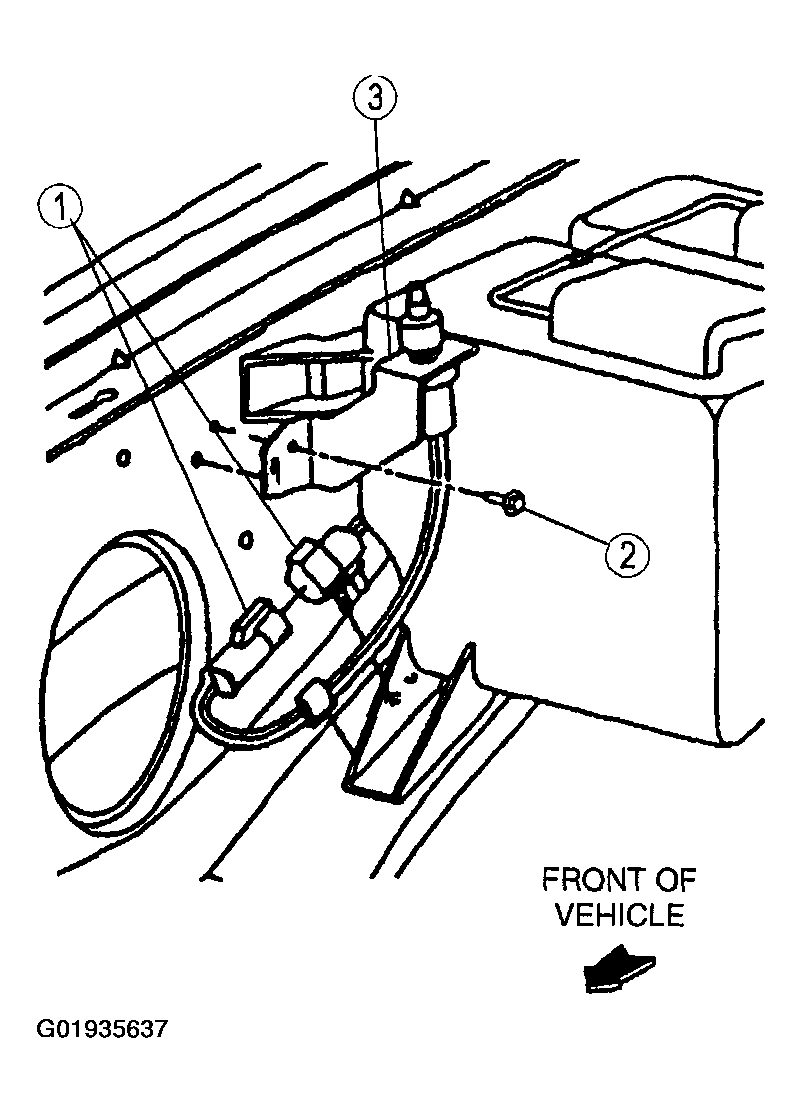

    Fig 1: Removing/Installing Hood Switch
    G01935637Courtesy of MAZDA MOTORS CORP.
  2. Install in reverse order of removal.
    NOTE:
    • Make sure hood switch bracket is firmly seated when driving mounting screw to retain switch.
