Tailgate Latch Removal/Installation

Lower and support the tailgate.
Remove the tailgate access cover.
Open the tailgate lock rod retainer.
Disconnect the tailgate lock rod (1) from the tailgate lock remote control (2).

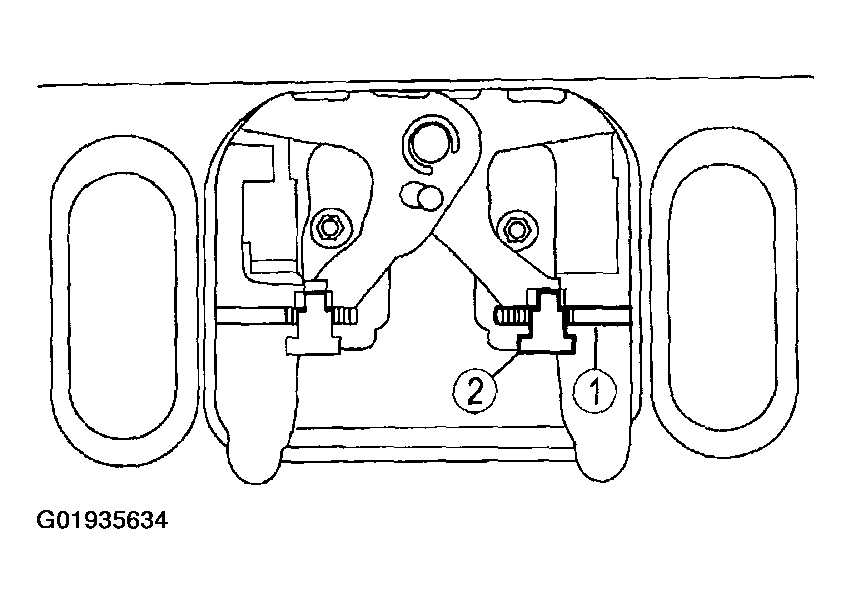

Fig 1: Disconnecting Tailgate Lock Rod From Tailgate Lock Remote Control
Courtesy of MAZDA MOTORS CORP.
Disconnect the tailgate support cables from the tailgate strikers.
Remove the tailgate lock.
1. Remove the bolts.
2. Remove the tailgate lock and lock rod.
Fig 2: Disconnecting Tailgate Support Cables From Tailgate Strikers
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Prior to installation, remove the slack in the tailgate lock release link by pulling the tailgate lock release link to the center of the tailgate. Close the tailgate lock rod retainer over the thread of the tailgate lock release link.
Install in reverse order of removal.
1. Tightening torque
  1. Tailgate access cover screws
  2. 4.5 - 6.3 N.m (46 - 64 kgf.cm, 40 - 56 in.lbf)
  3. Tailgate lock bolts
  4. 25.5 - 34.5 N.m (2.7 - 3.6 kgf-m, 19-25 ft-lbf)
