DTC Index-Power Windows

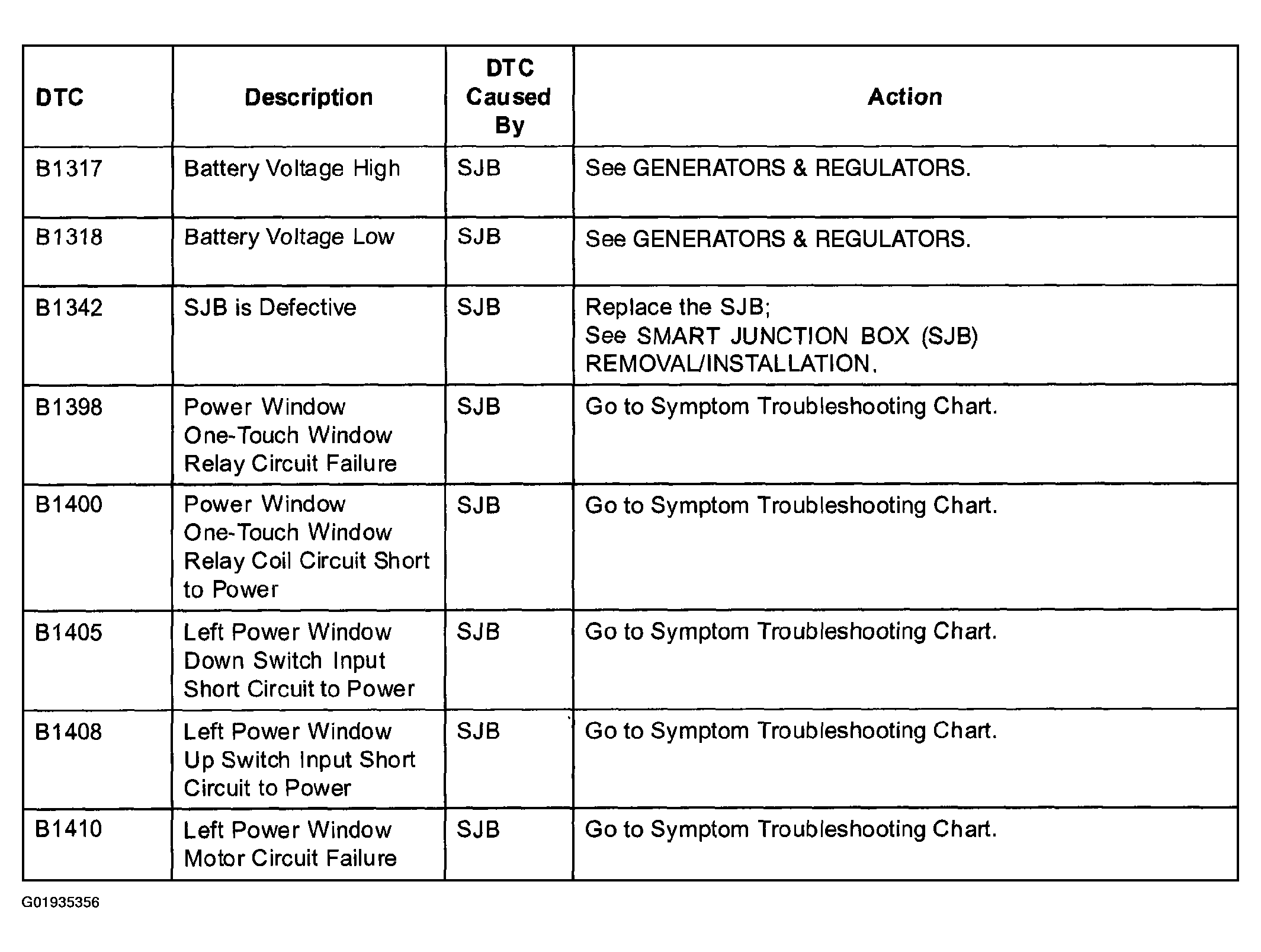

Fig 1: Power Window DTC Index (B1317-B1410)

Courtesy of MAZDA MOTORS CORP.

DTC LIST

DTC	Description
B1398	Power Window One-Touch Window Relay Circuit Failure
B1400	Power Window One-Touch Window Relay Coil Circuit Short to Power
B1405	Left Power Window Down Switch Input Short Circuit to Power
B1408	Left Power Window Up Switch Input Short Circuit to Power
B1410	Left Power Window Motor Circuit Failure
