Speed Sensor, Front (4X2) Removal/Installation

Raise and support the vehicle; see JACKING , .
Disconnect the front anti-lock brake sensor wire from the vehicle frame.
1. Disconnect the electrical connector.
2. Unclip the front anti-lock brake sensor wire from the vehicle frame.

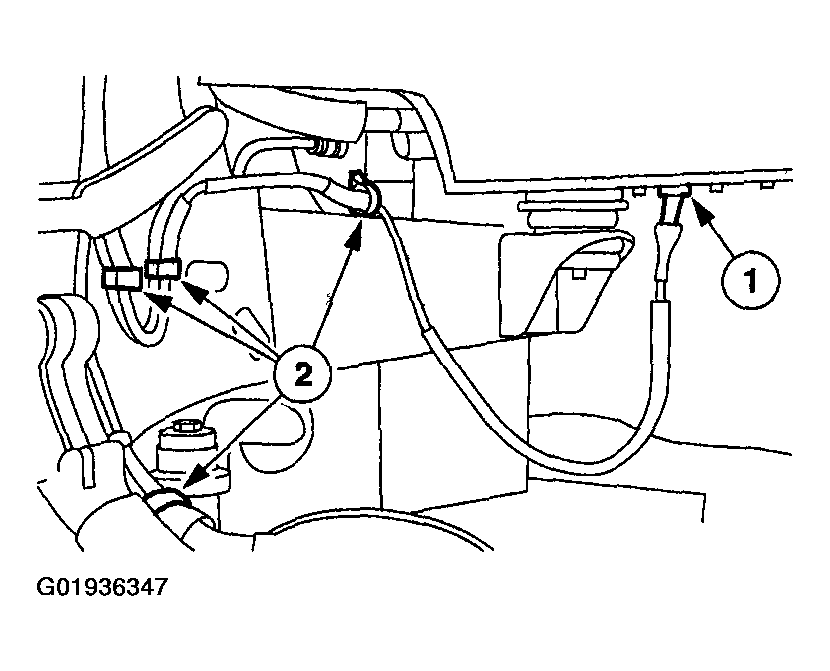

Fig 1: Disconnecting Front Anti-Lock Brake Sensor Wire From Vehicle Frame
Courtesy of MAZDA MOTORS CORP.
Remove the bolt and speed sensor.
1. Tightening torque
  1. 11-13 N.m (1.1-1.3 kgf.m, 9-10 ft.lbf)

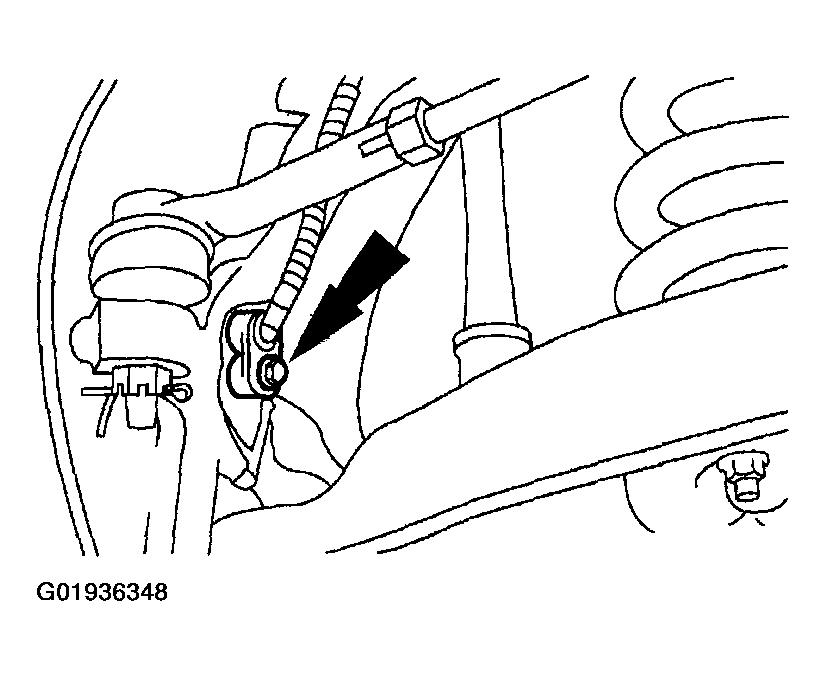

Fig 2: Installing Bolt And Speed Sensor
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Plug the sensor mount opening and thoroughly clean the mounting surface. Apply grease.
Install in reverse order of removal.
