Speed Sensor, Front (4X4) Removal/Installation

Remove disc plate shield; see DISC BRAKE FRONT, REMOVAL/INSTALLATION , .
Disconnect the front speed sensor connector.

Fig 1: Disconnecting Front Speed Sensor Connector
Courtesy of MAZDA MOTORS CORP.
Unclip the wire from the vehicle frame.

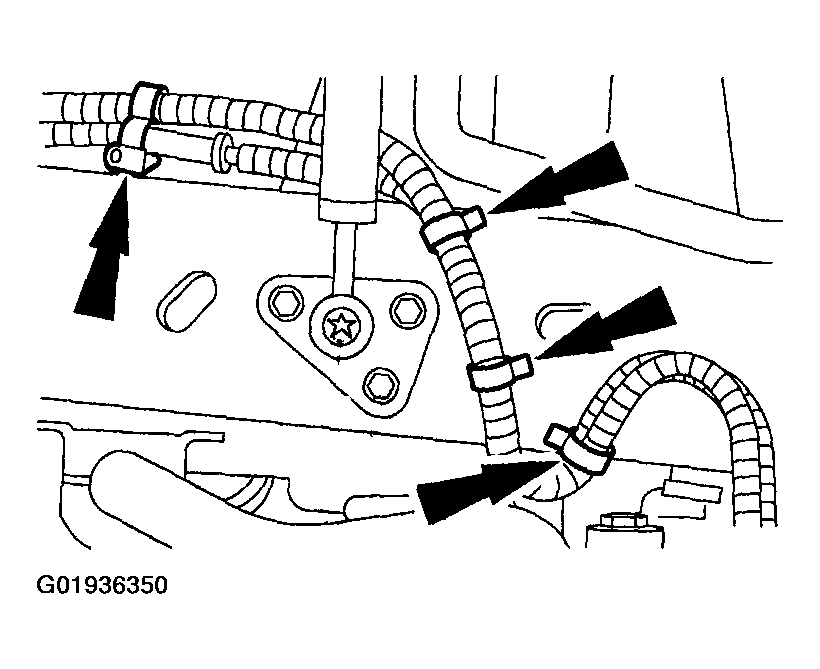

Fig 2: Unclipping Wire From Vehicle Frame
Courtesy of MAZDA MOTORS CORP.
Remove the bolt (1) and front speed sensor (2).
1. Tightening torque
  1. 7-9 N.m (71-92 kgf.cm, 63-79 in.lbf)

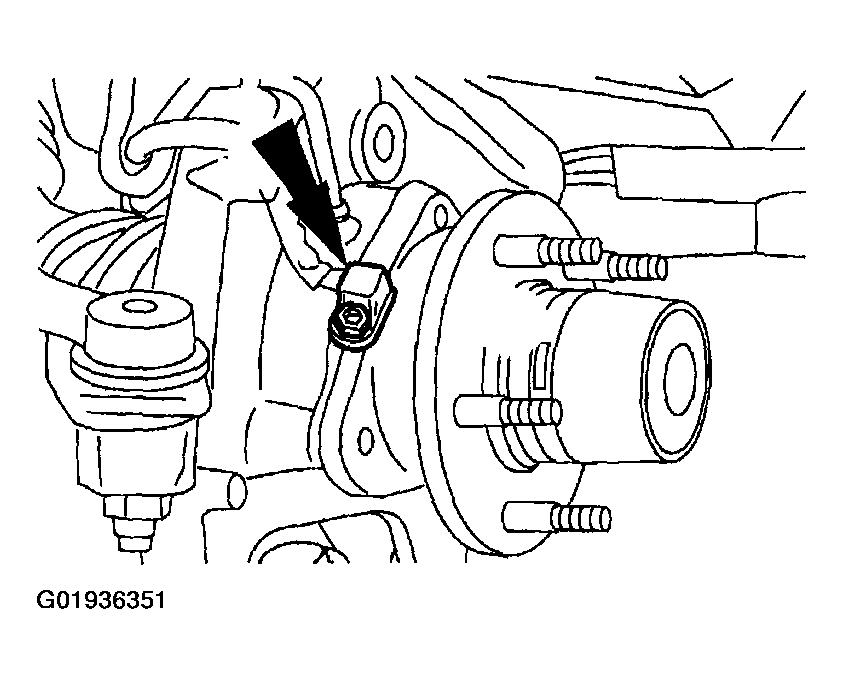

Fig 3: Removing Front Speed Sensor Bolt
Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal.
