Fuel Tank Pressure Sensor Removal/Installation
- Raise the vehicle on a hoist.

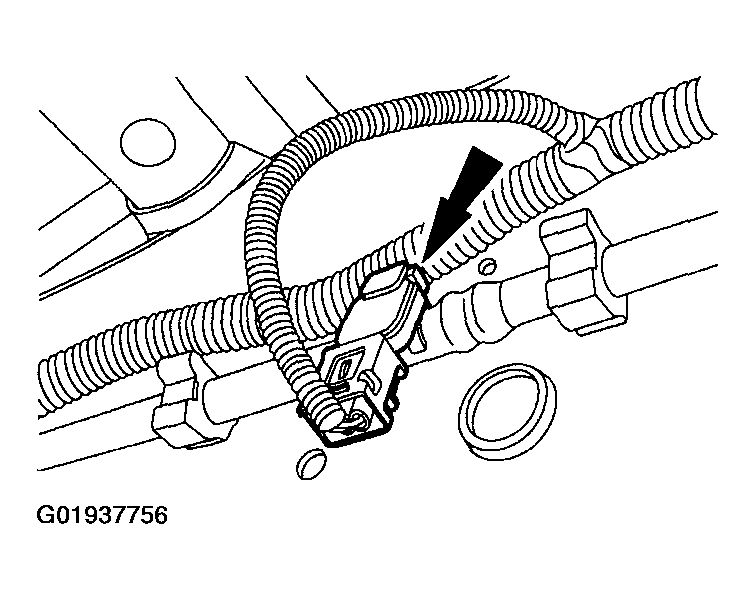

- Disconnect the electrical connector.
Courtesy of MAZDA MOTORS CORP.
NOTE:
- A new vapor line assembly must be installed for a new pressure sensor to be installed.
- Remove the fuel tank pressure sensor and fuel line assembly.
- Install in reverse order of removal.
- Perform Leak Test. See EVAPORATIVE EMISSION SYSTEM LEAK TEST
.
- Perform the Evaporative Emission Running Loss Monitor Repair Verification Drive Cycle Test. See DRIVE CYCLES
.
