Symptom Troubleshooting Chart - Automatic Transmission External Controls: Notes

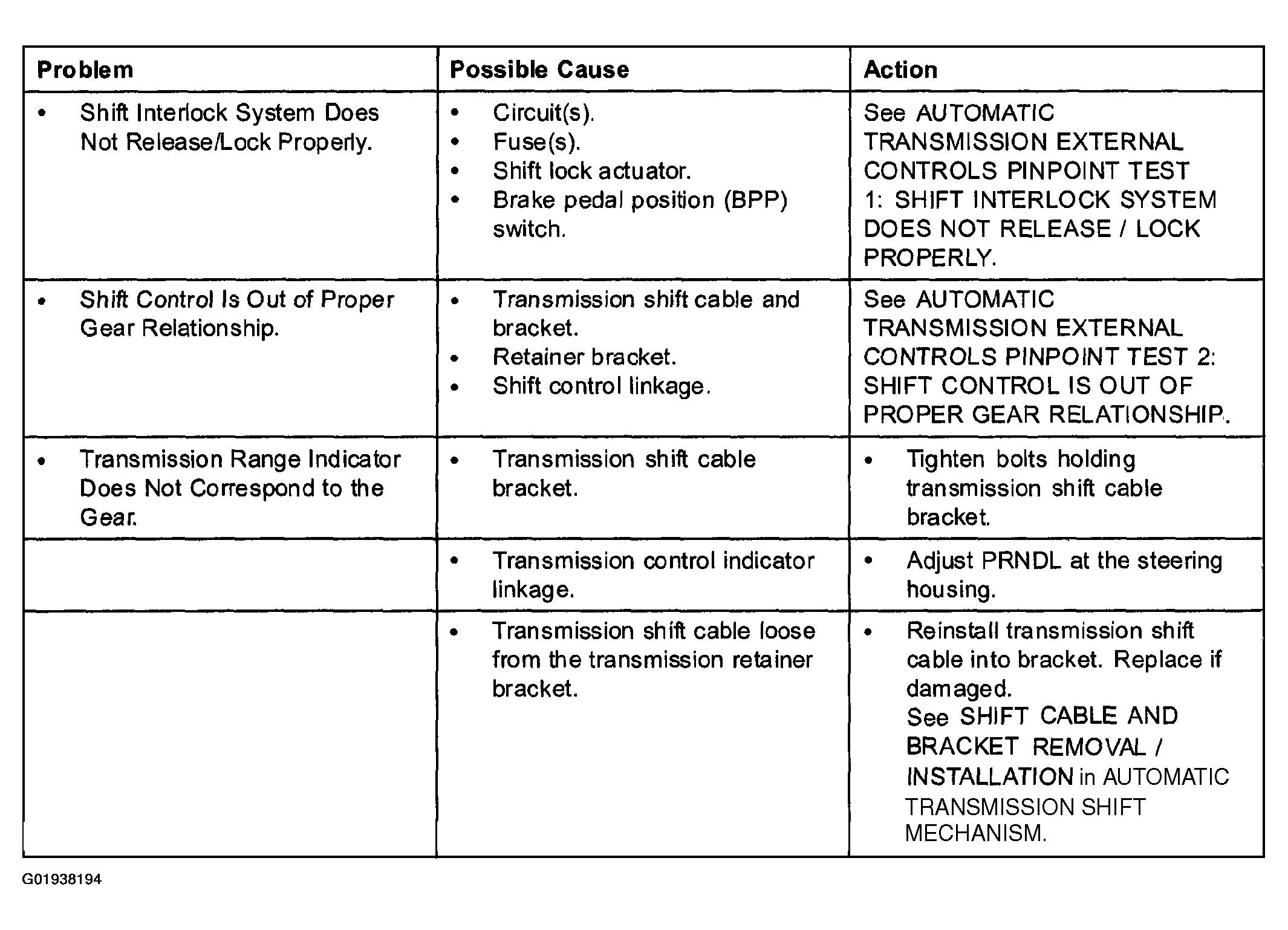

Fig 1: Symptom Troubleshooting Chart - Automatic Transmission External Controls (1 Of 2)
G01938194Courtesy of MAZDA MOTORS CORP.

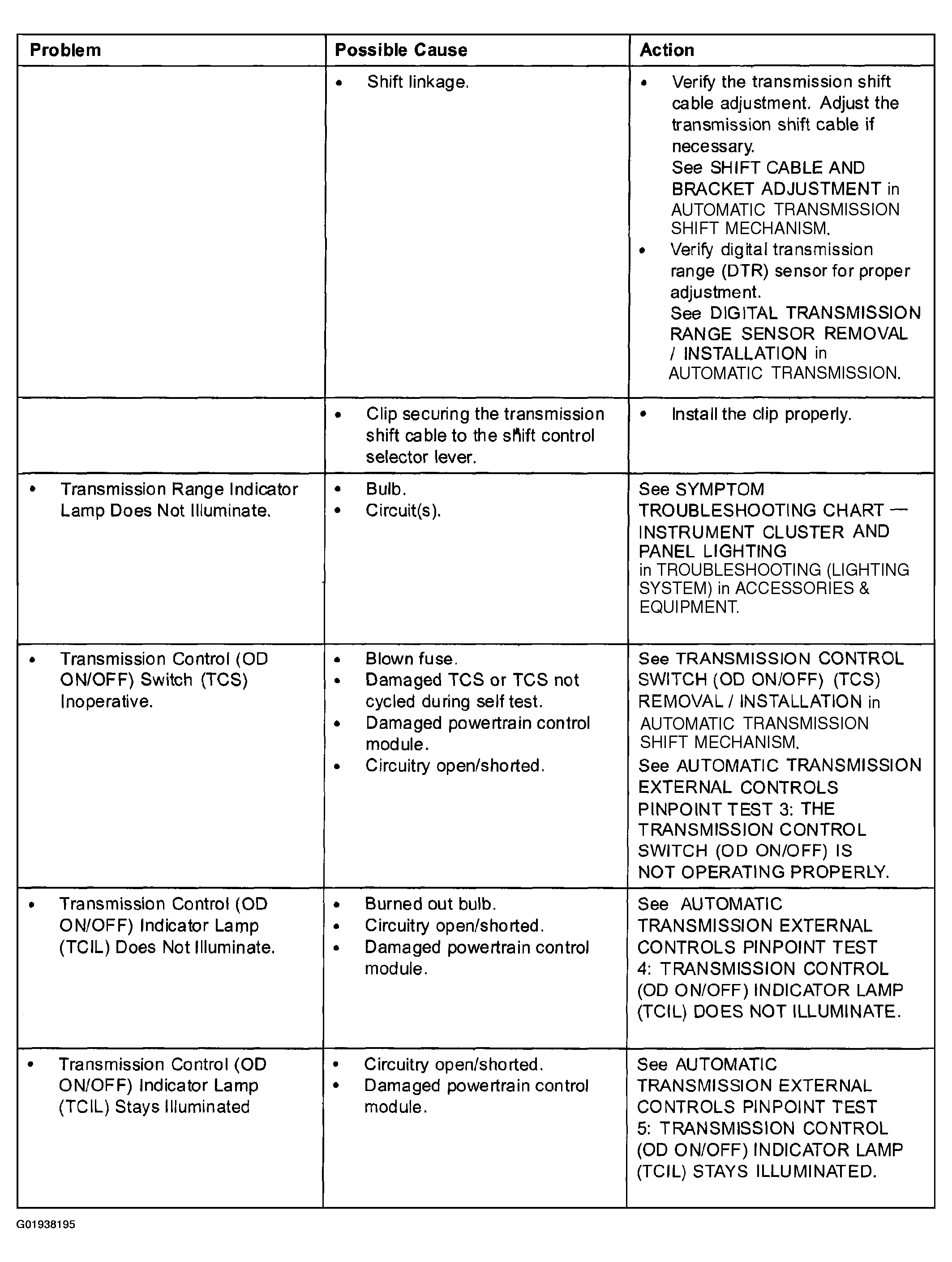

Fig 2: Symptom Troubleshooting Chart - Automatic Transmission External Controls (2 Of 2)
G01938195Courtesy of MAZDA MOTORS CORP.
