Checking Order

NOTE:
  • When inspecting more than two check codes, perform the inspection by following the priority order of inspection indicated in the chart. See Fig 1.

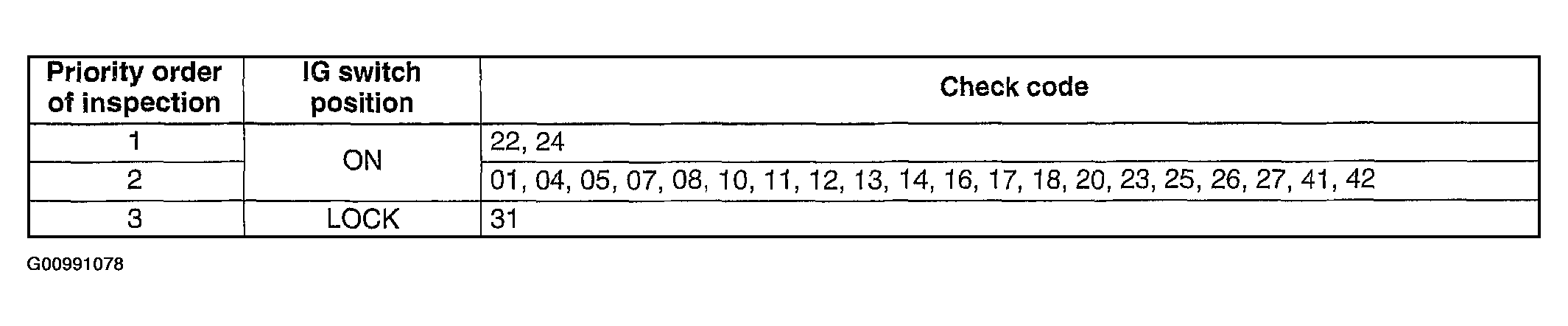

Fig 1: DTC Checking Priority Table
G00991078Courtesy of MAZDA MOTORS CORP.
