Dynamic Chamber Installation Note

  1. Tighten the dynamic chamber installation bolts in the order indicated.

    Tightening torque

    8-12 N.m {82-122 kgf.cm, 72-105 in.lbf}

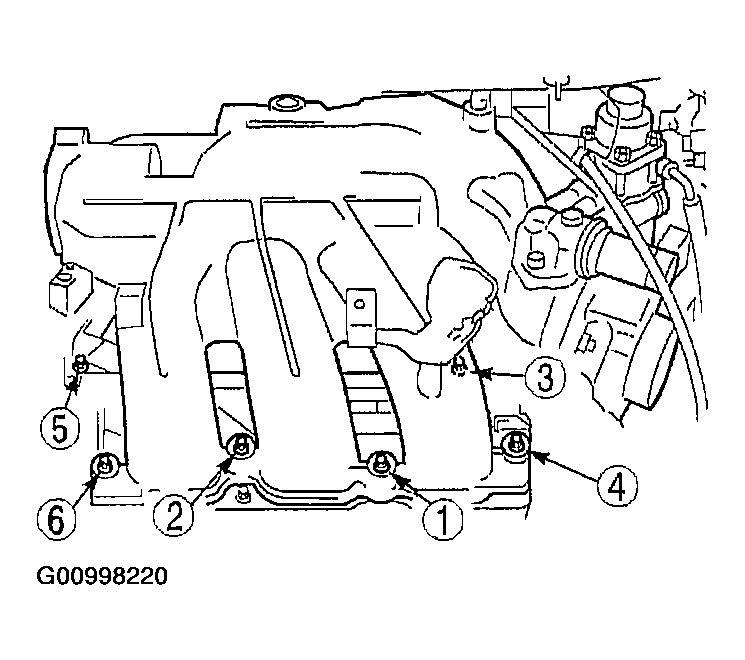

    Fig 1: Tightening Sequence Order Of Dynamic Chamber Bolts
    G00998220Courtesy of MAZDA MOTORS CORP.
