Intake Manifold Installation Note

Tighten the intake manifold installation bolts in the order indicated.
Tightening torque

8-12 N.m {82-122 kgf.cm, 72-105 in.lbf}

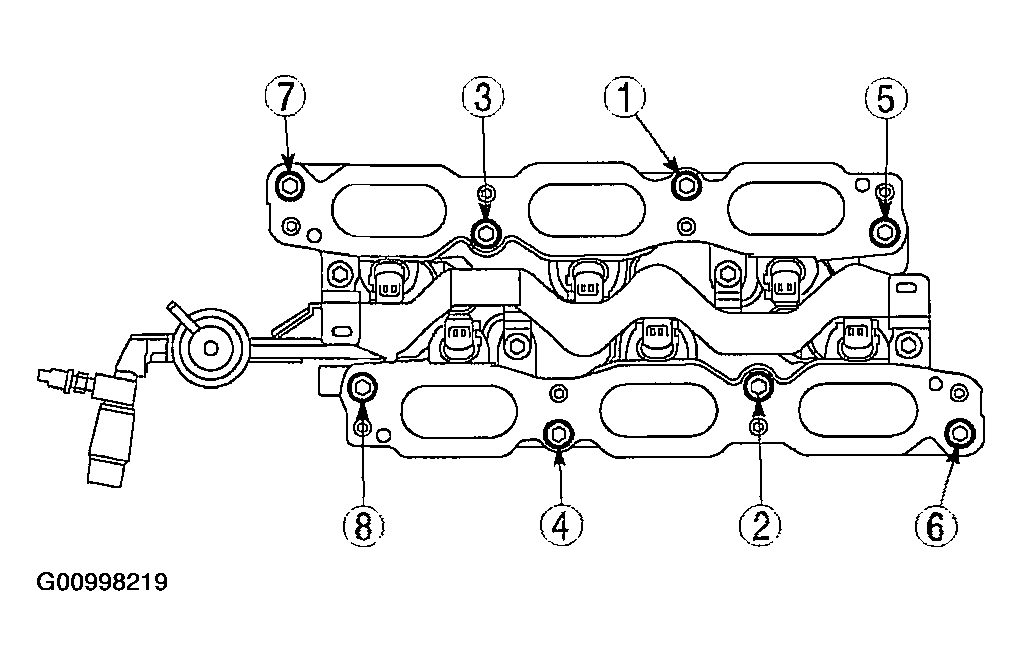

Fig 1: Tightening Sequence Order Of Intake Manifold Bolts
Courtesy of MAZDA MOTORS CORP.
