No. 3 Will Not Crank
>>
Diagnostic Procedure
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Procedure

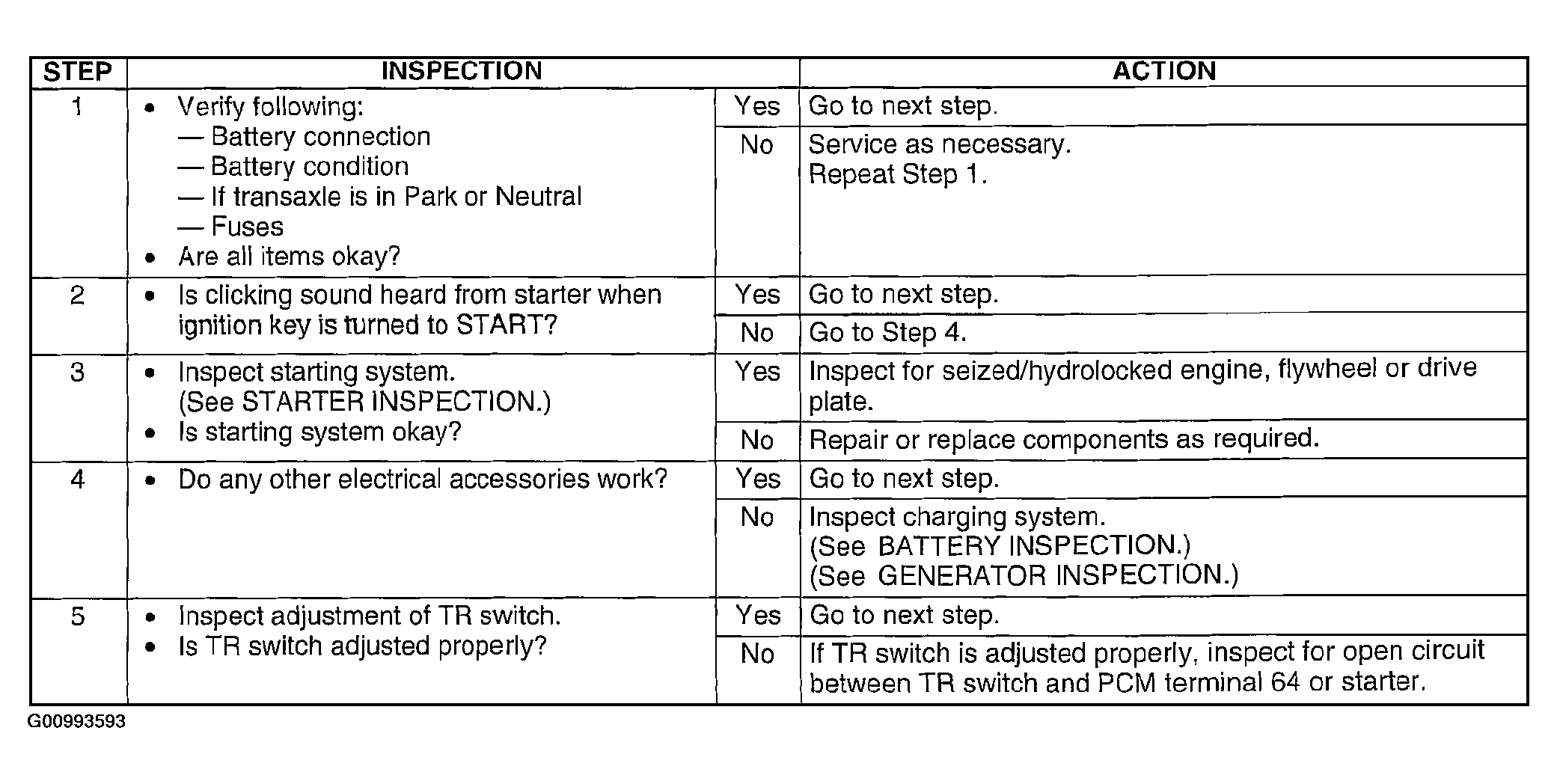

Fig 1: Symptom No. 3 Diagnostic Procedure Chart (Step 1-5)
Courtesy of MAZDA MOTORS CORP.

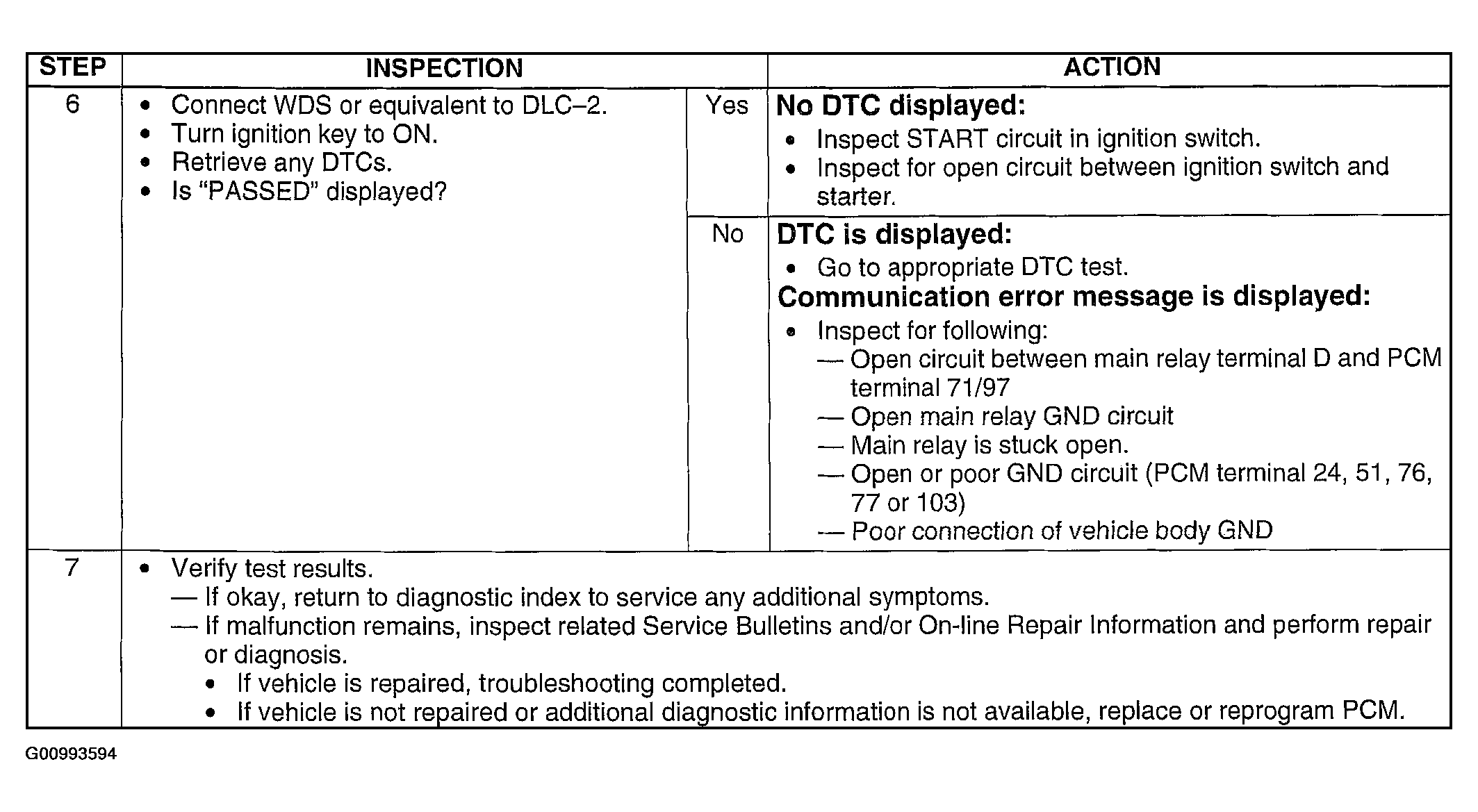

Fig 2: Symptom No. 3 Diagnostic Procedure Chart (Step 6-7)
Courtesy of MAZDA MOTORS CORP.
